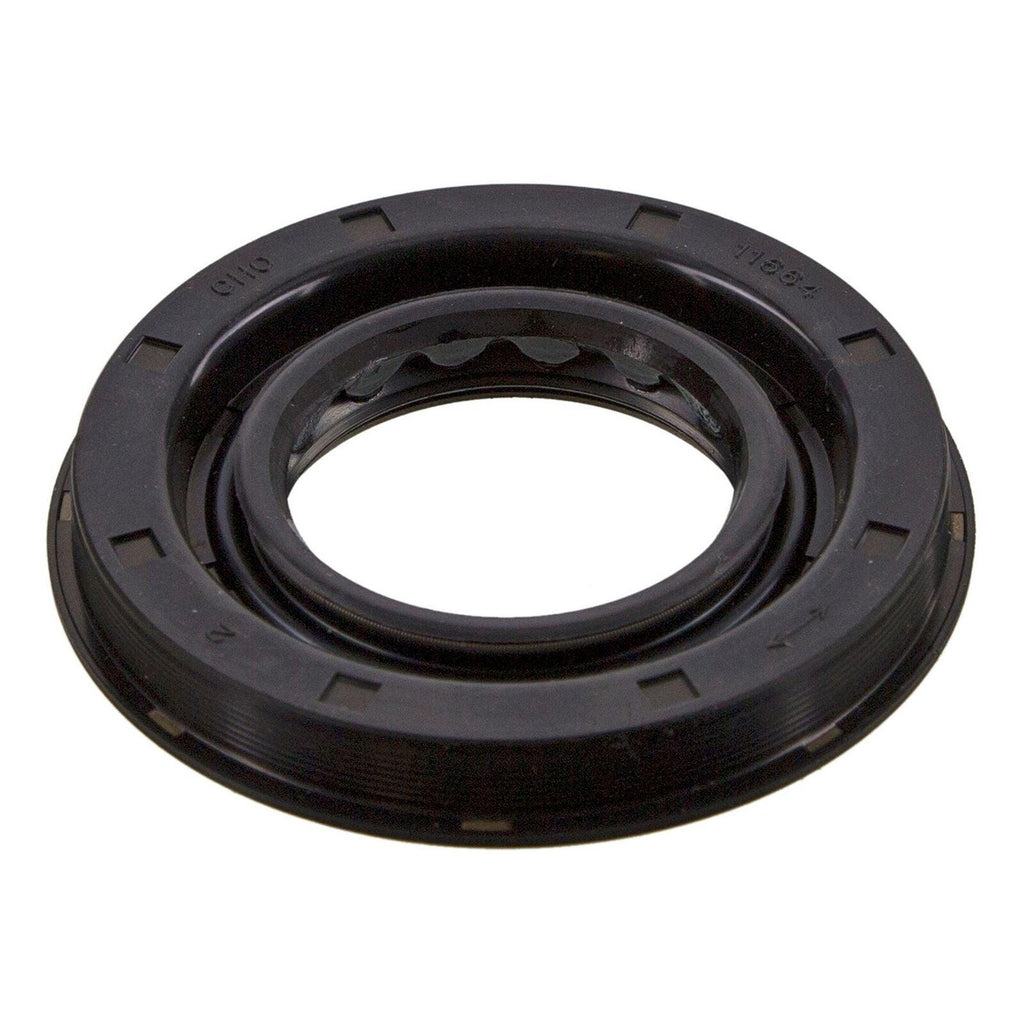

Transfer Case Output Shaft Seal for Journey, Pacifica, Sebring, Avenger 711116

Fitment Chart:

Years	Make	Model	Drive Type	Notes
2009-2017	Dodge	Journey	AWD	Full Time 4WD; with Borg-Warner ITM 3e Transfer Case; 1 Speed
2008	Chrysler	Sebring	AWD	Full Time 4WD; with Borg-Warner ITM 3e Transfer Case; 1 Speed
2008	Dodge	Avenger	AWD	Full Time 4WD; with Borg-Warner ITM 3e Transfer Case; 1 Speed
2004-2008	Chrysler	Pacifica	AWD	Full Time 4WD; with Borg-Warner ITM 3e Transfer Case; 1 Speed

Specifications:

Part Category: Transfer Case Output Shaft Seal
Brand: National
Manufacturer Part Number: 711116
Vehicle Position: Front
Placement on Vehicle: Front
Product Type: Factory Replacement
Type: Transfer Case Output Shaft Seal
Number of Pieces: 1
Flanged Outside Diameter (Inch): 3.150
Flanged Outside Diameter (MM): 80.000
Helix Type: Bi-directional lip design
Housing Bore (Inch): 2.953
Housing Bore (MM): 75.000
Material: Polyacrylate
Outside Diameter (Inch): 2.961
Outside Diameter (mm): 75.200
Overall Width with Side Lip (MM): 13.000
Overall Width with Side Lip (Inch): 0.512
Part Description: Oil seal
Series: 711100
Shaft (Inch): 1.575
Shaft (MM): 40.000
Type: #
Unit of Dimension: Metric
Width (Inch): 0.315
Width (mm): 8.000
Interchange Part Number: 05134903AA 05134903AB 5134903AA 5134903AB
