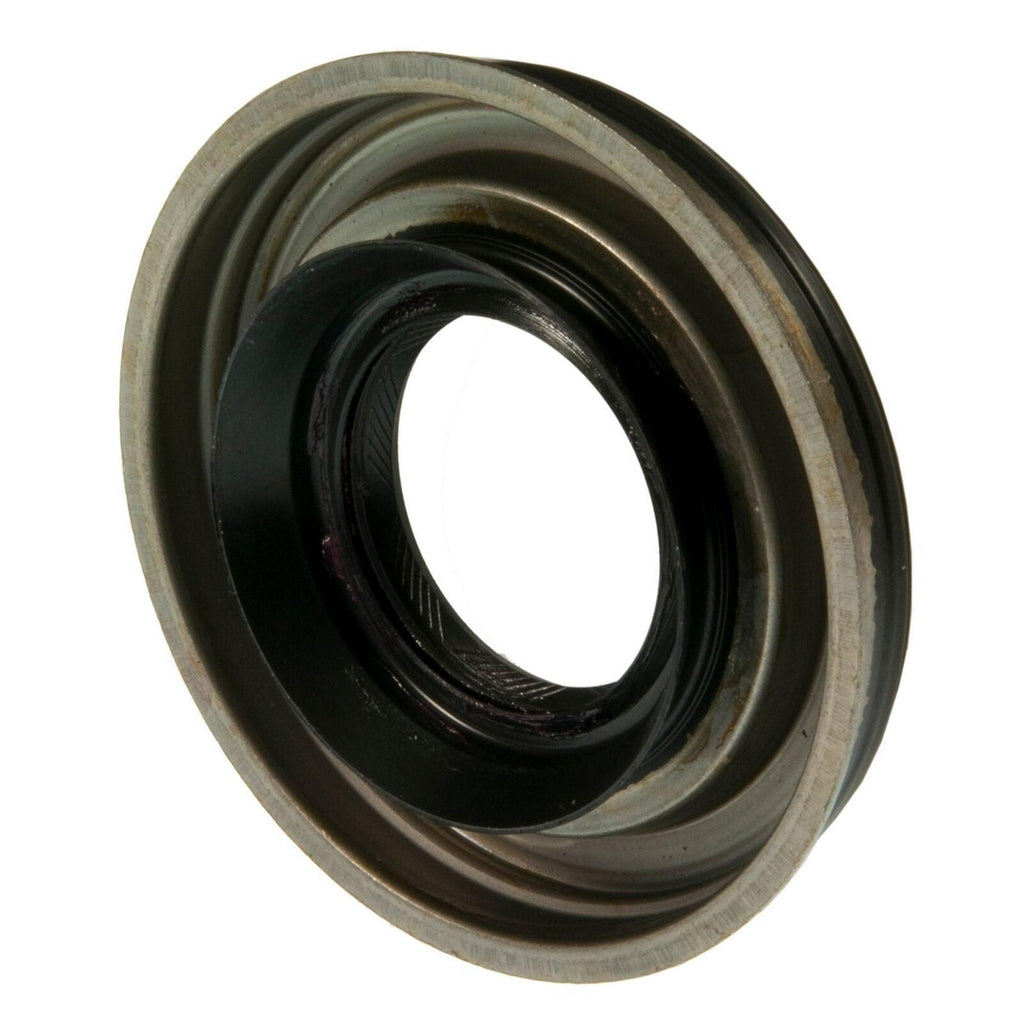

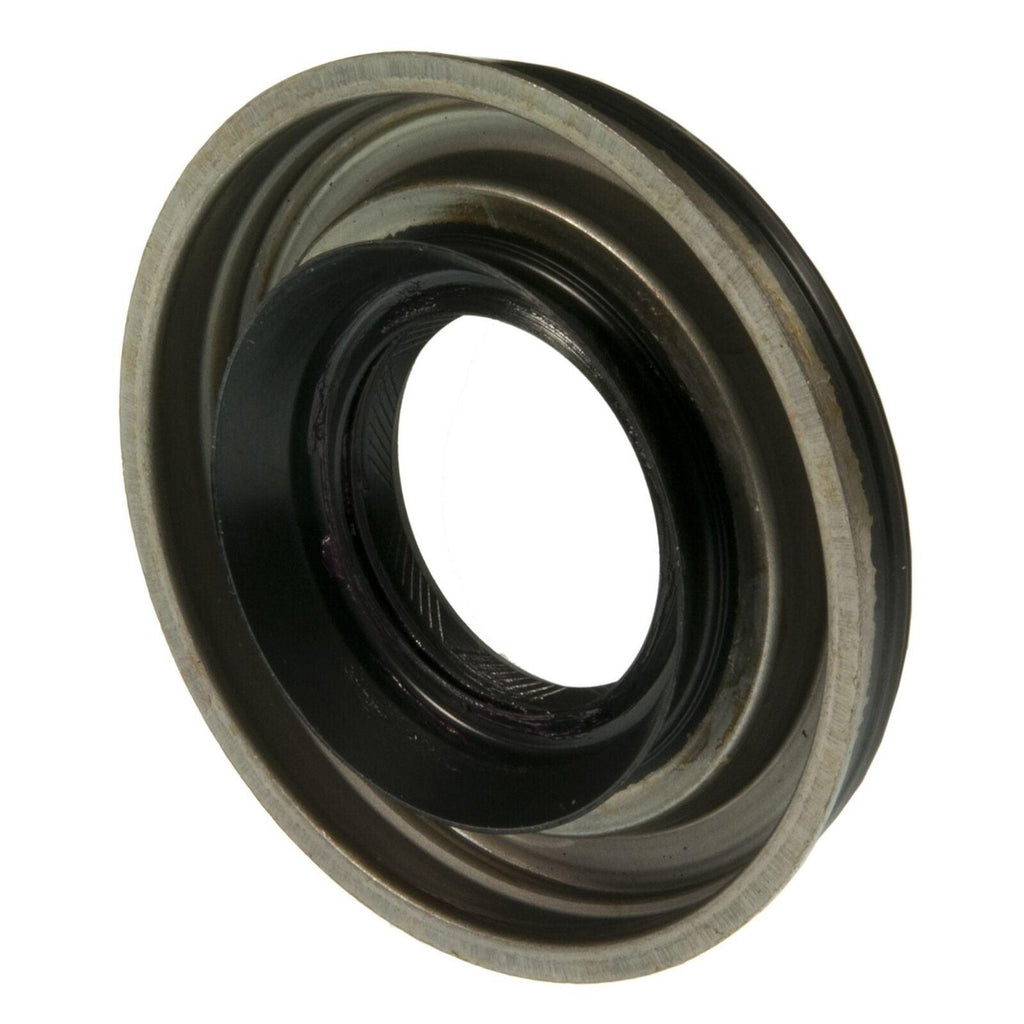

Transfer Case Output Shaft Seal for Equinox, Torrent, Liberty, Vue+More 710662

Fitment Chart:

Years	Make	Model	Drive Type	Notes
2006-2009	Pontiac	Torrent	AWD	Full Time 4WD; with New Process 900 Transfer Case; 1 Speed
2005-2009	Chevrolet	Equinox	AWD	Full Time 4WD; with New Process 900 Transfer Case; 1 Speed
2004-2007	Jeep	Liberty	4WD	Full Time 4WD; with New Process 242J Transfer Case; 2 Speed
2002-2003	Jeep	Liberty	4WD	Full Time 4WD; with New Process 242J Transfer Case; 36.77 (mm) Shaft; 2 Speed
2002-2007	Jeep	Liberty	4WD	with New Process 231J Transfer Case; with Part Time 4WD; 2 Speed
2002-2006	Jeep	TJ	4WD	with New Process 231J Transfer Case; with Part Time 4WD; 2 Speed
2002-2006	Jeep	Wrangler	4WD	with New Process 231J Transfer Case; with Part Time 4WD; 2 Speed
2002-2007	Saturn	Vue	AWD	Full Time 4WD; with New Process 900 Transfer Case; 1 Speed

Specifications:

Part Category: Transfer Case Output Shaft Seal
Brand: National
Manufacturer Part Number: 710662
Vehicle Position: Rear
Placement on Vehicle: Rear
Product Type: Factory Replacement
Type: Transfer Case Output Shaft Seal
Number of Pieces: 1
Inside Diameter: 1.457
Inside Diameter: 37.000
Thickness: 0.433
Thickness: 11.000
Outside Diameter: 3.095
Outside Diameter: 78.600
Flanged Outside Diameter (Inch): 3.327
Flanged Outside Diameter (MM): 84.500

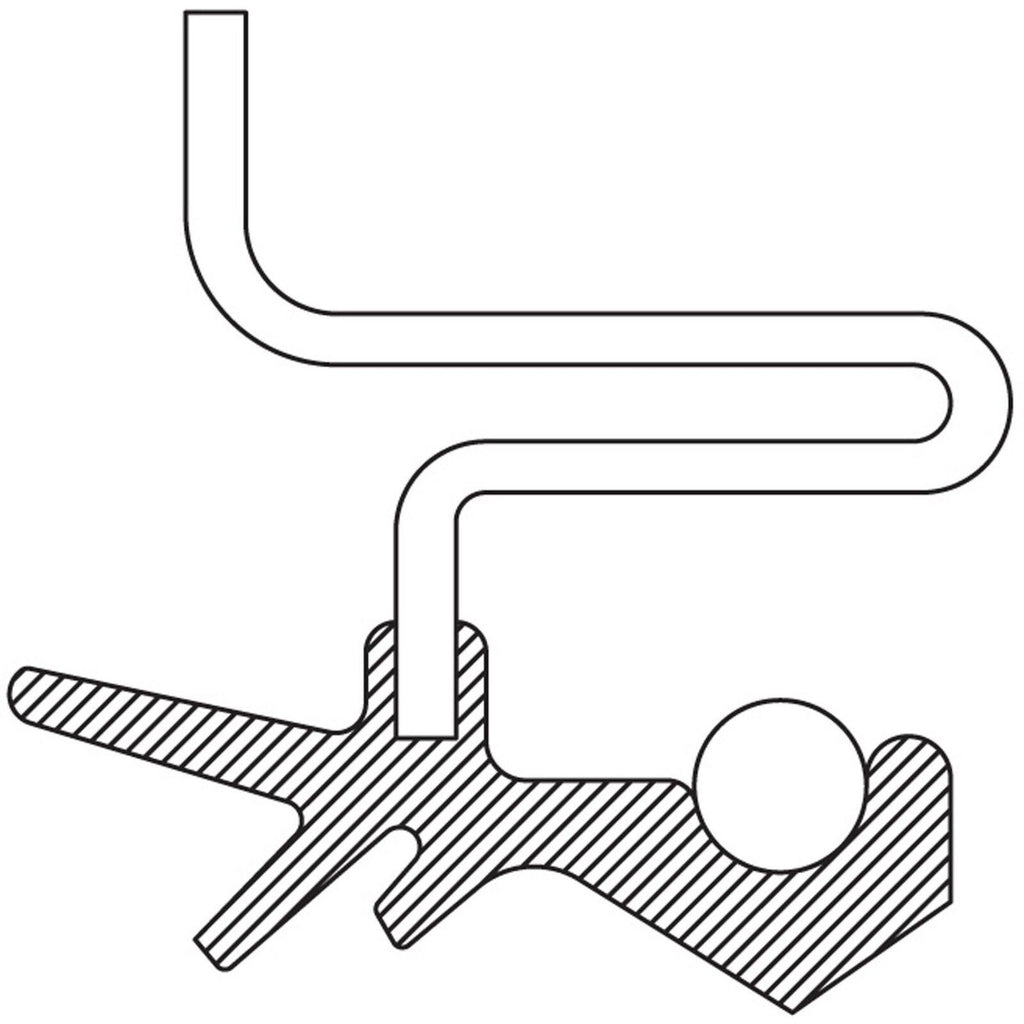

Helix Type: Bi-directional lip design
Housing Bore (Inch): 3.087
Housing Bore (MM): 78.400
Material: Fluoro-elastomer
Outside Diameter (Inch): 3.095
Outside Diameter (mm): 78.600
Overall Width with Side Lip (MM): 16.500
Overall Width with Side Lip (Inch): 0.650
Part Description: Oil seal
Sealing Material: Fluoro-elastomer
Series: 710600
Shaft (Inch): 1.457
Shaft (MM): 37.000
Type: 85
Unit of Dimension: Metric
Width (Inch): 0.433
Width (mm): 11.000
Interchange Part Number: 05072307AA 12569965 13627 5072307AA 710662
