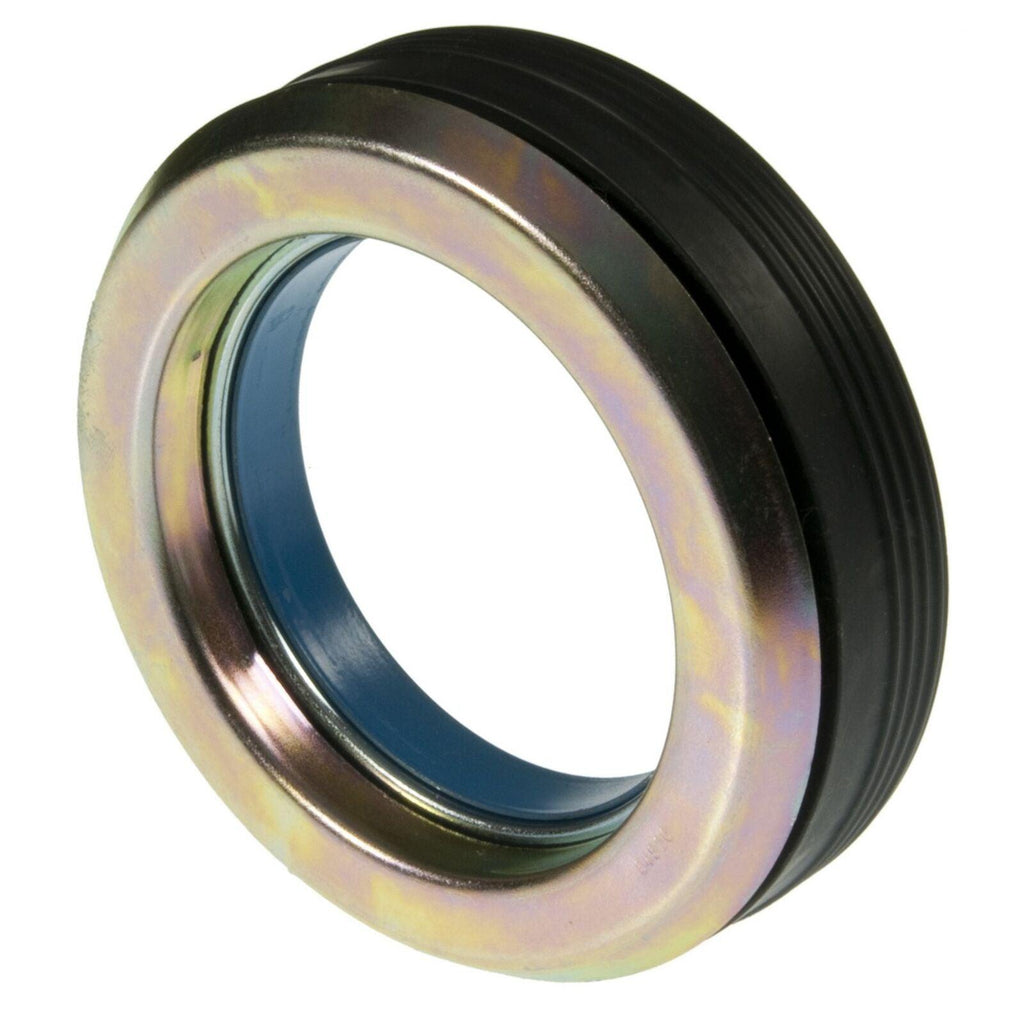

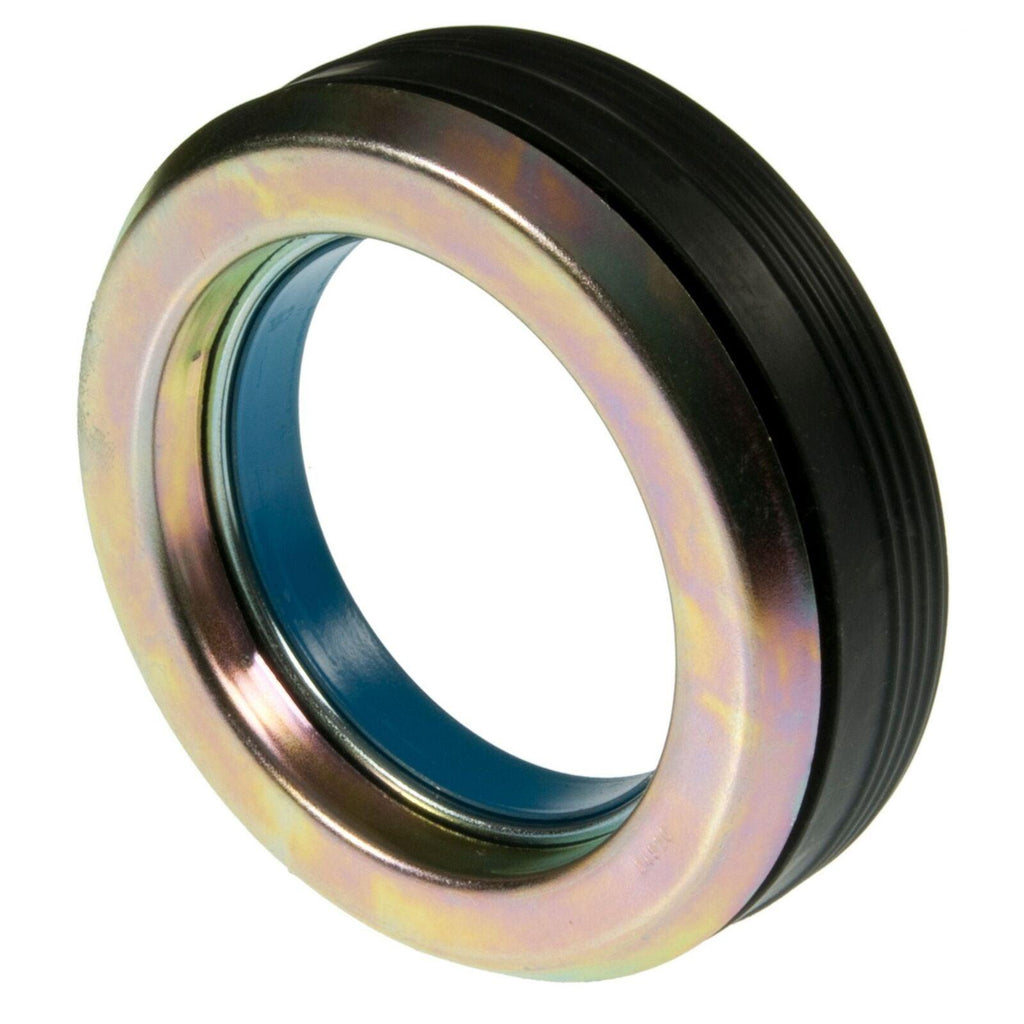

National Drive Axle Shaft Seal for Ford 710494

Fitment Chart:

Years	Make	Model	Drive Type	Notes
2003-2004	Ford	Excursion	4WD	OE Design; with 9 (in) Ring Gear; with Spicer 50 Axle; with Monobeam Axle
2003-2004	Ford	Excursion	4WD	OE Design; with 9.75 (in) Ring Gear; with Spicer 60 Axle; with Monobeam Axle
2003-2004	Ford	F-250 Super Duty	4WD	OE Design; with 9 (in) Ring Gear; with Spicer 50 Axle; with Monobeam Axle
2003-2004	Ford	F-350 Super Duty	4WD	OE Design; with 9 (in) Ring Gear; with Spicer 50 Axle; with Monobeam Axle

Specifications:

Part Category: Drive Axle Shaft Seal
Brand: National
Manufacturer Part Number: 710494
Vehicle Position: Front Outer
Placement on Vehicle: Front Outer
Product Type: Factory Replacement
Type: Drive Axle Shaft Seal
Number of Pieces: 1
Material: Polyacrylate
Inside Diameter: 2.874
Inside Diameter: 72.990
Thickness: 1.163
Thickness: 29.550
Outside Diameter: 113.550
Outside Diameter: 4.470
Flanged Outside Diameter (Inch): 0.827
Flanged Outside Diameter (MM): 21.000
Housing Bore (Inch): 4.448
Housing Bore (MM): 113.000
Outside Diameter (Inch): 4.470
Outside Diameter (mm): 113.550
Part Description: Oil seal
Series: 710400
Shaft (Inch): 2.874
Shaft (MM): 72.990
Type: #
Unit of Dimension: Inch
Width (Inch): 1.163
Width (mm): 29.550
Interchange Part Number: 28603 3C34-3254CA 3C3Z-3254CA 54520 710494
