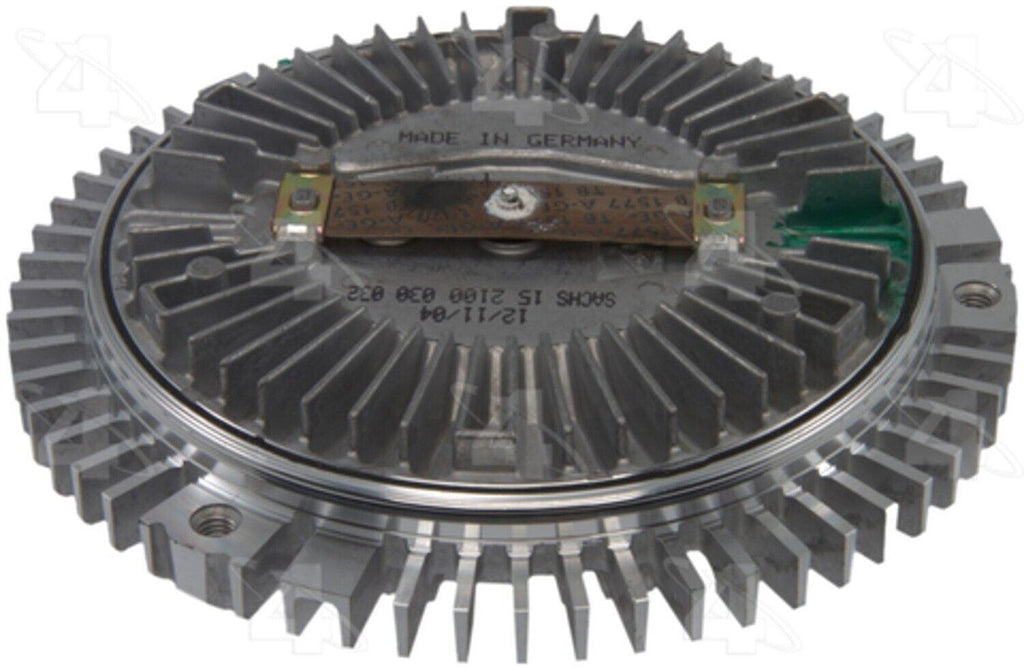

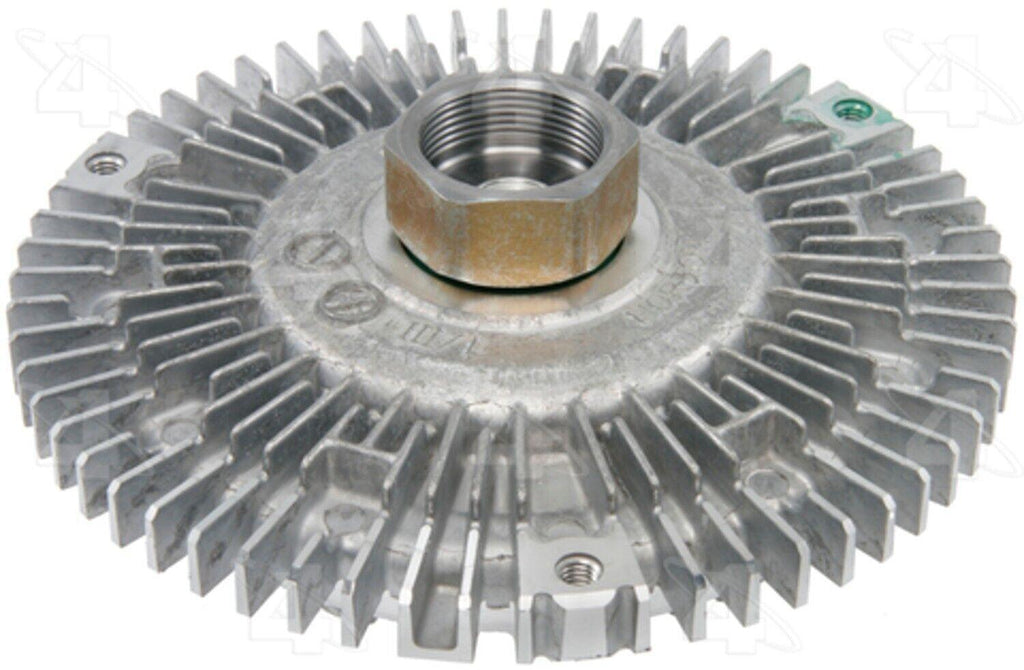

Hayden Engine Cooling Fan Clutch for ML350, ML320 2697

Fitment Chart:

Years	Make	Model	Notes
2003-2005	Mercedes-Benz	ML350	Reverse Rotation; Standard Duty Thermal Fan Clutch
1998-2003	Mercedes-Benz	ML320	Reverse Rotation; Standard Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2697
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 3
Mounting Hole Quantity: 3
Distance From Clutch To Mounting Flange: 1.41
Clutch Maximum Diameter: 6.3
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 3
Bolt Thread: M6 x 1.0 hole
Clutch Type: A - 5" & 6" import
Description: Fan clutches
Dia. IN: 6.3
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 5.79
Fan Bolt Circle MM: 147.1
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 160
Overall Height IN: 2.06
Overall Height MM: 52.3
Performance Rated?: Yes
Pilot Depth IN: 0.52
Pilot Depth MM: 13.2
Pilot Dia. IN: 1.18
Pilot Dia. MM: 30
Interchange Part Number: 11146012 1122000222 1300216 1540329 19190170 215133 22318 22325
Replaces Part Numbers: 2697 271614 376731491 46012 922424 9472070 A71614 CWK922424
Replacement Part Numbers: KG2697
Brand Label: Fan Clutch
