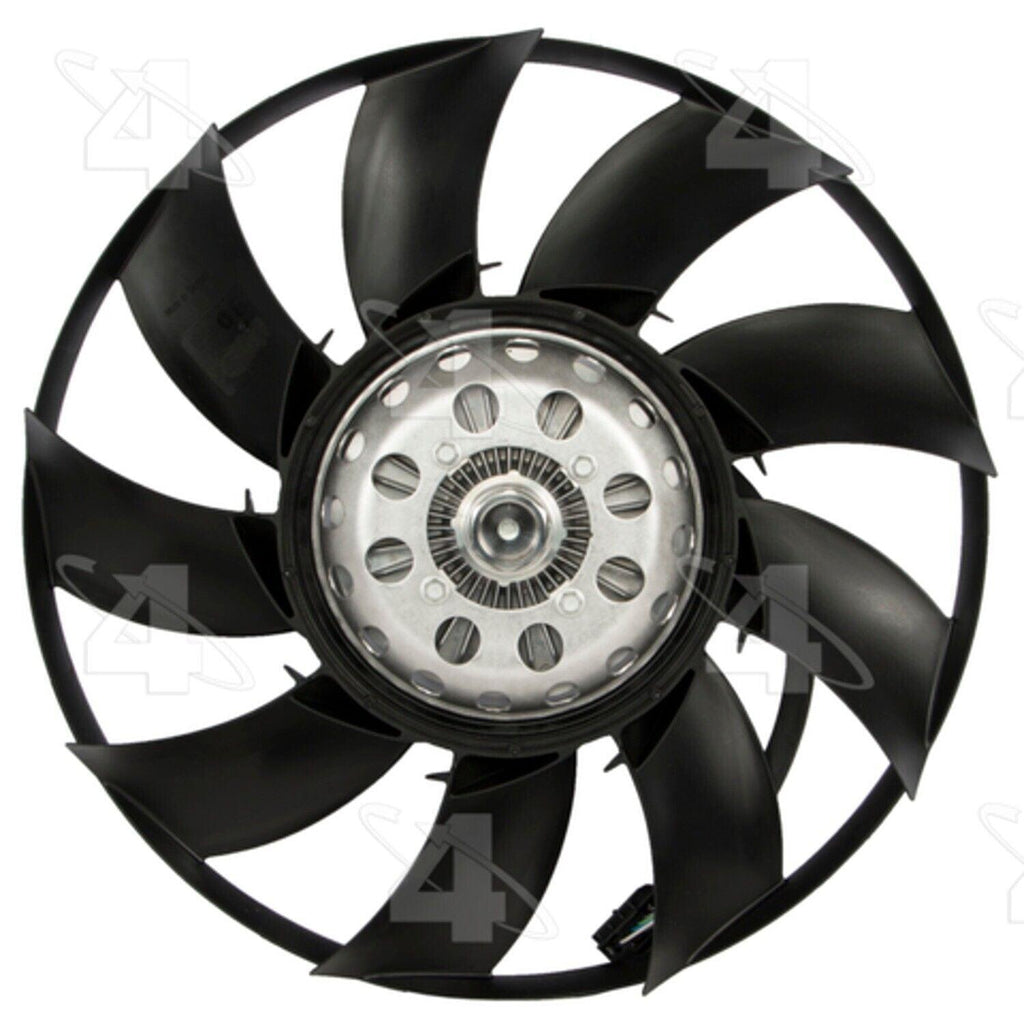

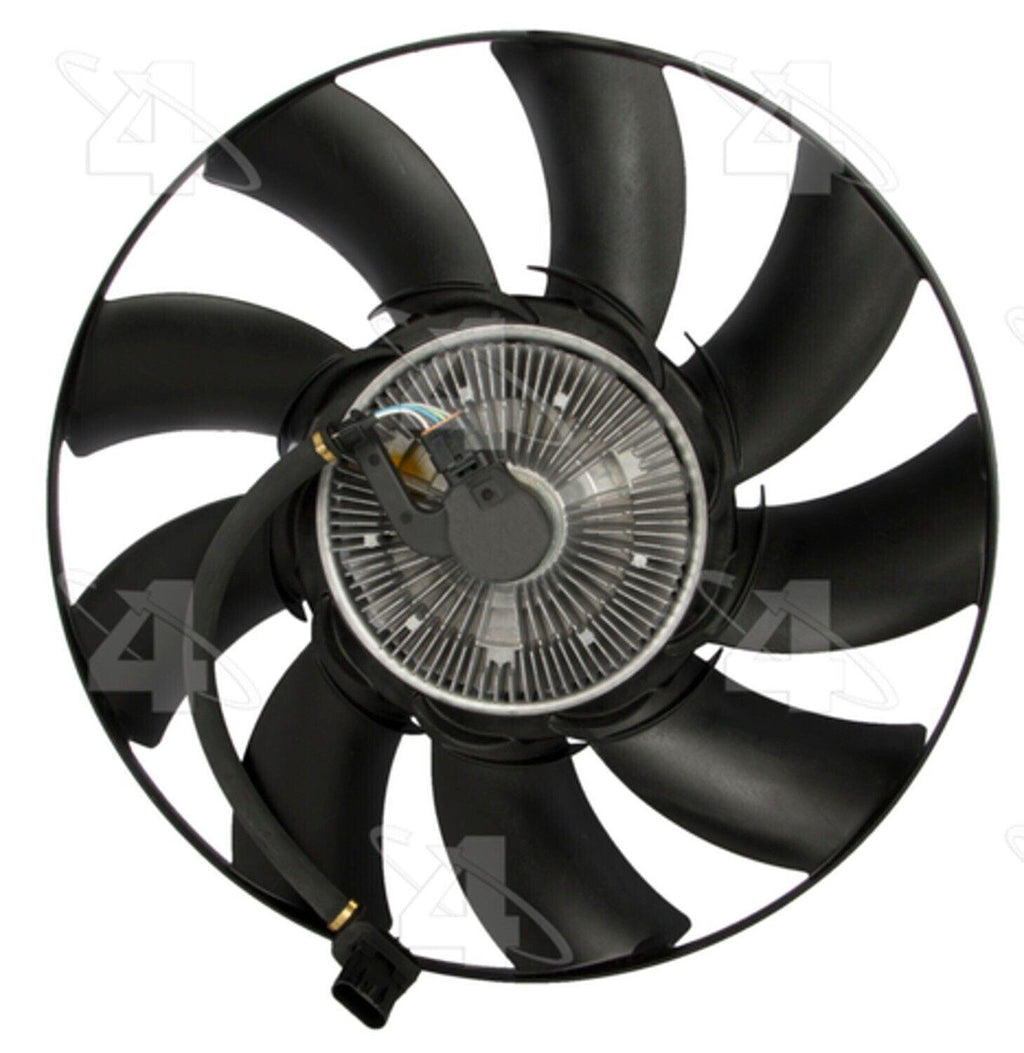

Hayden Engine Cooling Fan Clutch for LR3, Range Rover, Range Rover Sport 3300

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2006-2009	Land Rover	Range Rover	4.4L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2006-2009	Land Rover	Range Rover Sport	4.4L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2005-2009	Land Rover	LR3	4.4L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 3300
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Use Type: Electro-viscous
Color: Raw aluminum in color

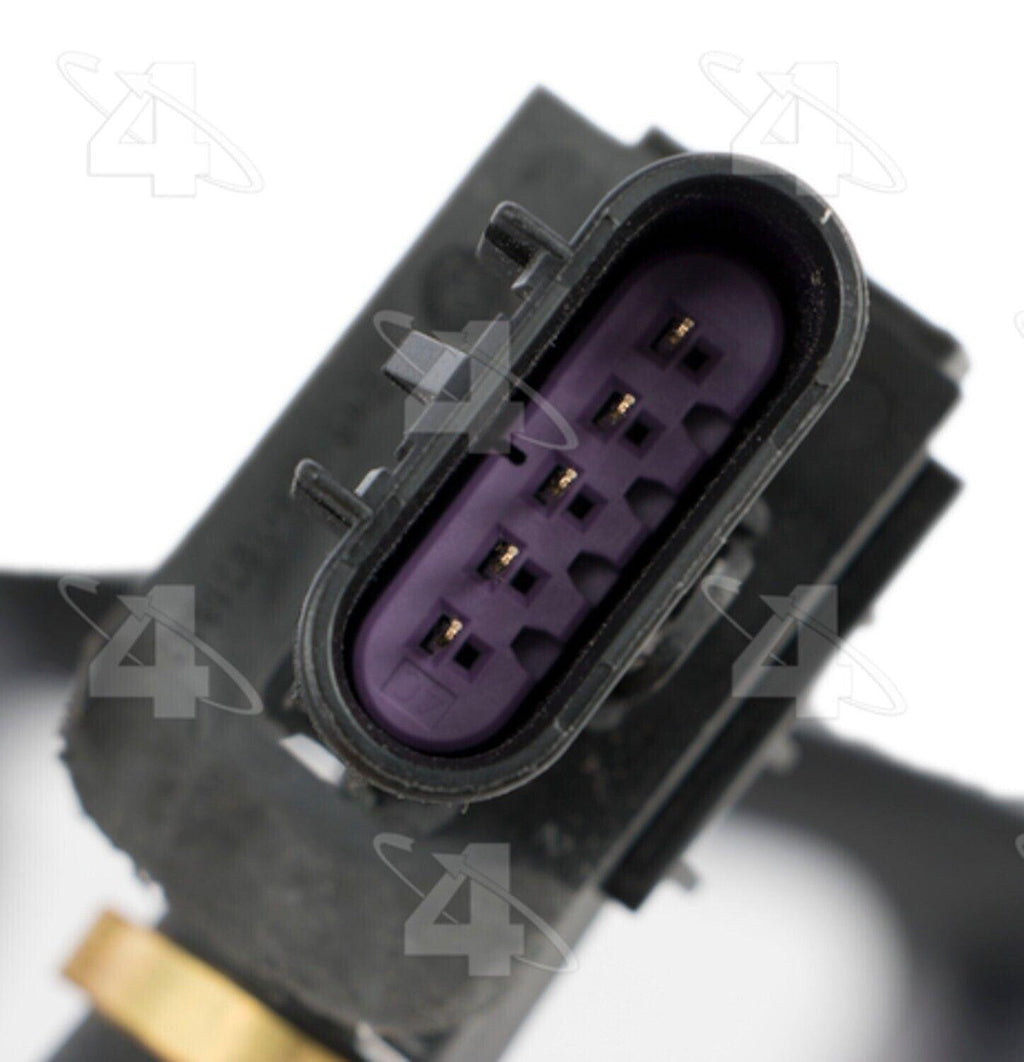

Wire Gauge Measurement: Uses original equipment connector
Wire Quantity: Uses original equipment connector
Distance From Clutch To Mounting Flange: 1.21
Clutch Maximum Diameter: 7.25
Rotation: Rev
Mounting Type: Hex
Clutch Type: Electronic
Description: Fan clutches
Drawing Type: D
Electronic Clutch?: Yes
Fan Bolt Circle IN: 3.81
Fan Bolt Circle MM: 96.8
Fan Mount Dia. IN: 3.25
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.57
Mount Dia. MM: 40
O.E. Replacement?: Yes
Overall Dia. MM: 184.2
Overall Height IN: 4.29
Overall Height MM: 109
Performance Rated?: Yes
Pilot Depth IN: 0.6
Pilot Depth MM: 15.2
Style: Severe duty
Type: Electronic
Interchange Part Number: 216078 22348 3300 376757311 922165 LR025234 PGG500161 PGG500260
Replaces Part Numbers: PGG500360
Brand Label: Fan Clutch
