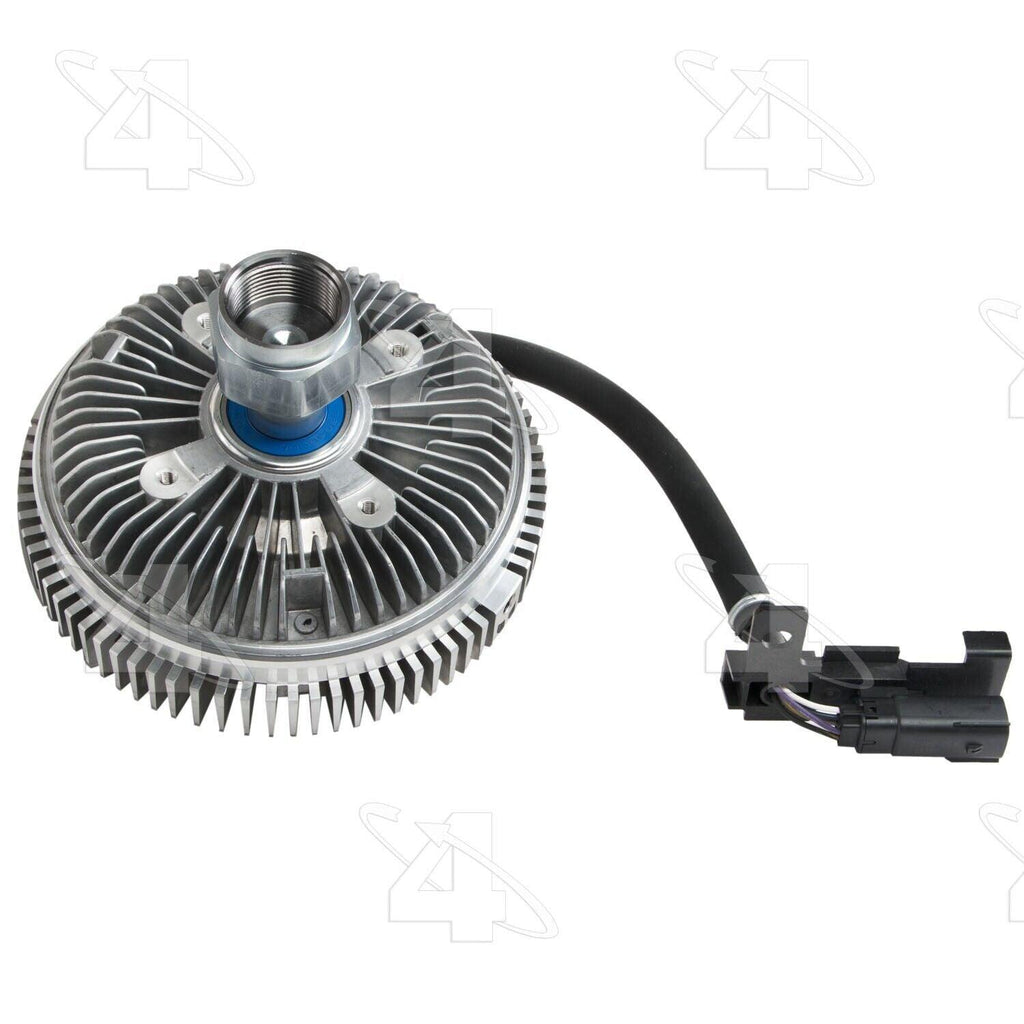

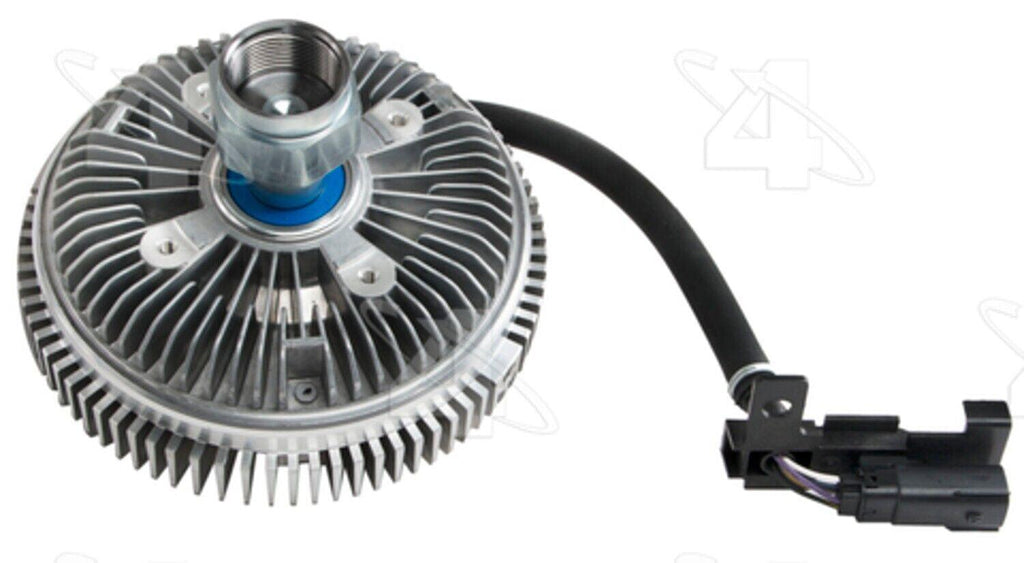

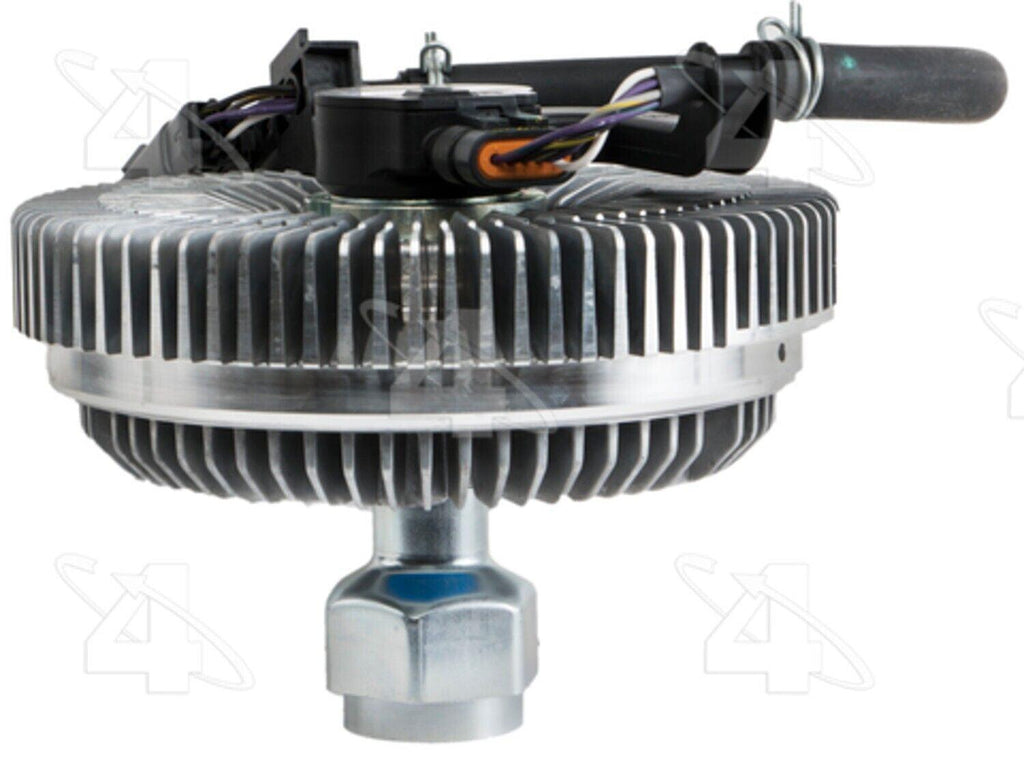

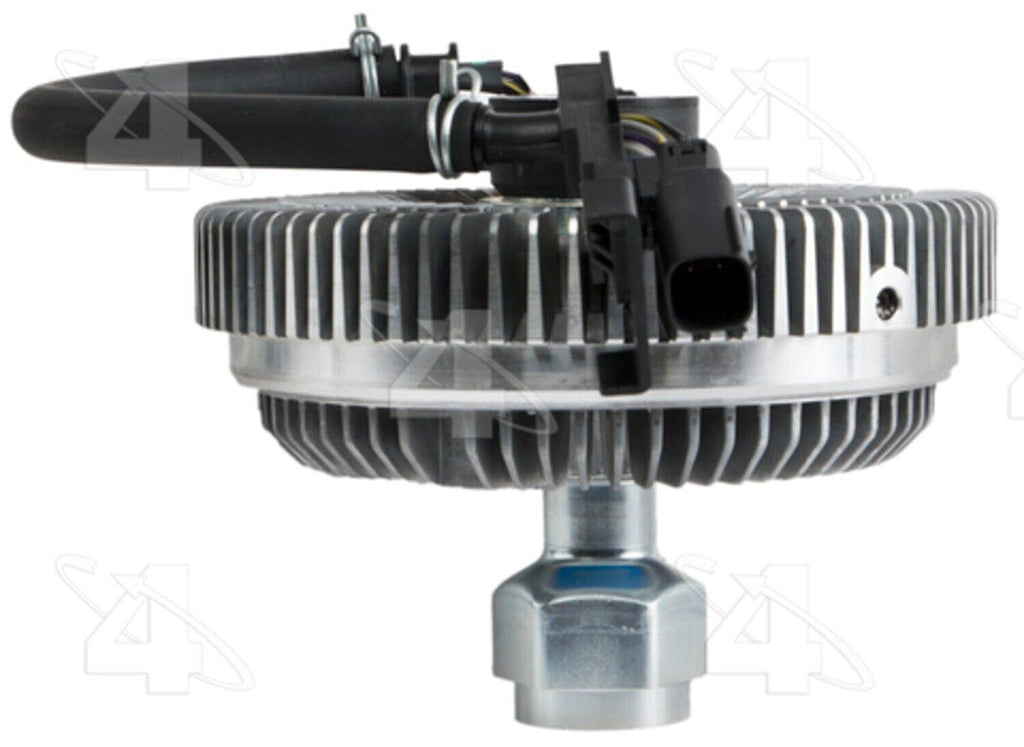

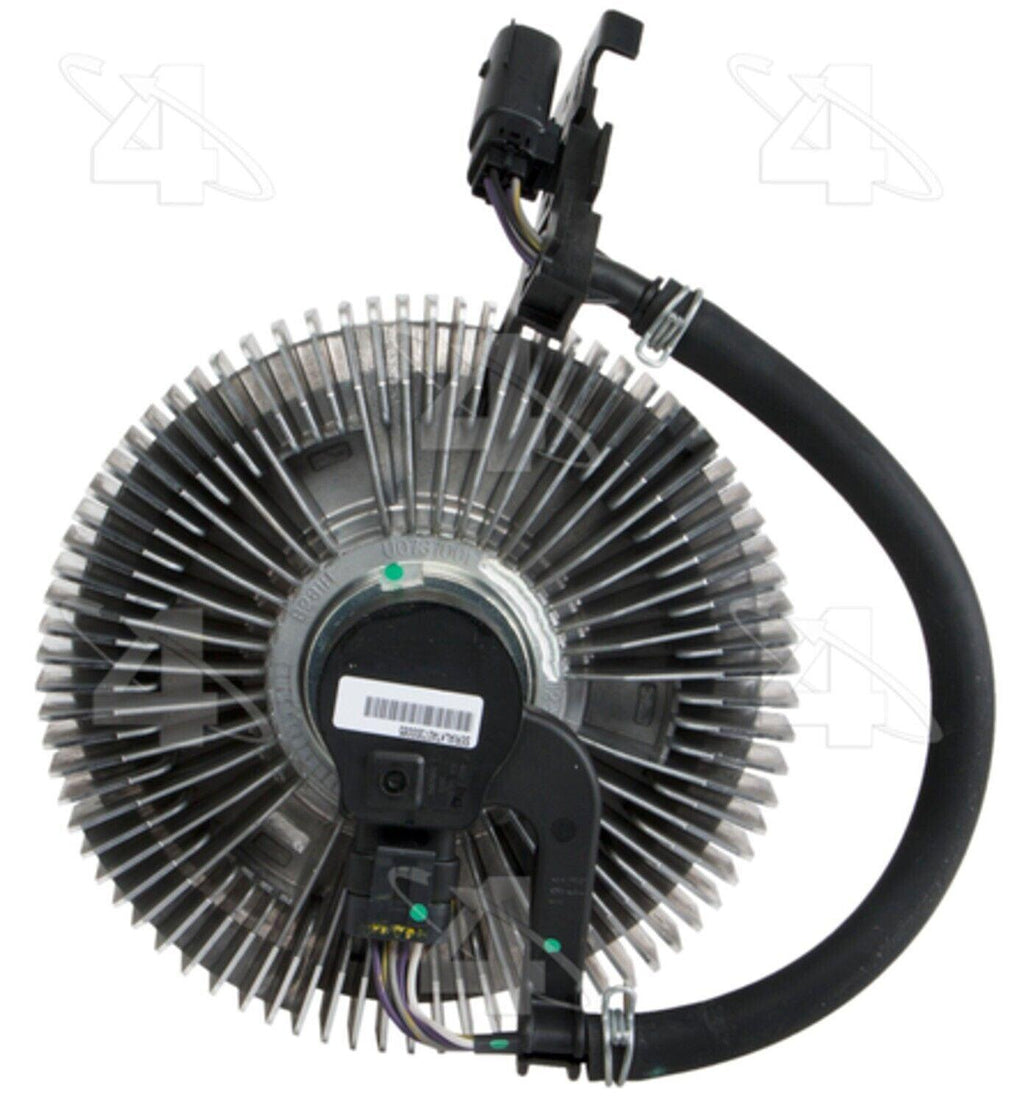

Hayden Engine Cooling Fan Clutch for Ford 3268

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2011-2014	Ford	F-150	6.2L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2011-2016	Ford	F-250 Super Duty	6.2L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2011-2016	Ford	F-350	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
2011-2016	Ford	F-350 Super Duty	6.2L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2011-2014	Ford	Lobo	6.2L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 3268
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Severe duty
Color: Raw aluminum in color

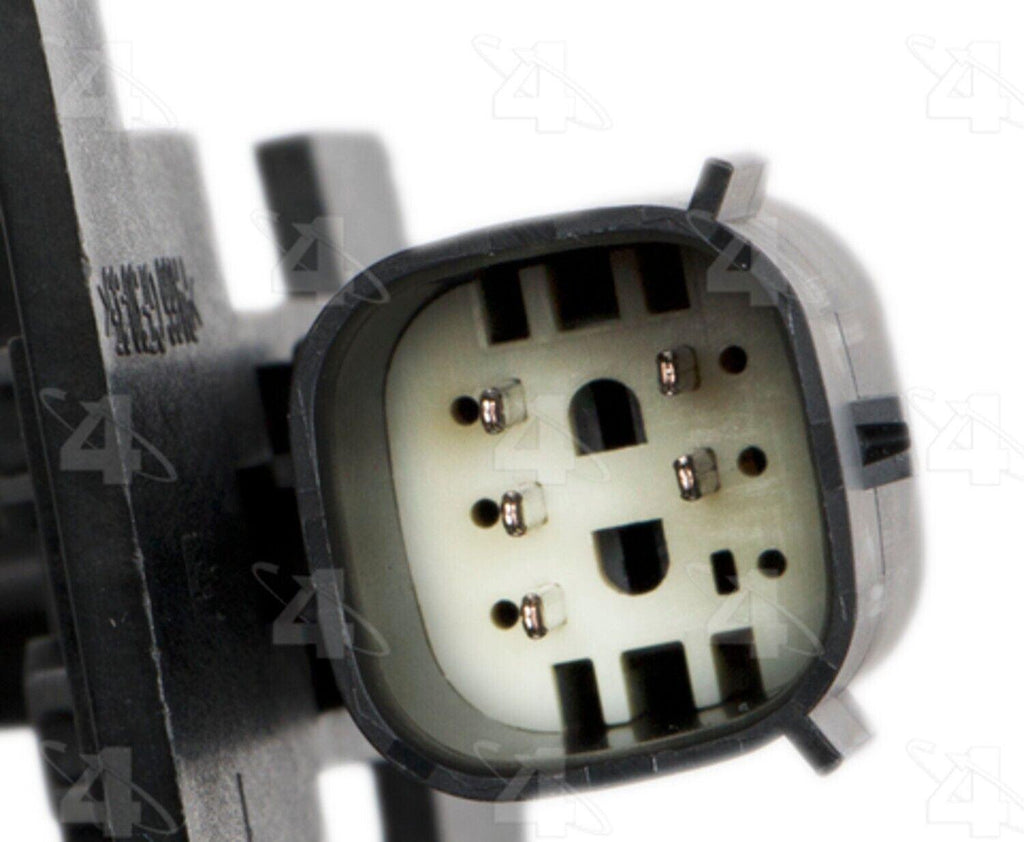

Wire Gauge Measurement: Uses original equipment connector
Bolt Hole Quantity: 4
Terminal Type: Male
Wire Quantity: Uses original equipment connector
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.37
Clutch Maximum Diameter: 7.47
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: Electronic
Description: Fan clutches
Dia. IN: 7.47
Electronic Clutch?: Electronic
Fan Bolt Circle IN: 3.84
Fan Bolt Circle MM: 97.5
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.86
Mount Dia. MM: 47
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 189.7
Overall Height IN: 5.81
Overall Height MM: 147.6
Performance Rated?: Yes
Pilot Depth IN: 0.88
Interchange Part Number: 216076 22339 281698 3268 46095 922163 9252500 A81717 BC3Z8A616A
Replaces Part Numbers: BC3Z8A616C YB3148
Brand Label: Fan Clutch
