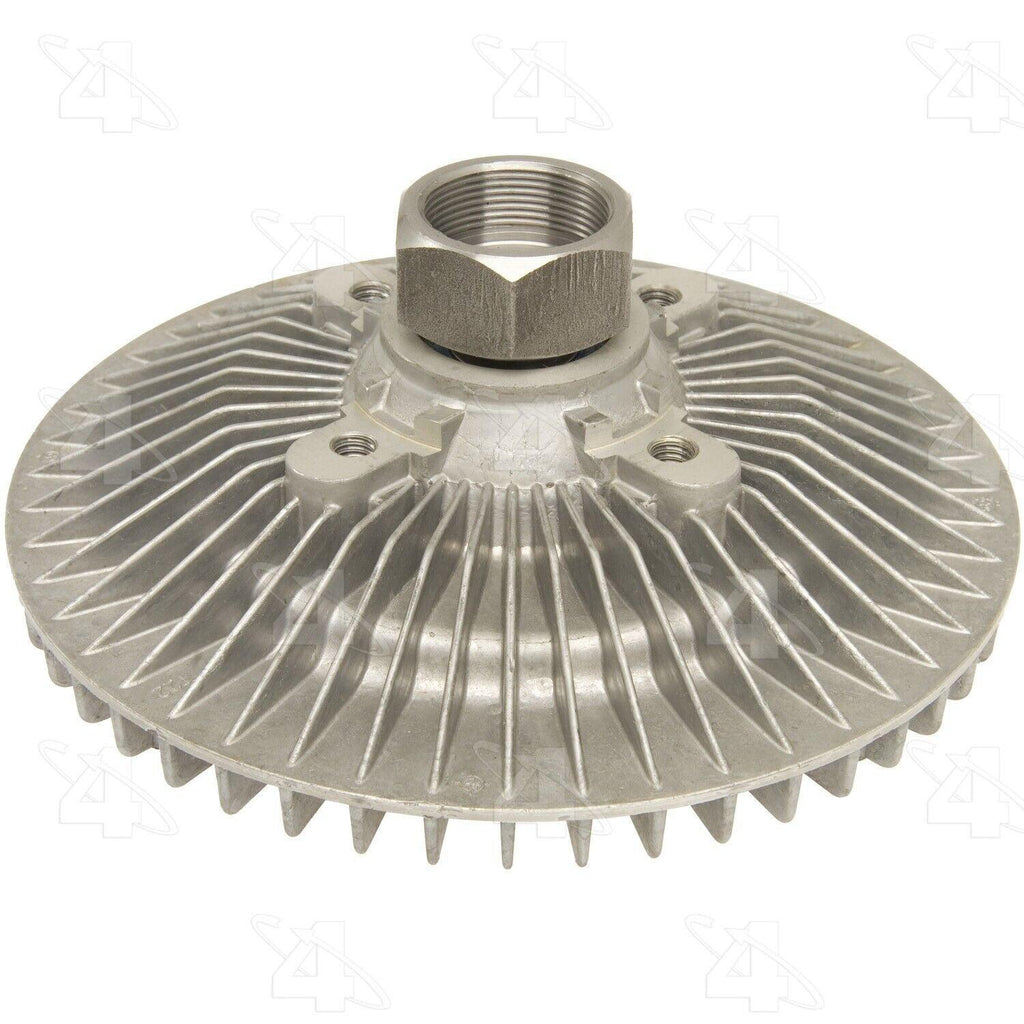

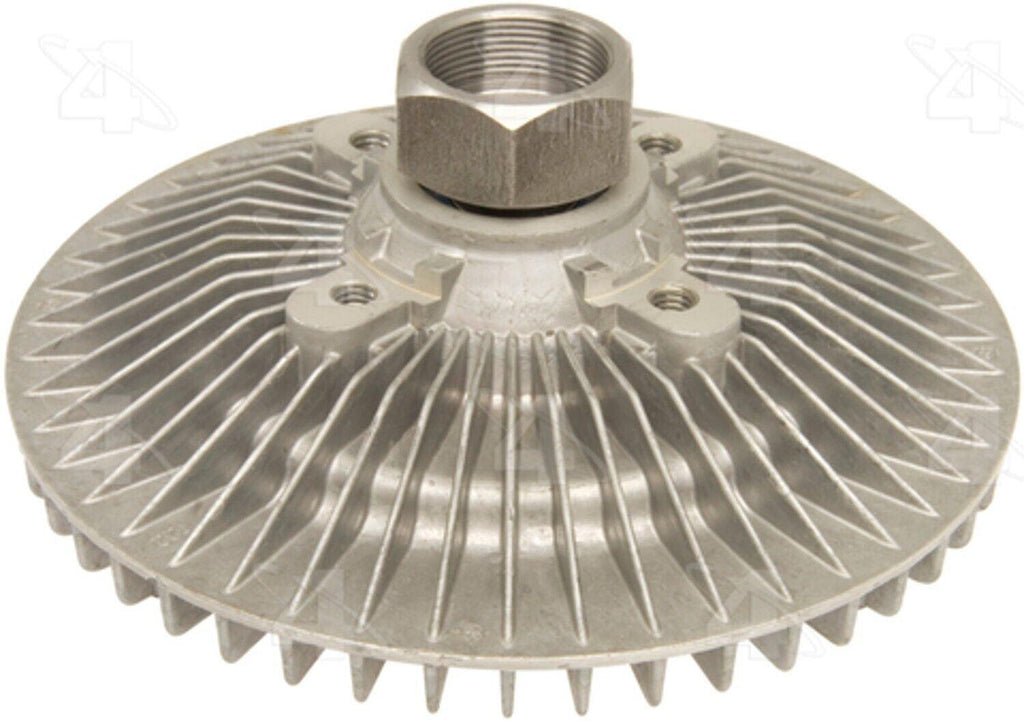

Hayden Engine Cooling Fan Clutch for Ford 2726

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
1995	Ford	Club Wagon	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch
1993-1996	Ford	F-150	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ 40mm Hex Nut, 33mm Pilot
1993-1996	Ford	F-250	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ 40mm Hex Nut, 33mm Pilot
1993-1996	Ford	F-350	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ 40mm Hex Nut, 33mm Pilot
1992-1996	Ford	E-150 Econoline	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch
1992-1996	Ford	E-150 Econoline Club Wagon	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch
1992-1996	Ford	E-250 Econoline	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch
1992-1996	Ford	E-350 Econoline	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch
1992-1996	Ford	E-350 Econoline Club Wagon	4.9L	L6	Reverse Rotation; Standard Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2726
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.25
Clutch Maximum Diameter: 7.2
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: 5/16-18 hole
Clutch Type: B - non-thermal & std thermal
Description: Fan clutches
Dia. IN: 7.2
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3
Fan Bolt Circle MM: 76.2
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.63
Mount Dia. MM: 40
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 182.9
Overall Height IN: 2.83
Overall Height MM: 71.9
Performance Rated?: Yes
Pilot Depth IN: 0.63
Pilot Depth MM: 16
Pilot Dia. IN: 1.3
Pilot Dia. MM: 33
Interchange Part Number: 067009 11136940V 115155 140060 1580267 19189671 215155 22155
Replaces Part Numbers: 230231 2726 2726TA 273367 36940 402231 402726 47262 4855R 7136940
Replacement Part Numbers: 77262 89000182 922726 9252170 A5587 CWK922726 F2UZ8A616A FC128
Replace Part Numbers: F2UZ8A616B F2UZ8A616F F2UZ8A616G F3TZ8A616A F3TZ8A616B FC2726
Replaces Parts: FFC5726T GC240 KG2726 LF231 YB465 YB466 YB479
Brand Label: Fan Clutch
