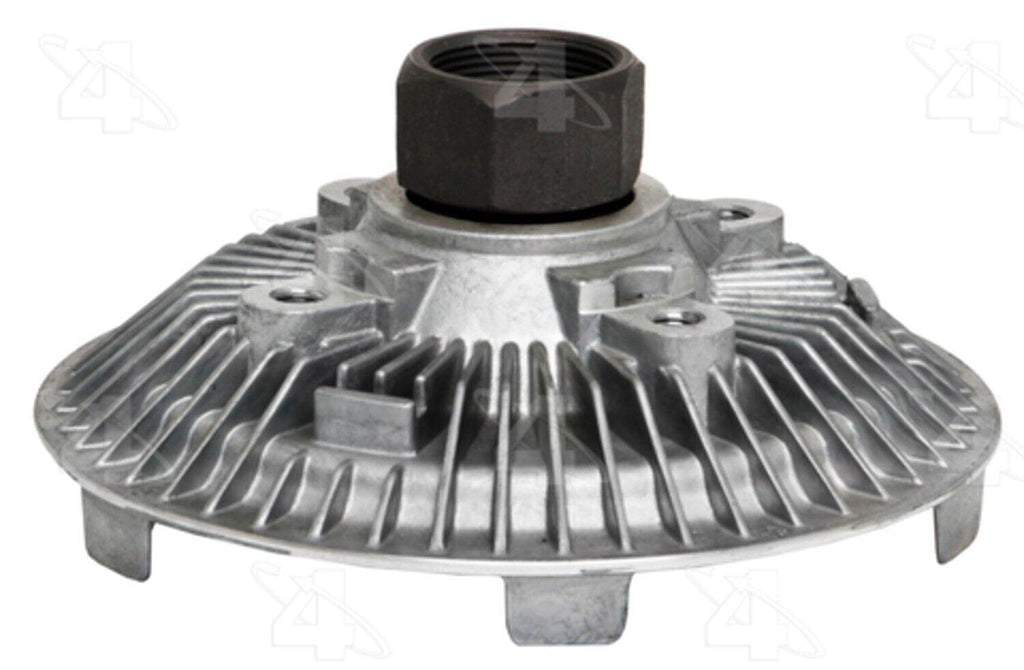

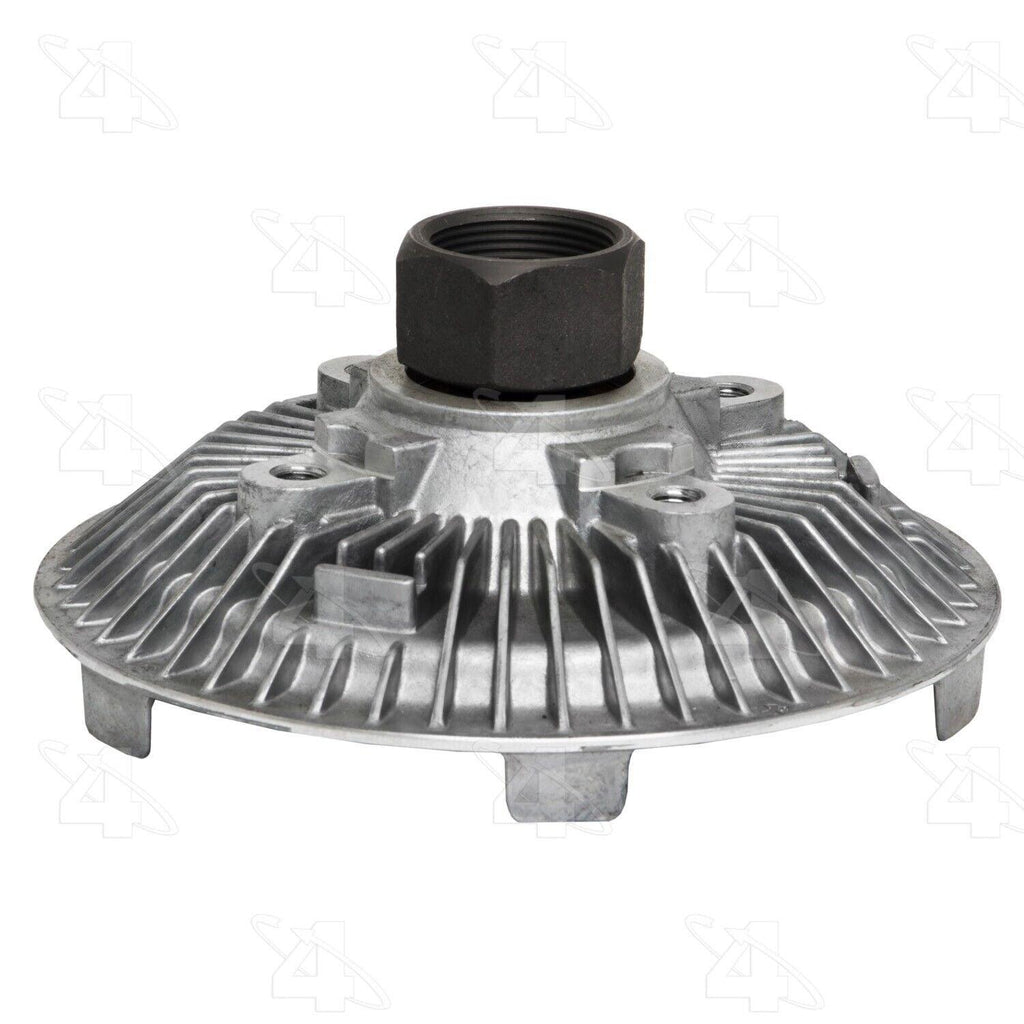

Hayden Engine Cooling Fan Clutch for Cougar, Thunderbird 2620

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
1991-1993	Ford	Cougar	5.0L	V8	Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Thread-On Fan Clutch
1991-1993	Ford	Thunderbird	5.0L	V8	Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Thread-On Fan Clutch
1991-1993	Mercury	Cougar	5.0L	V8	Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Thread-On Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2620
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.25
Clutch Maximum Diameter: 5.99
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: 5/16-18 hole
Clutch Type: B - non-thermal & std thermal
Description: Fan clutches
Dia. IN: 5.99
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.25
Fan Bolt Circle MM: 82.6
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 152.1
Overall Height IN: 2.78
Overall Height MM: 70.6
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Pilot Dia. IN: 1.18
Pilot Dia. MM: 30
Interchange Part Number: 11136913 1580262 19189656 215100 22163 230274 2620 2620TA 273368
Replaces Part Numbers: 2911260 36913 402274 402620 4883R 7136913 77261 89000148 922620
Replacement Part Numbers: 9252160 A5599 CWK922620 F1SZ8A616A FC126 FC2620 FFC5620T GC952
Replace Part Numbers: KG2620 LF274 YB397
Brand Label: Fan Clutch
