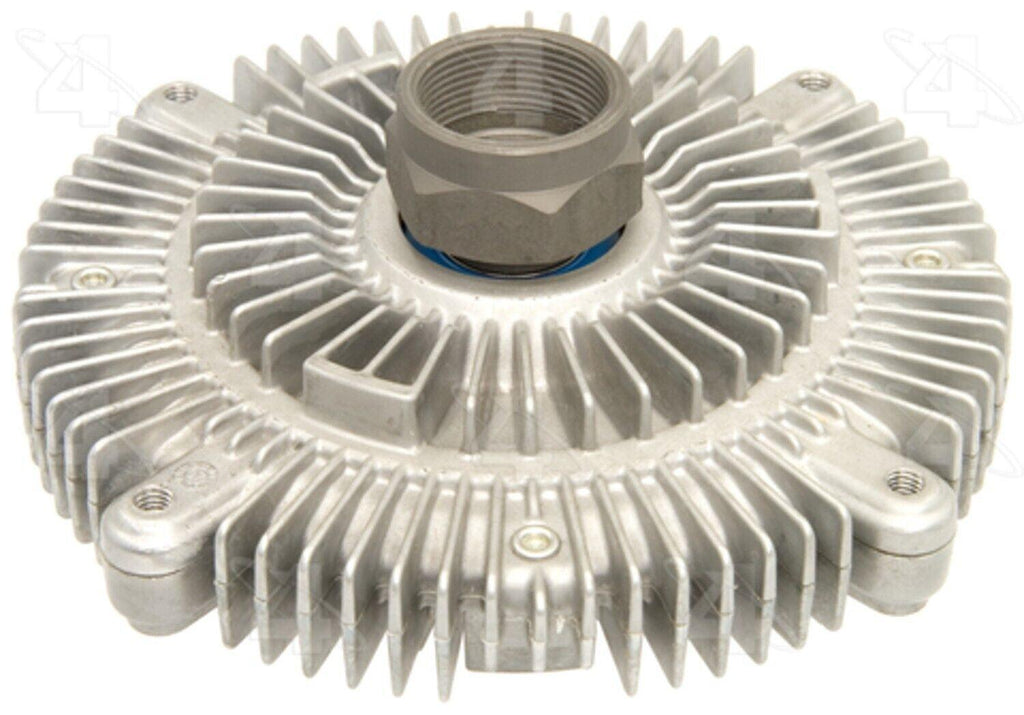

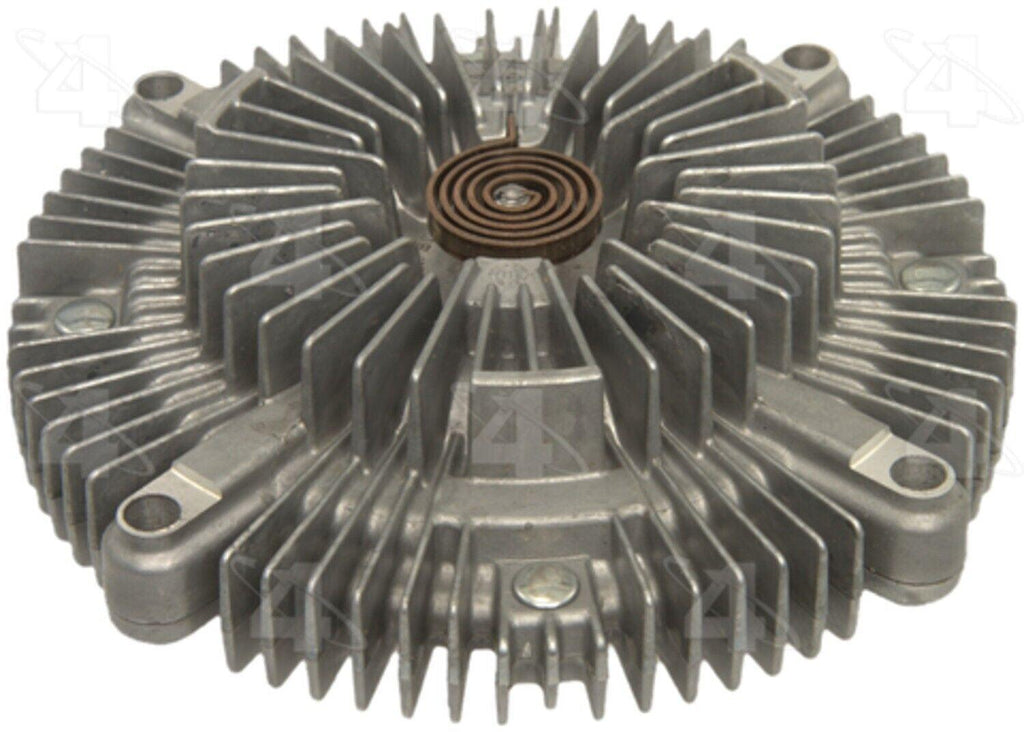

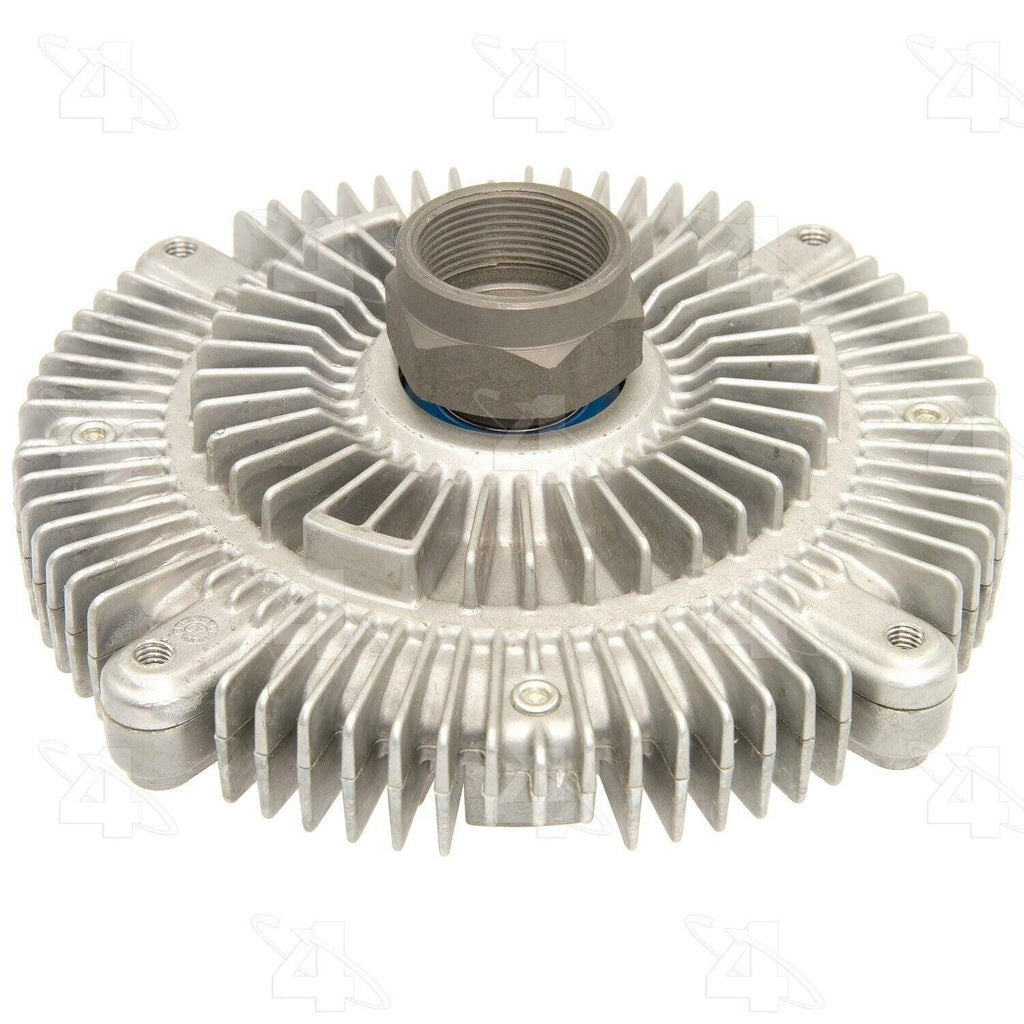

Hayden Engine Cooling Fan Clutch for 05-11 Ford Ranger 2675

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2005-2011	Ford	Ranger	2.3L	L4	Reverse Rotation; Standard Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2675
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.19
Clutch Maximum Diameter: 6.65
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: A - 5" & 6" import
Description: Fan clutches
Dia. IN: 6.65
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 6.03
Fan Bolt Circle MM: 153.2
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 168.9
Overall Height IN: 2.88
Overall Height MM: 72.9
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Pilot Dia. IN: 1.18
Pilot Dia. MM: 30
Interchange Part Number: 11146028 1540493 19187670 1L5Z8A616AC 215084 22135 2675 271630
Replaces Part Numbers: 2911341 2L5Z8A616AA 3L5Z8A616AA 46028 4L5Z8A616AA 5L5Z8A616AA
Replacement Part Numbers: 6L5Z8A616CA 922675 9252310 A71630 CWK922675 KG2681 YB3012 YB3048
Brand Label: Fan Clutch
