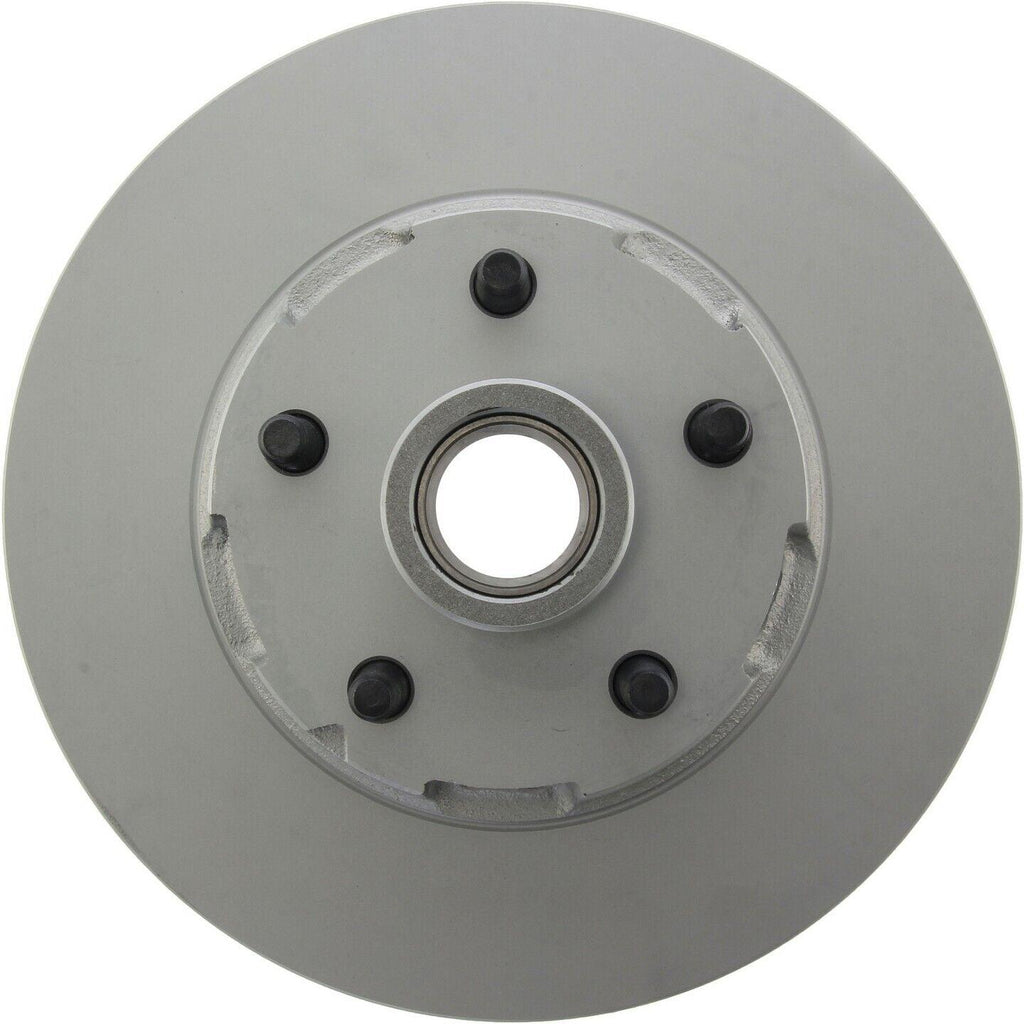

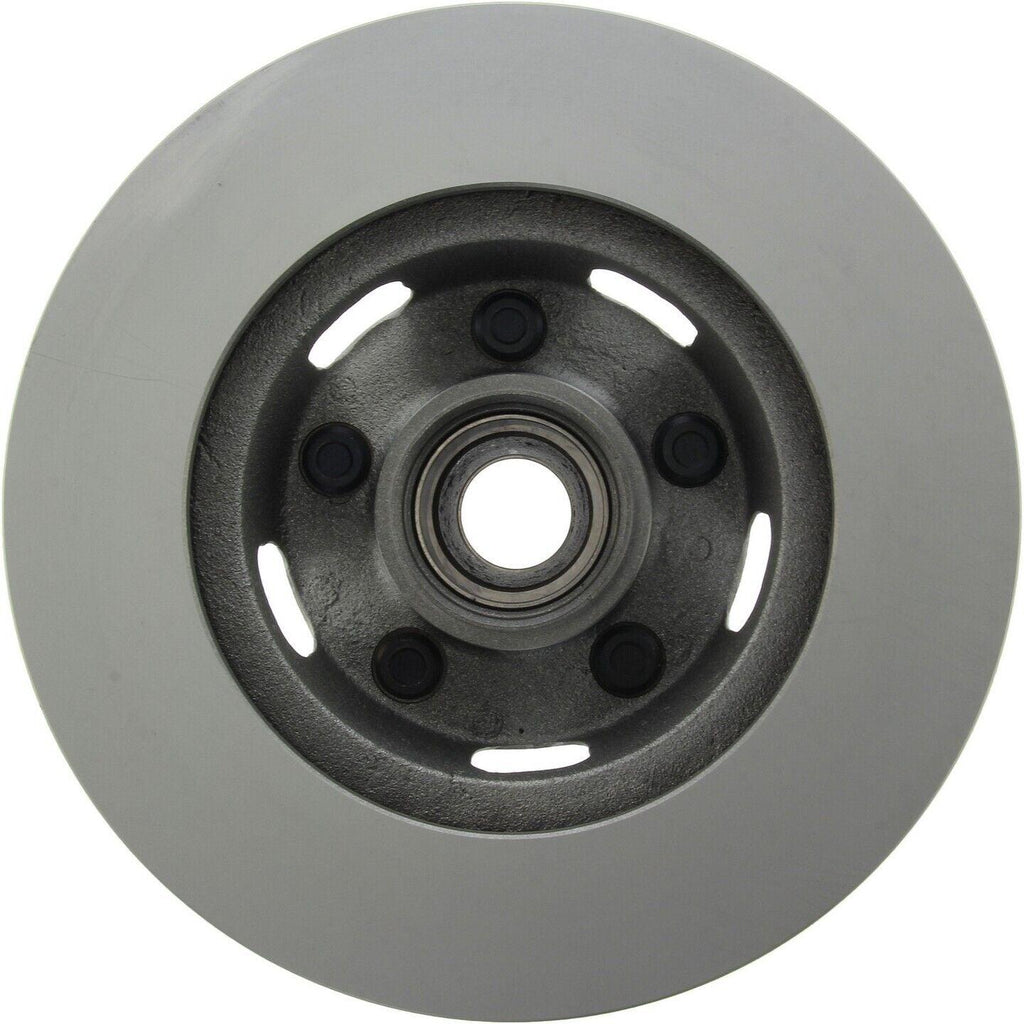

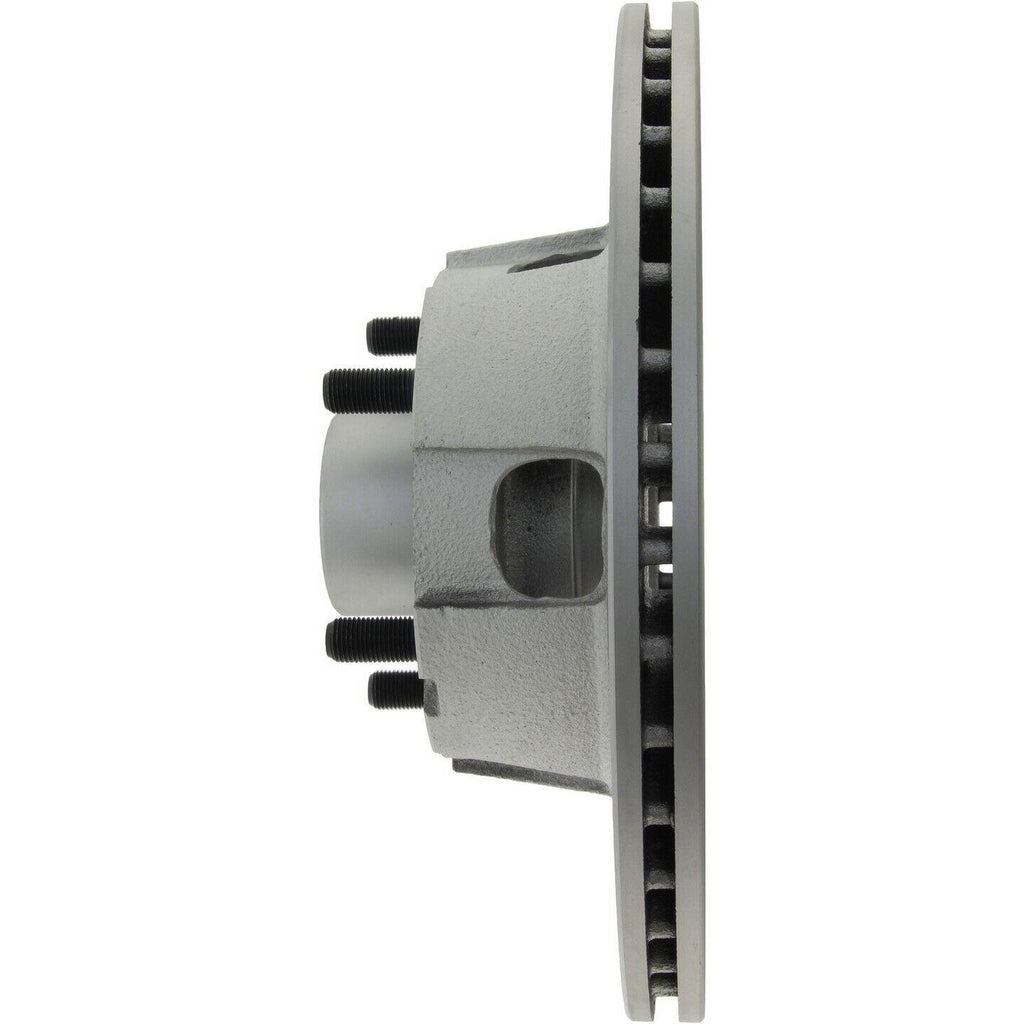

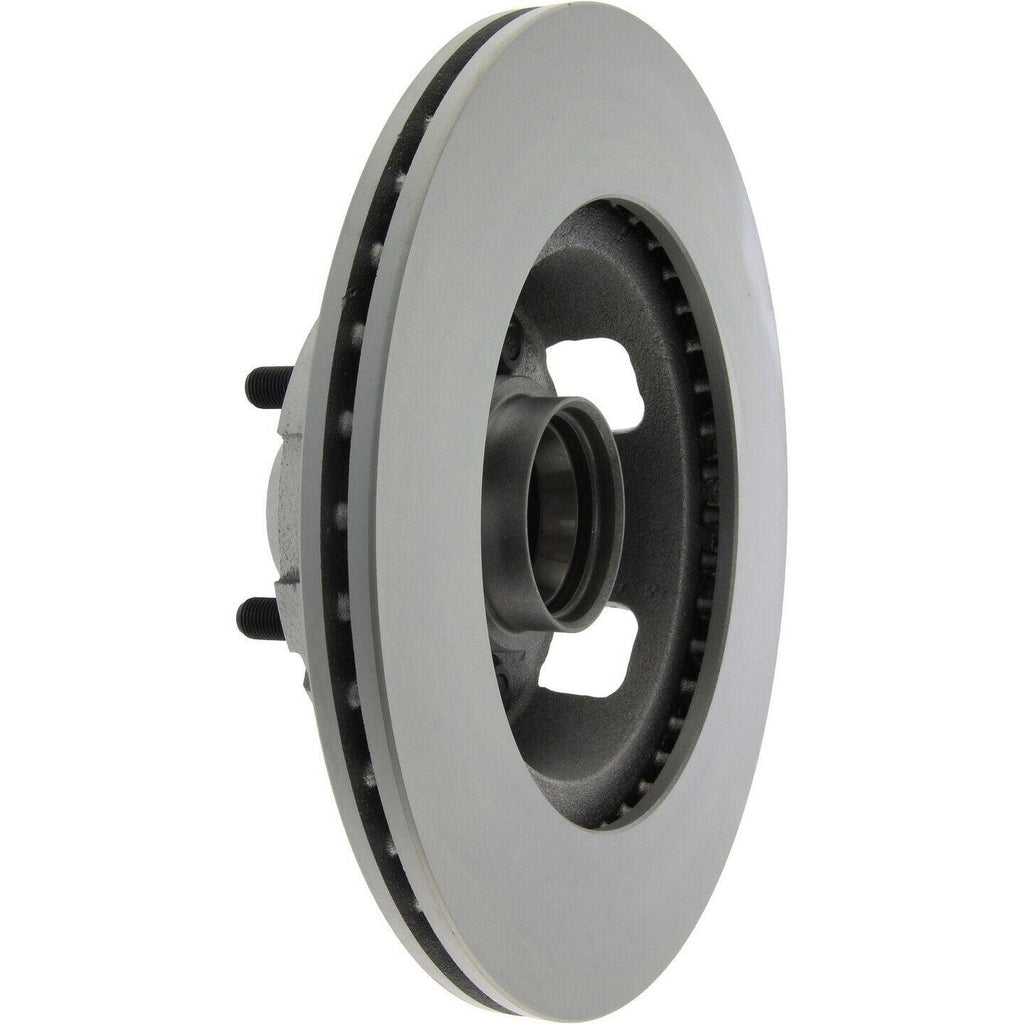

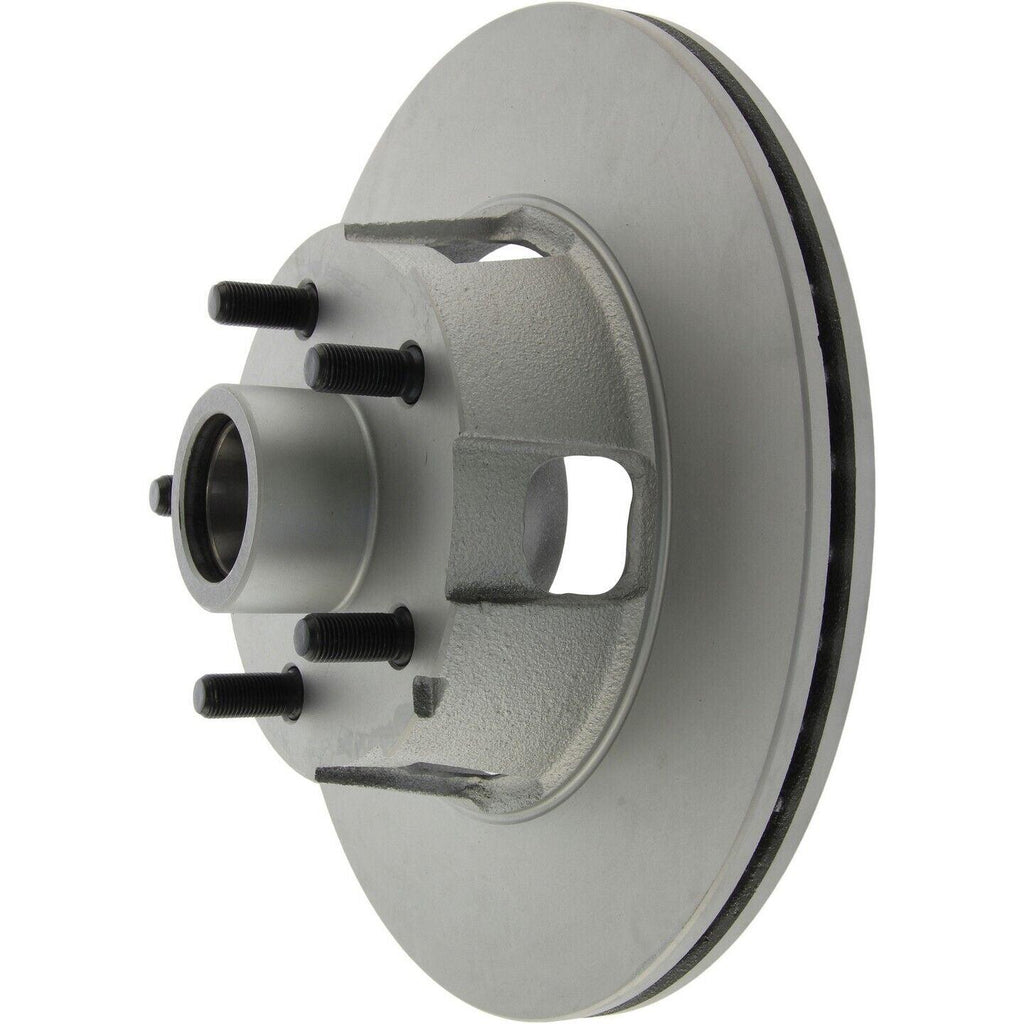

Front Disc Brake Rotor for Fairlane, Falcon, Mustang, Ranchero+More (320.61053F)

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
1967	Ford	Fairlane	L
1967	Ford	Mustang	6.4L	V8
1967	Ford	Mustang	4.7L	V8
1967	Ford	Mustang	3.3L	L6
1967	Ford	Ranchero	L
1967	Mercury	Caliente	L	Disc Only
1967	Mercury	Cougar	6.4L	V8	Disc Only
1967	Mercury	Cougar	4.7L	V8	Disc Only
1967	Mercury	Villager	L	Disc Only
1967	Mercury	Voyager	L	Disc Only
1966-1967	Mercury	Comet	L	Disc Only
1966-1967	Mercury	Cyclone	L	Disc Only
1965-1967	Ford	Falcon	L
1964-1966	Ford	Mustang	L

Specifications:

Part Category: Disc Brake Rotor
Brand: Centric
Manufacturer Part Number: 320.61053F
Vehicle Position: Front
Placement on Vehicle: Front
Label: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
Product Type: Factory Replacement
Type: Disc Brake Rotor
Number of Pieces: 1
Discard Thickness: 0.780
Discard Thickness: 19.800
Nominal Thickness: 0.827
Nominal Thickness: 21.000
Disc Finish: Fully coated
Hat Finish: Coated
Stud Thread Diameter: 0.500
Overall Height: 2.307
Overall Height: 58.600
Outside Diameter: 11.335
Outside Diameter: 287.900
ABS Tone Ring Included: No
Surface Type: Smooth
Solid Or Vented Type Rotor: Vented
Bolt Thread Pitch: 20.000
Bearings Included: No
Center Hole Diameter: 3.252
Center Hole Diameter: 82.600
Mounting Bolt Hole Circle Diameter: 114.300
Mounting Bolt Hole Circle Diameter: 4.500
Stud/Lug Hole Quantity: 5
Stud/Lug Hole Diameter: 0.622
Stud/Lug Hole Diameter: 15.800
Disc Mounting [cntrc]: Hub & rotor
Inner Bearing # [cntrc]: 410.91006
Inner Seal # [cntrc]: 417.61000
Misc Holes [cntrc]: 0
Notes [cntrc]: Vented hat
OEM Vane Count [cntrc]: 40
Outer Bearing # [cntrc]: 410.91002
