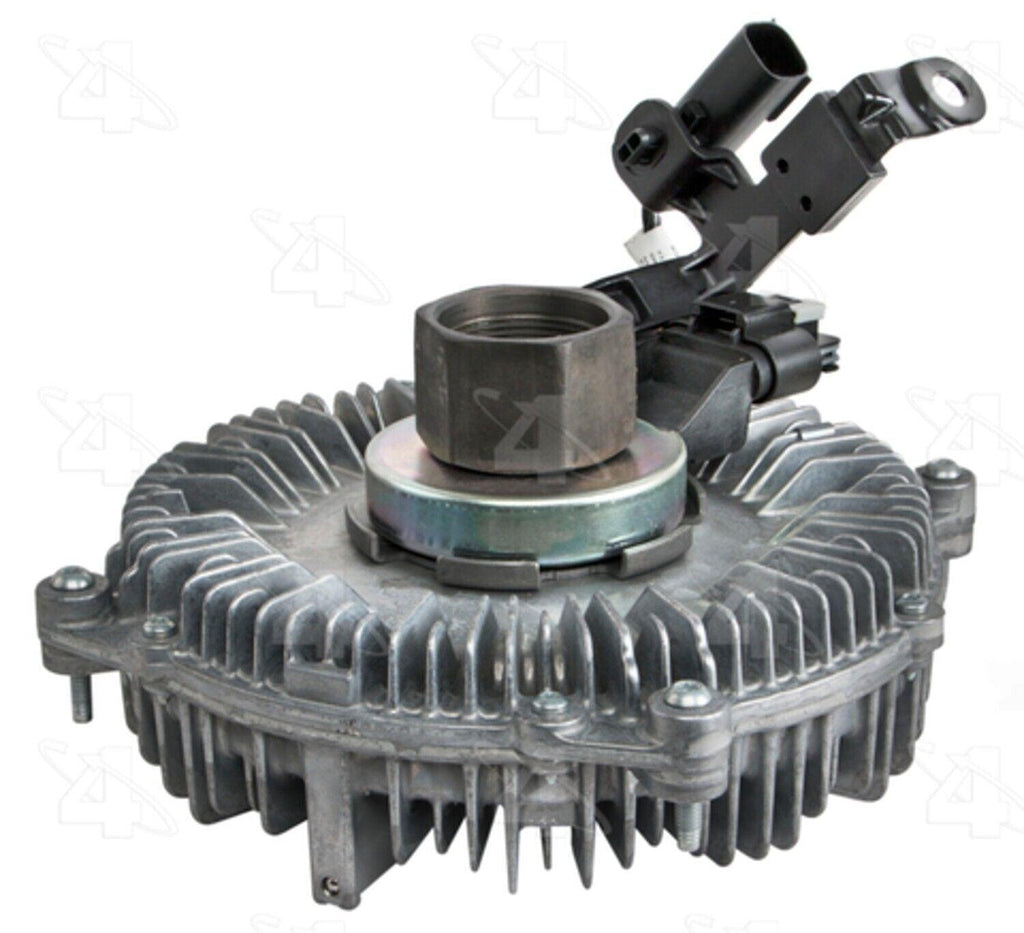

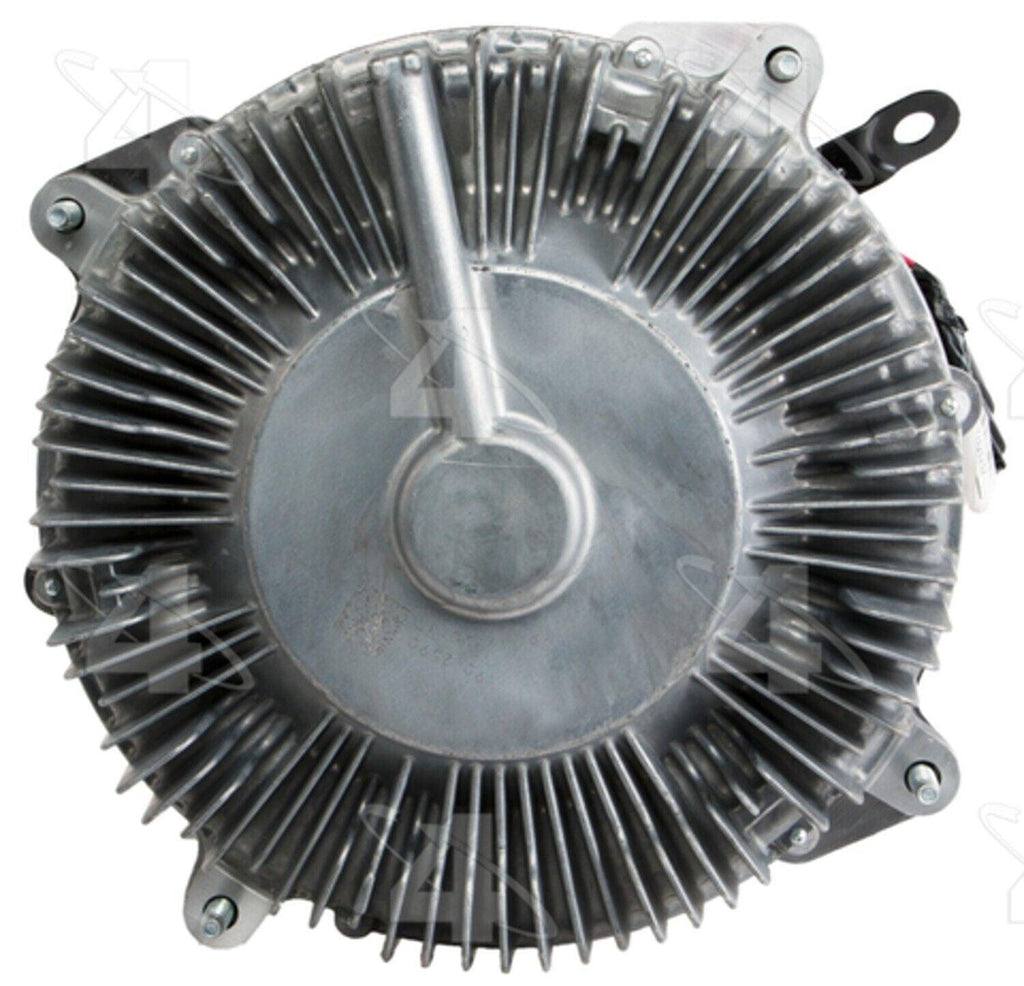

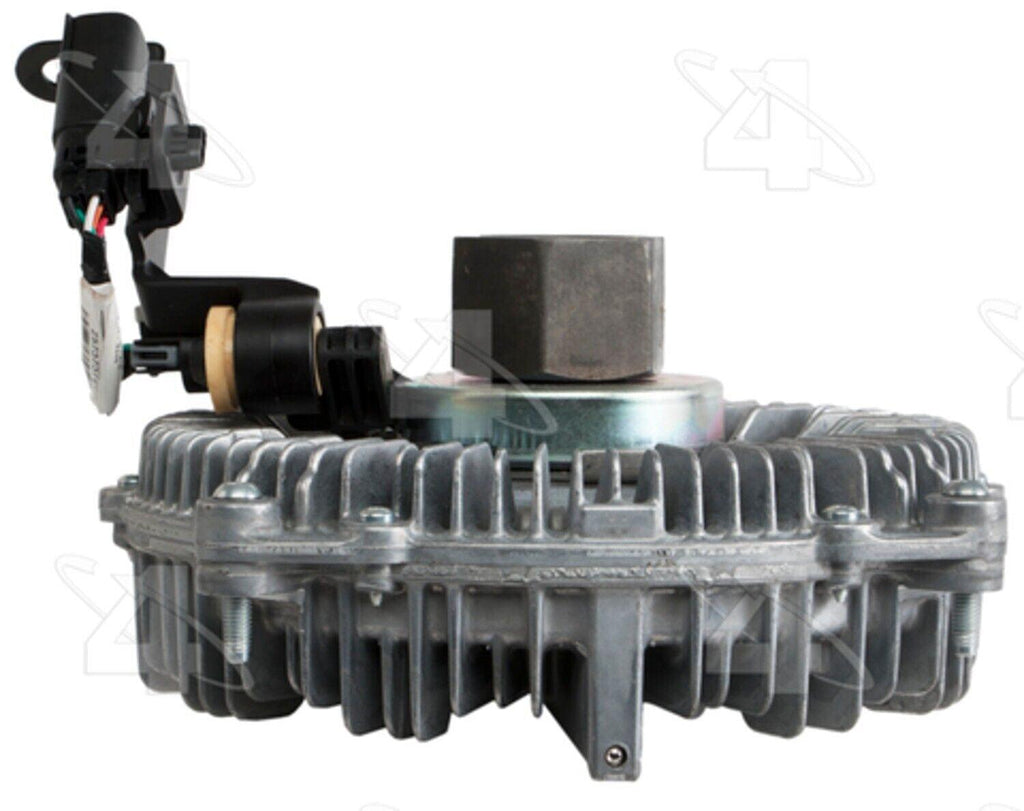

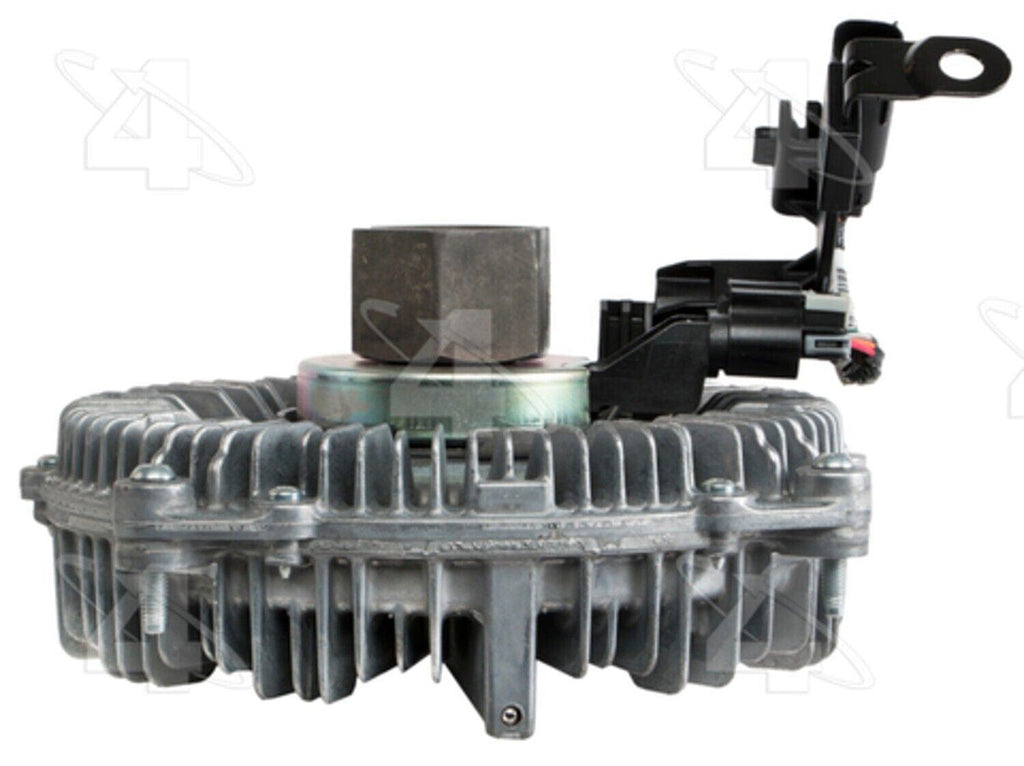

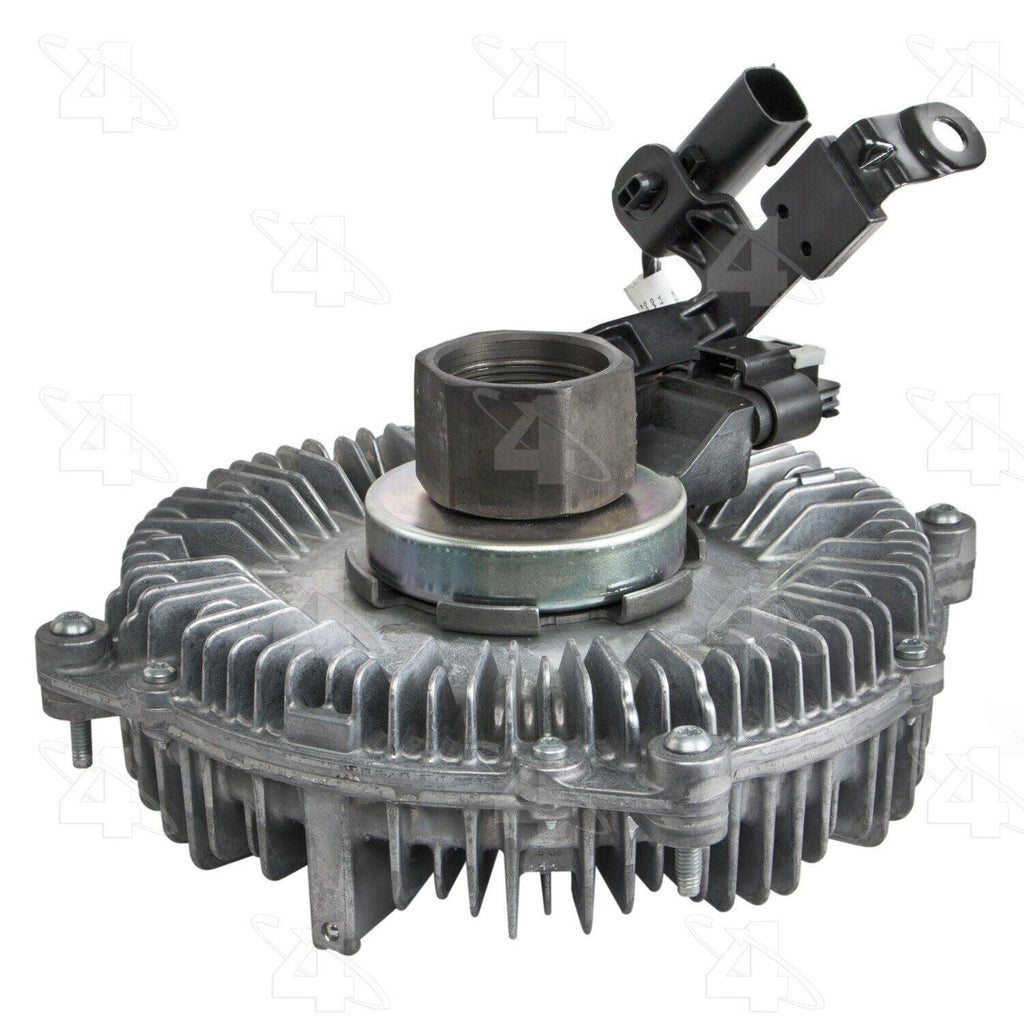

Four Seasons Engine Cooling Fan Clutch for Ford 46094

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2011-2019	Ford	F-250 Super Duty	6.7L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2011-2019	Ford	F-350 Super Duty	6.7L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 46094
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Severe duty
Color: Raw aluminum in color

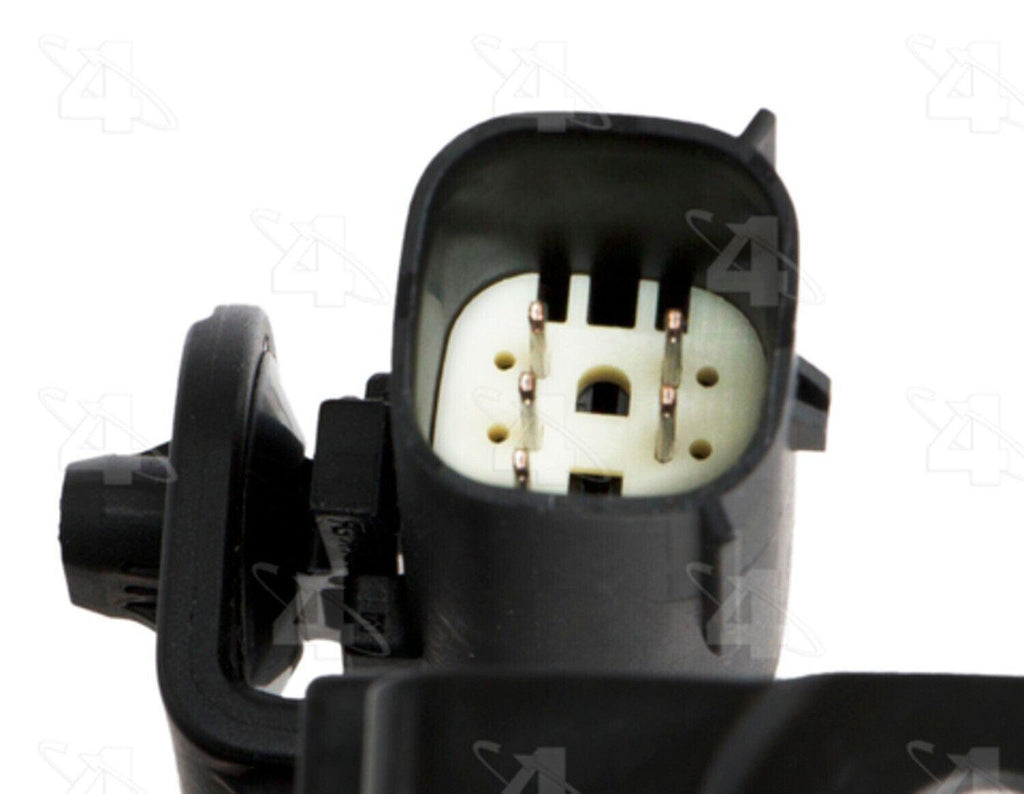

Wire Gauge Measurement: Uses original equipment connector
Bolt Hole Quantity: 4
Terminal Type: Male
Wire Quantity: Uses original equipment connector
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.9
Clutch Maximum Diameter: 9.39
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 stud
Clutch Type: Electronic
Description: Fan clutches
Dia. IN: 9.39
Electronic Clutch?: Electronic
Fan Bolt Circle IN: 8.9
Fan Bolt Circle MM: 226.1
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.86
Mount Dia. MM: 47
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 238.5
Overall Height IN: 4.43
Overall Height MM: 112.5
Performance Rated?: Yes
Pilot Depth IN: 0.9
Interchange Part Number: 216075 22340 281697 3267 46094 922162 9252510 A81716 BC3Z8A616B
Replaces Part Numbers: BC3Z8A616CC BC3Z8A616D FC3Z8A616A FC3Z8A616B YB3167 YB3188
Brand Label: Fan Clutch
