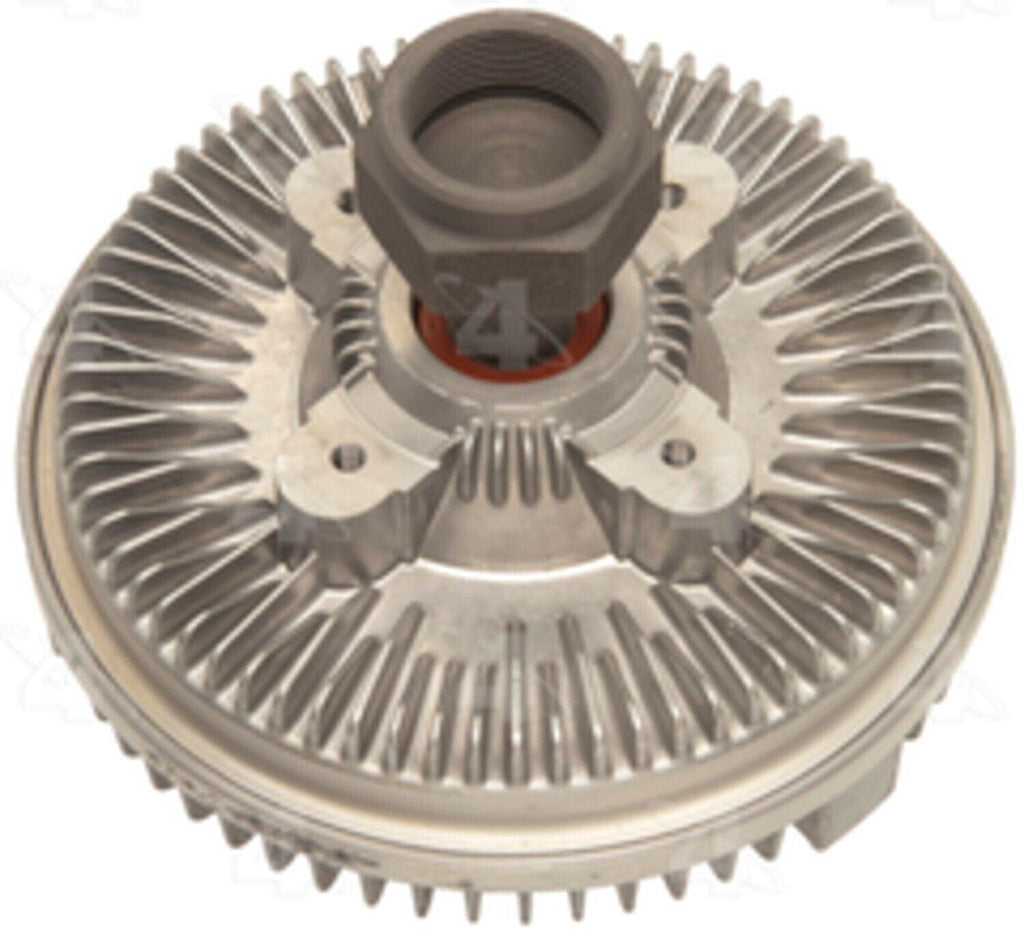

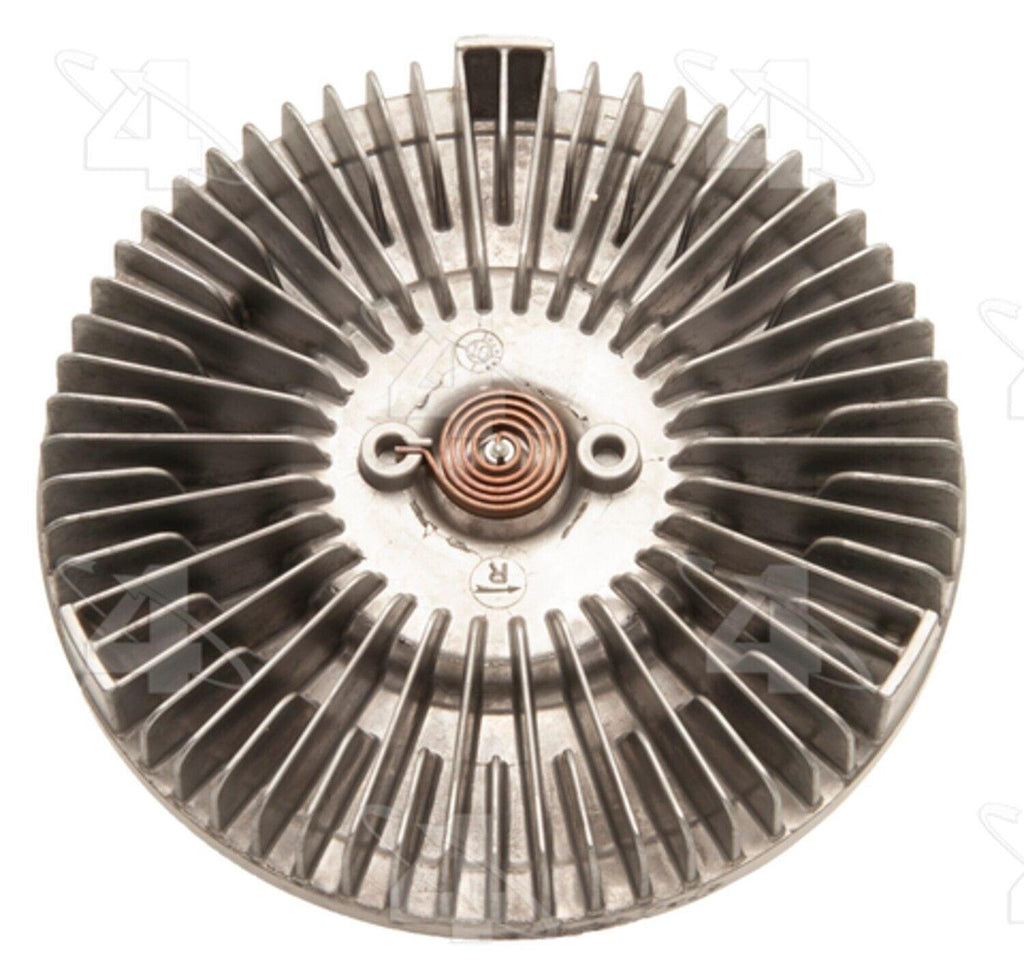

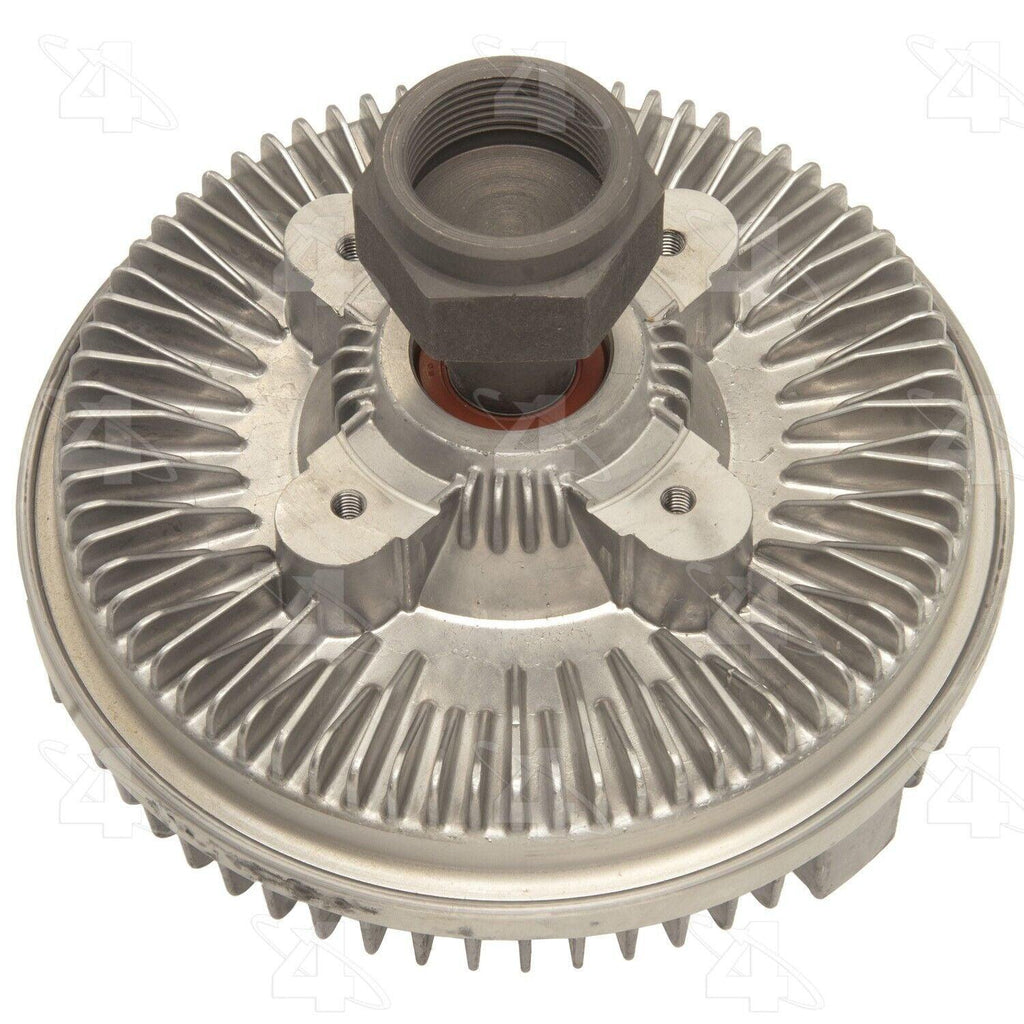

Four Seasons Engine Cooling Fan Clutch for Ford 46066

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2015-2016	Ford	E-350 Super Duty	L	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ AC
2006-2019	Ford	E-350 Super Duty	6.8L	V10	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ AC
1999-2010	Ford	F-250 Super Duty	6.8L	V10	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ 6mm Fan Bolt Holes
1999-2010	Ford	F-350 Super Duty	6.8L	V10	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ 6mm Fan Bolt Holes

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 46066
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Severe
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Terminal Type: N/a
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.42
Clutch Maximum Diameter: 7.4
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: D - severe duty & truck fan drive
Description: Fan clutches
Dia. IN: 7.4
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.25
Fan Bolt Circle MM: 82.6
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.86
Mount Dia. MM: 47
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 188
Overall Height IN: 4.94
Overall Height MM: 125.2
Performance Rated?: Yes
Pilot Depth IN: 0.78
Pilot Depth MM: 20.1
Pilot Dia. IN: 1.42
Interchange Part Number: 11146066 216048 22634 281668 2867 46066 5C3Z8A616BA 7C3Z8A616B
Replaces Part Numbers: 7C3Z8A616D 922867 9252400 A81688 CWK922867 F81Z8A616BA FC4Z8A616A
Replacement Part Numbers: FC4Z8A616B YB3084 YB3185
Brand Label: Fan Clutch
