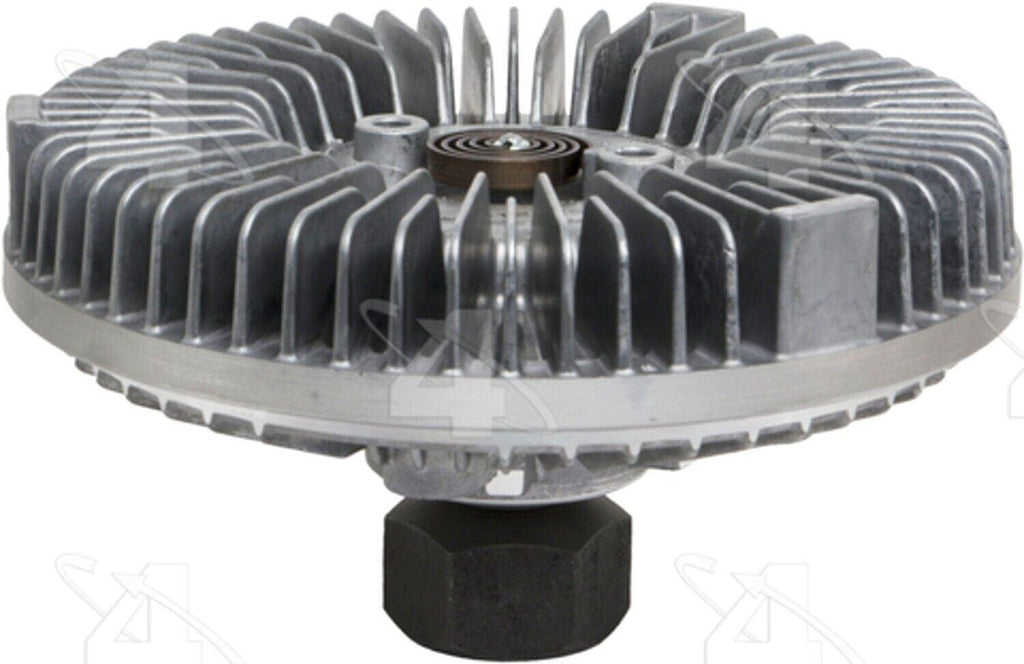

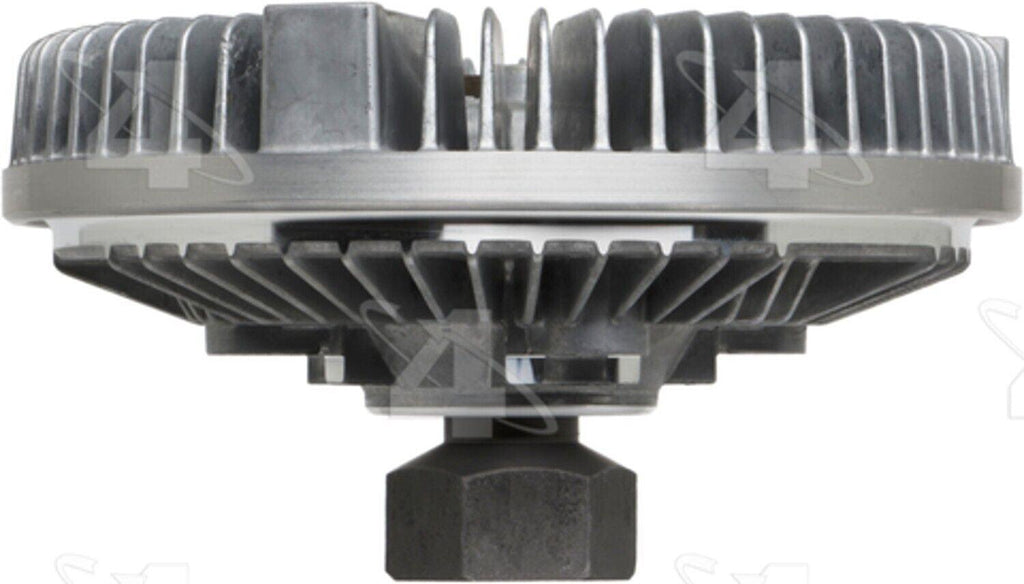

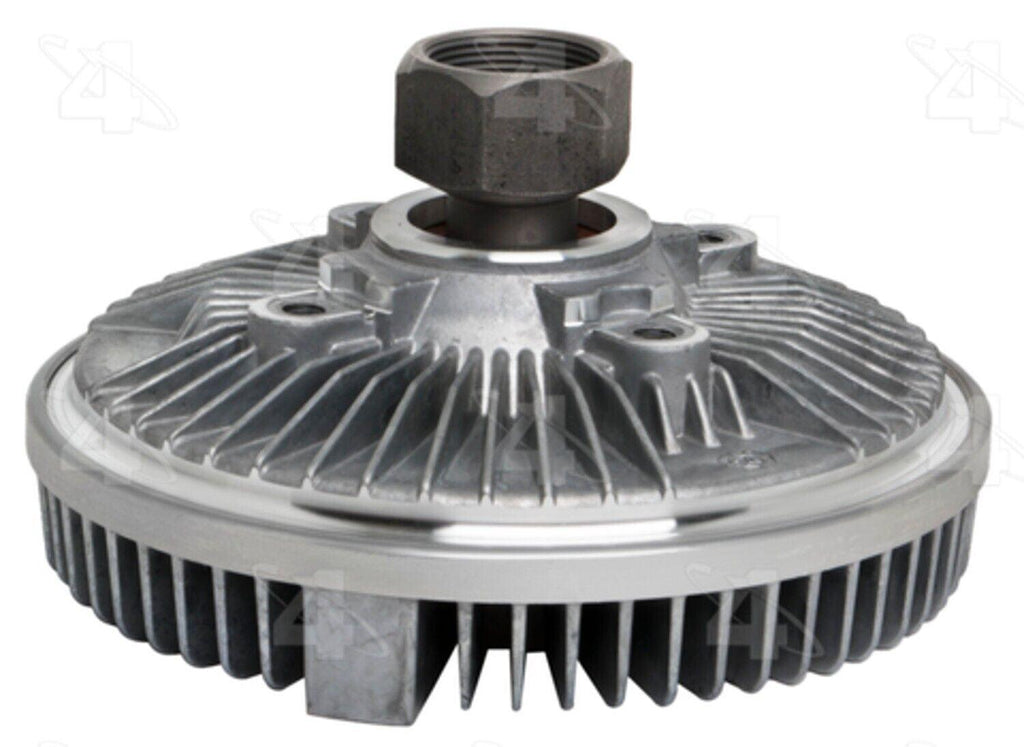

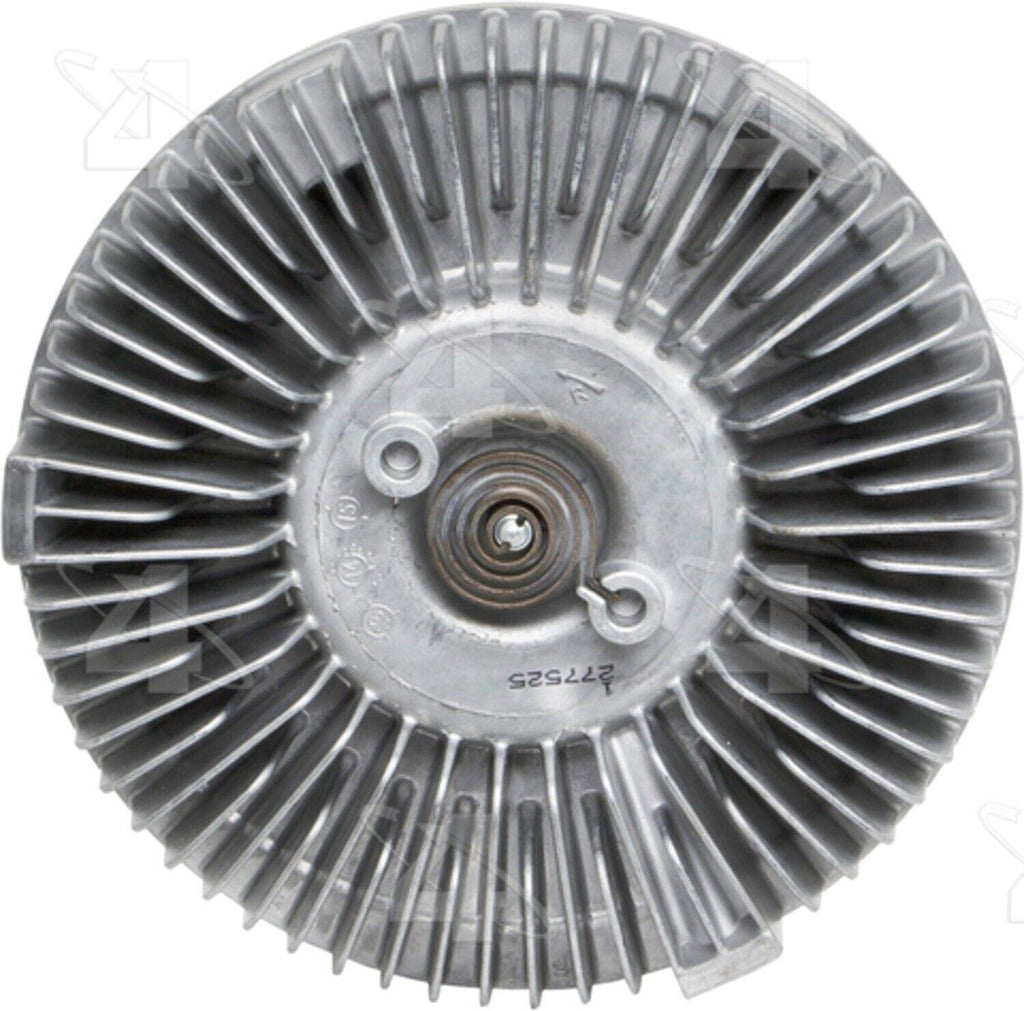

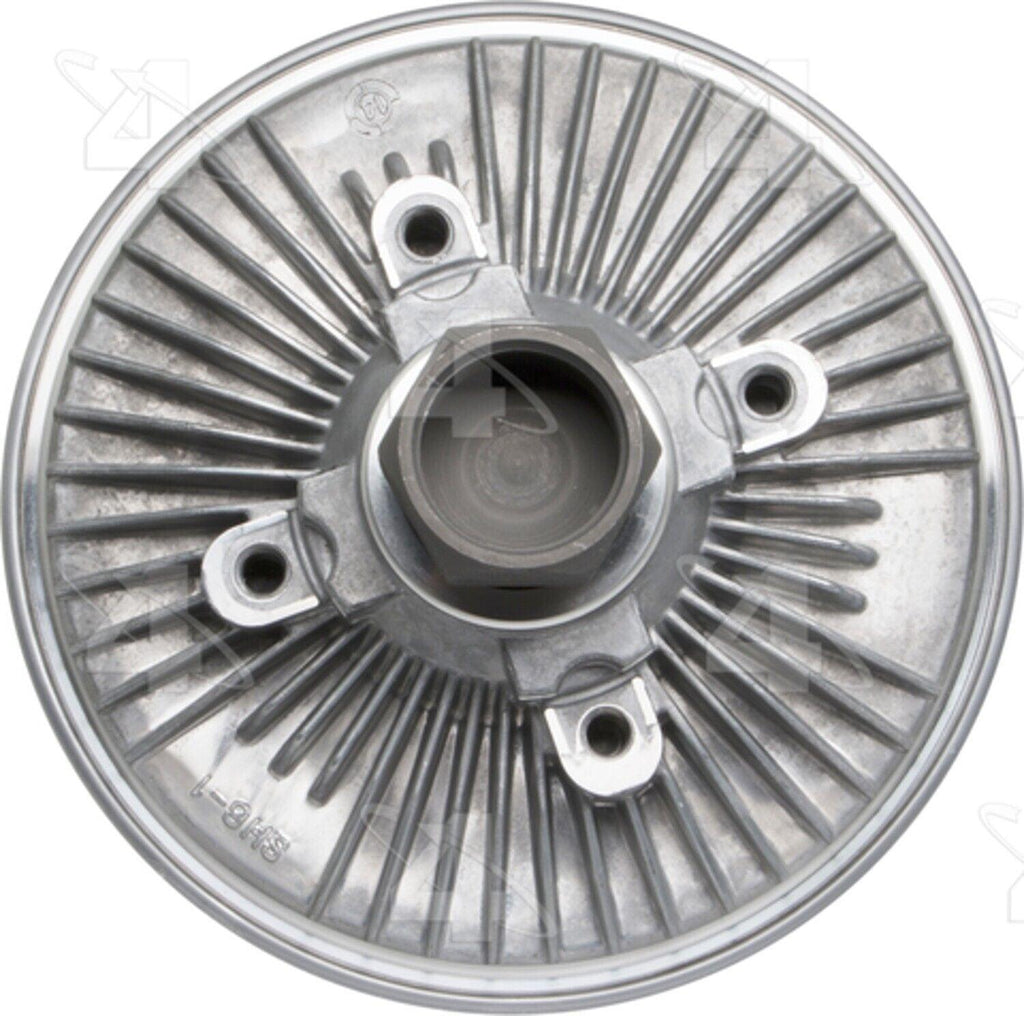

Four Seasons Engine Cooling Fan Clutch for F-150, F-150 Heritage 36724

Fitment Chart:

Years	Make	Model	Submodel	Liters	Cylinders	Notes
2004	Ford	F-150	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
2004	Ford	F-150 Heritage	4.2L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch
1999-2000	Ford	F-150	Base	4.2L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch
1999-2000	Ford	F-150	XL	4.2L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch
1999-2000	Ford	F-150	XLT	4.2L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch
1997-2008	Ford	F-150	4.2L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 36724
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Severe
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Terminal Type: N/a
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.5
Clutch Maximum Diameter: 6.45
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: 5/16-18 hole
Clutch Type: D - severe duty & truck fan drive
Description: Fan clutches
Dia. IN: 6.45
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.25
Fan Bolt Circle MM: 82.6
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 163.8
Overall Height IN: 3.52
Overall Height MM: 89.4
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Pilot Dia. IN: 1.18
Interchange Part Number: 11136724 1580256 19189601 215111 22159 230247 273389 2775 2775TA
Replaces Part Numbers: 2779 36724 48104R 4L3Z8A616AA 4L3Z8A616BA 5L3Z8A616AA 5L3Z8A616AB
Replacement Part Numbers: 5L3Z8A616BA 5L3Z8A616BB 77293 89000205 922775 9252060 A73389
Replace Part Numbers: AU2Z8A616JA CWK922775 F65Z8A616AB F65Z8A616BB F85Z8A616AA FC150
Replaces Parts: F85Z8A616BA FC2775 FFC5775T GC372 KG2775 LF247 YB3049 YB3050 YB52
Brand Label: Fan Clutch
