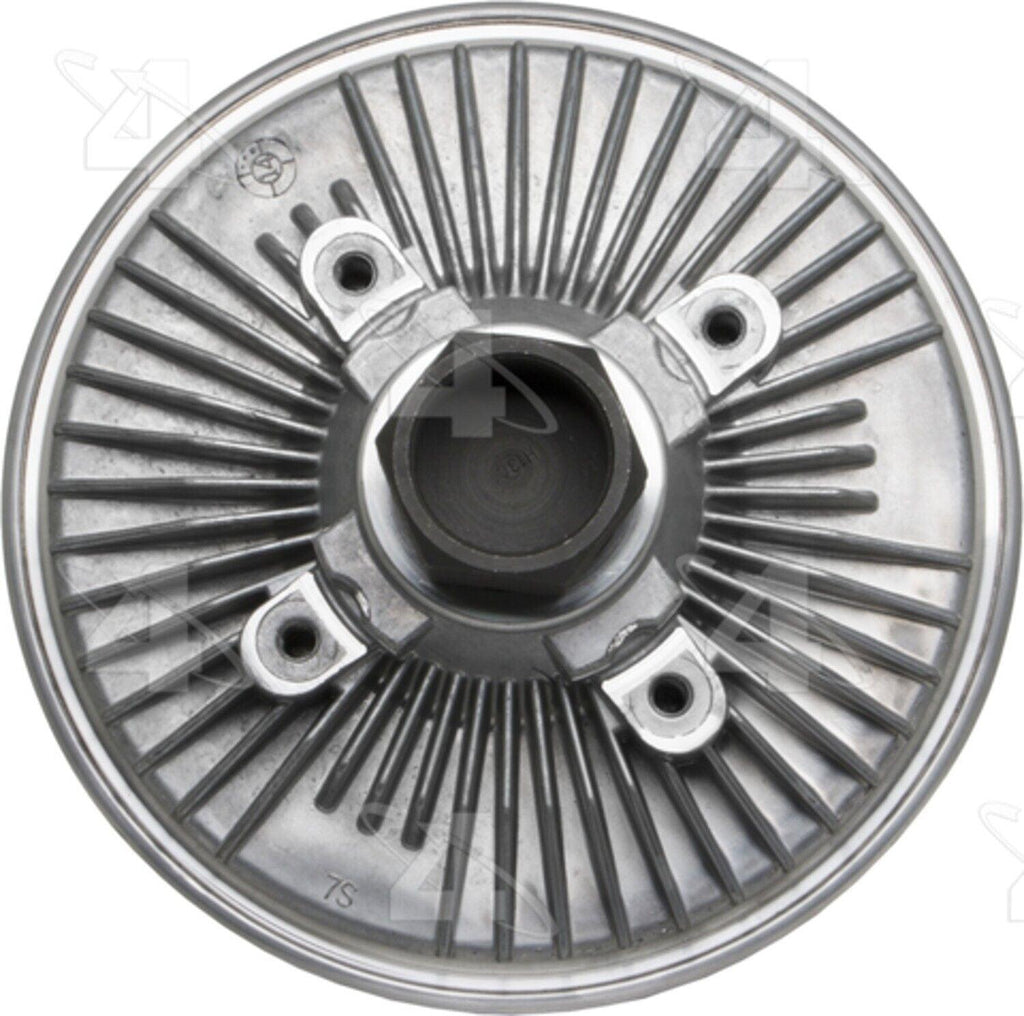

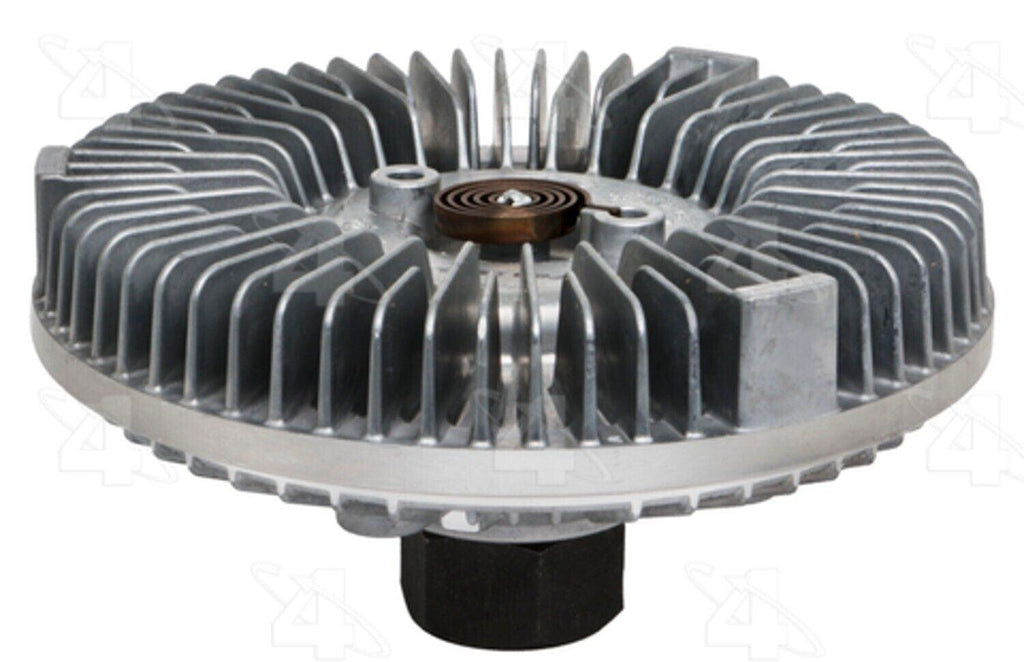

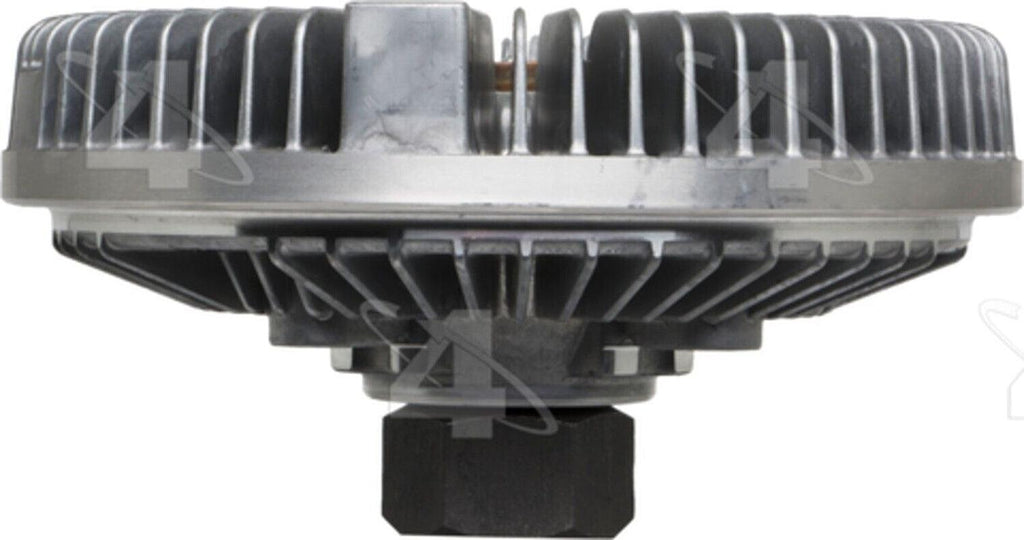

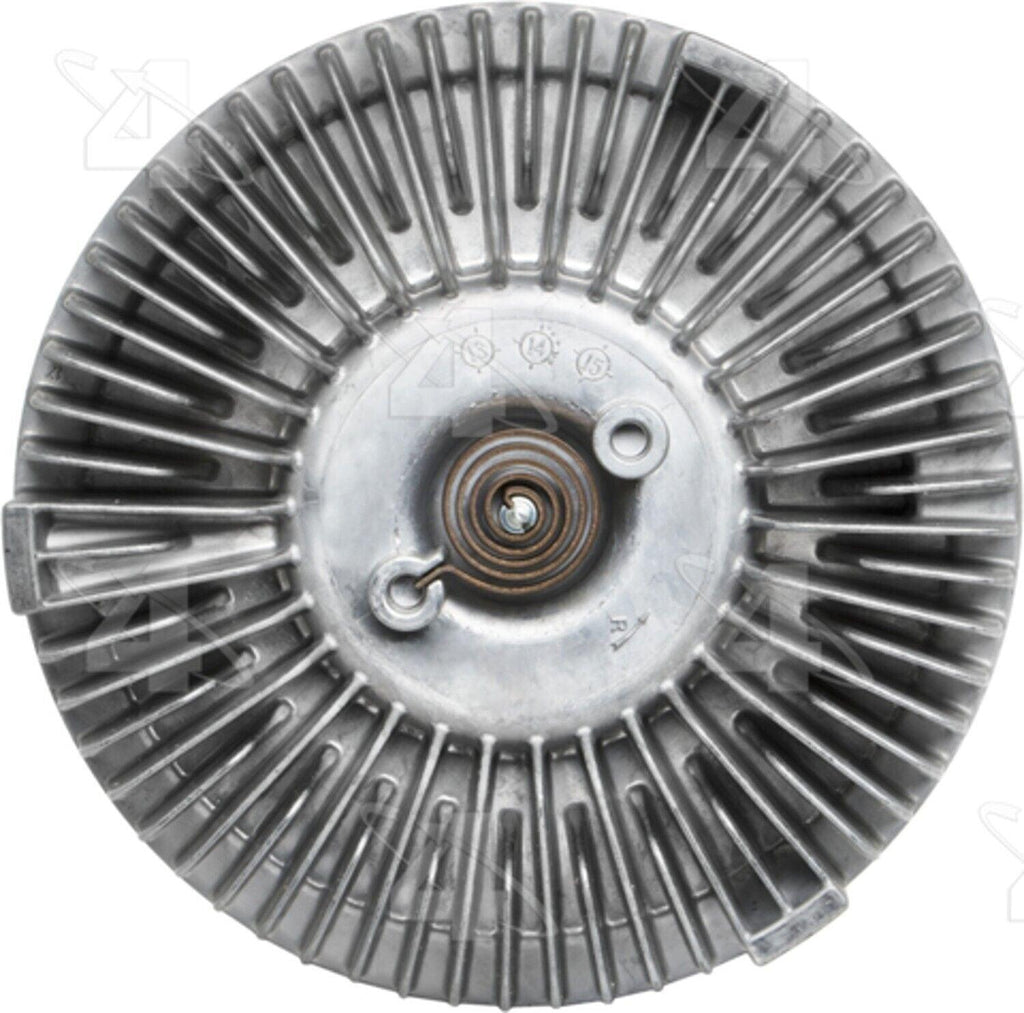

Engine Cooling Fan Clutch for Ranger, B4000, Explorer, Explorer Sport+More 36720

Fitment Chart:

Years	Make	Model	Transmission	Liters	Cylinders	Notes
2001	Ford	Explorer	4.0L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch; To 11/13/00
2001	Ford	Explorer Sport	L	Reverse Rotation; Severe Duty Thermal Fan Clutch; To 11/13/00
2001	Ford	Explorer Sport Trac	L	Reverse Rotation; Severe Duty Thermal Fan Clutch; To 11/13/00
1995-2011	Ford	Ranger	4.0L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch
2001	Mercury	Mountaineer	4.0L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch; To 11/13/00
1998-2010	Mazda	B4000	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
1998-2000	Mercury	Mountaineer	4.0L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch
1996-2000	Ford	Explorer	4.0L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch
1995	Ford	Explorer	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
1994-1997	Mazda	B4000	L	Reverse Rotation; Severe Duty Thermal Fan Clutch; w/ Super Cooling
1993	Ford	Ranger	3.0L	V6	Standard Rotation; Optional Duty Thermal Fan Clutch; w/ Std Cooling
1991-1994	Ford	Explorer	Automatic	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
1991-1994	Mazda	Navajo	L	Reverse Rotation; Optional Duty Thermal Fan Clutch
1990-1994	Ford	Ranger	4.0L	V6	Reverse Rotation; Optional Duty Thermal Fan Clutch; Severe Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 36720
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Severe
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Terminal Type: N/a
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.25
Clutch Maximum Diameter: 6.45
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: D - severe duty & truck fan drive
Description: Fan clutches
Dia. IN: 6.45
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.25
Fan Bolt Circle MM: 82.6
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 163.8
Overall Height IN: 3.27
Overall Height MM: 82.9
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Pilot Dia. IN: 1.18
Interchange Part Number: 067213 11136701 11136720 140140 1540065 1540337 1580243 19144475
Replaces Part Numbers: 19189585 19189598 1F8215150 215114 215125 22166 230230 230246
Replacement Part Numbers: 273364 273387 2793 2793TA 2794 2794TA 2911235 2911246 2911353
Replace Part Numbers: 36701 36720 402210 402230 402266 4833R 4834R 6L5Z8A616BA 7136701
Replaces Parts: 77273 77296 89000178 89000206 922793 922794 9252010 9252040 A5589
Brand Label: Fan Clutch


Important Information:

• Product Notes - If the product notes states "with" or "without", this means this will fit if your vehicle is equipped "with" or "without" that feature. For example, if it states "with fog lamps", this means your vehicle must be equipped with fog lamps. This does not mean that fog lamps are included.
