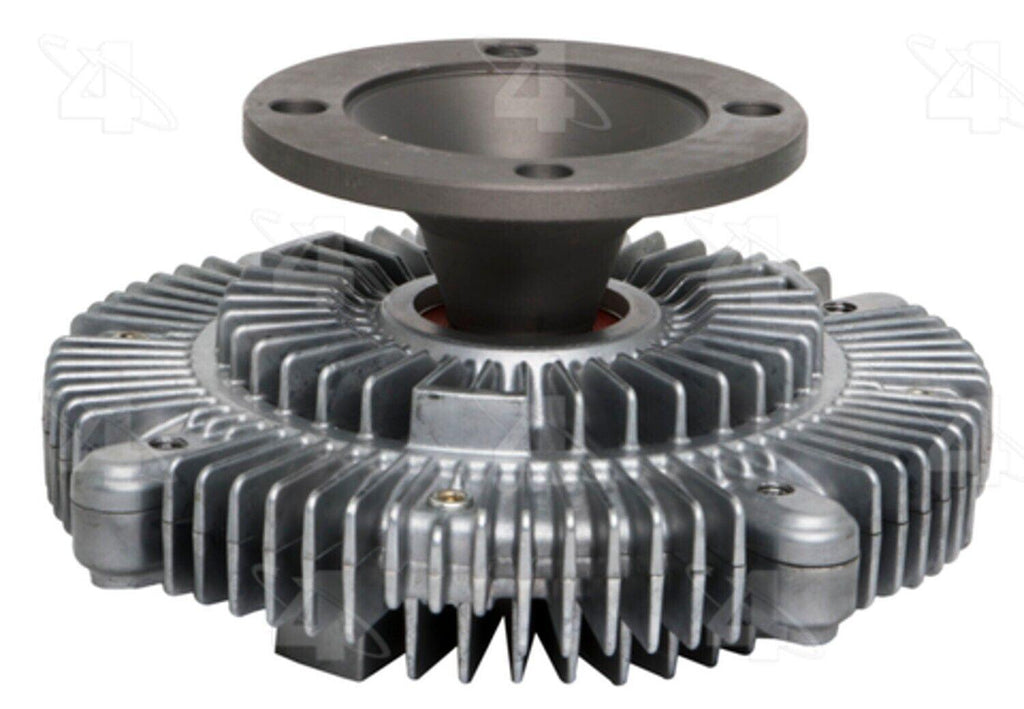

Engine Cooling Fan Clutch for LX470, Land Cruiser, Tundra, LS400 36774

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2005	Lexus	LX470	L	Standard Rotation; Standard Duty Thermal Fan Clutch; To 5/05
2005	Toyota	Land Cruiser	L	Standard Rotation; Standard Duty Thermal Fan Clutch; To 5/05
2000	Lexus	LS400	L	Reverse Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.
2000-2002	Toyota	Tundra	4.7L	V8	Standard Rotation; Standard Duty Thermal Fan Clutch
1998-2004	Lexus	LX470	L	Standard Rotation; Standard Duty Thermal Fan Clutch
1998-2004	Toyota	Land Cruiser	L	Standard Rotation; Standard Duty Thermal Fan Clutch
1997-1999	Lexus	LS400	L	Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Trailer Tow Pkg.

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 36774
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Terminal Type: N/a
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.59
Clutch Maximum Diameter: 6.65
Rotation: Rev
Mounting Type: Flange
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: A - 5" & 6" import
Description: Fan clutches
Dia. IN: 6.65
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 5.35
Fan Bolt Circle MM: 135.9
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 3.63
Mount Dia. MM: 92
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 168.9
Overall Height IN: 3.28
Overall Height MM: 83.3
Performance Rated?: Yes
Pilot Depth IN: 0.88
Pilot Depth MM: 22.4
Pilot Dia. IN: .63
Interchange Part Number: 11136774 11136775 1300142 140160 1540087 1540088 1621050050
Replaces Part Numbers: 1621050051 1621050060 1621050061 1621050080 19144863 19144864
Replacement Part Numbers: 19189631 19189632 215119 215120 22177 22183 2677 2678 271351
Replace Part Numbers: 271352 2911319 36774 36775 922677 922678 9702020 9702040 A71351
Replaces Parts: A71352 CWK922677 CWK922678 FCT021 FFC5677T FFC5678T KG2277
Brand Label: Fan Clutch


Important Information:

• Product Notes - If the product notes states "with" or "without", this means this will fit if your vehicle is equipped "with" or "without" that feature. For example, if it states "with fog lamps", this means your vehicle must be equipped with fog lamps. This does not mean that fog lamps are included.
