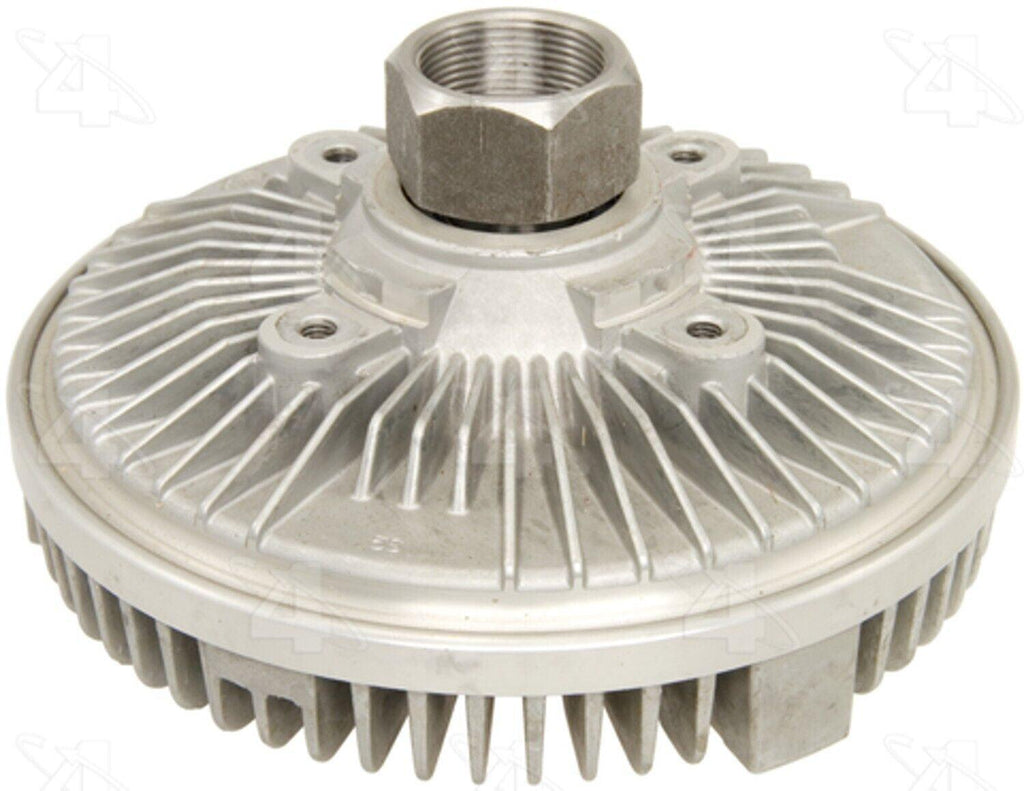

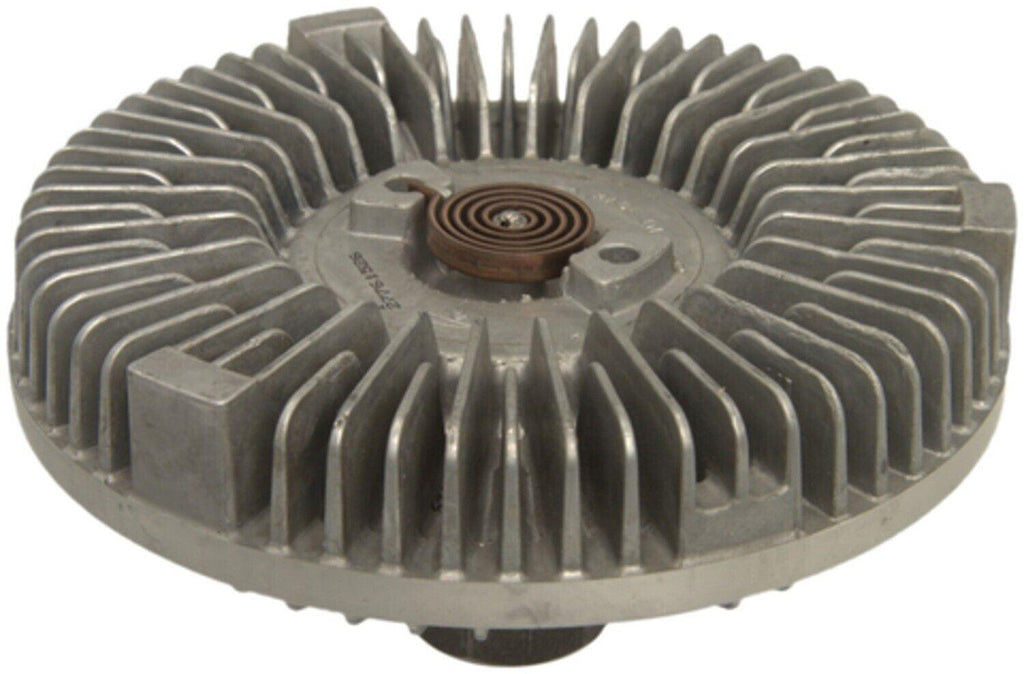

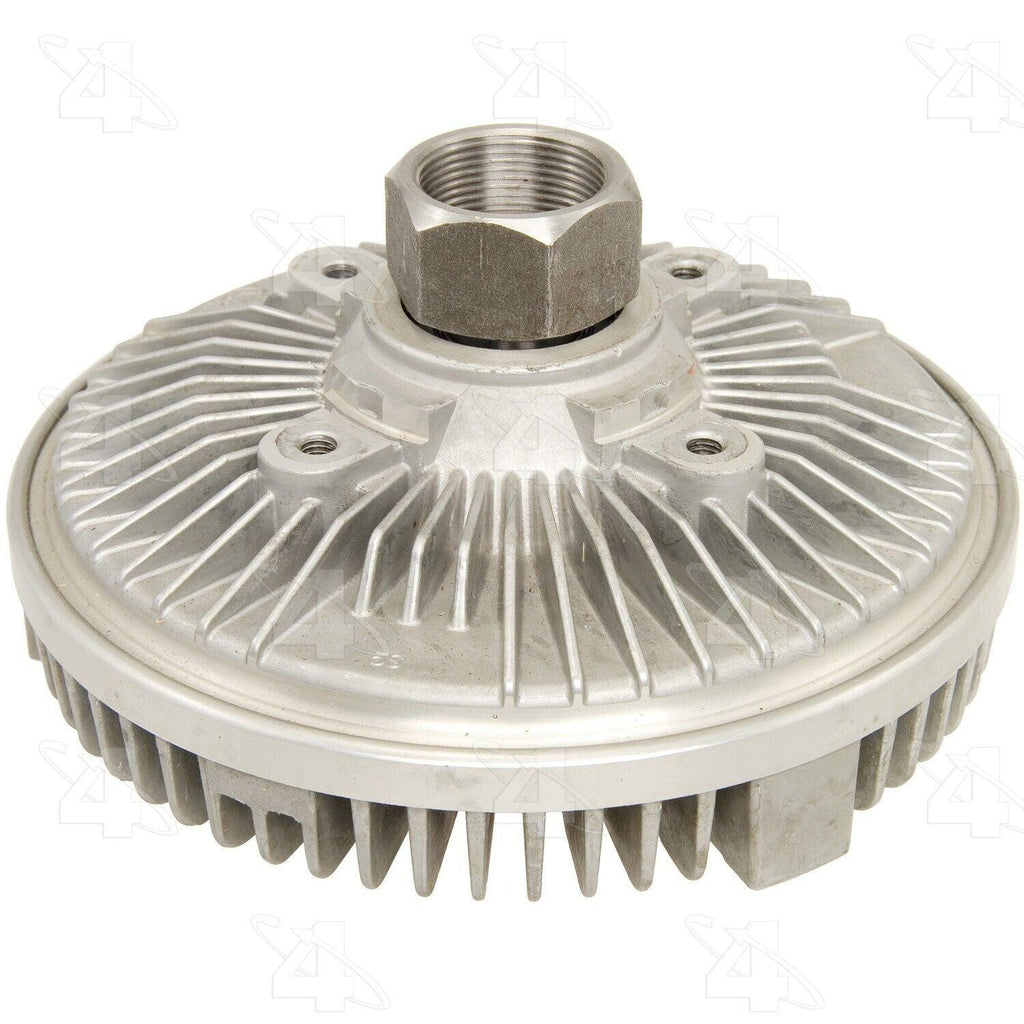

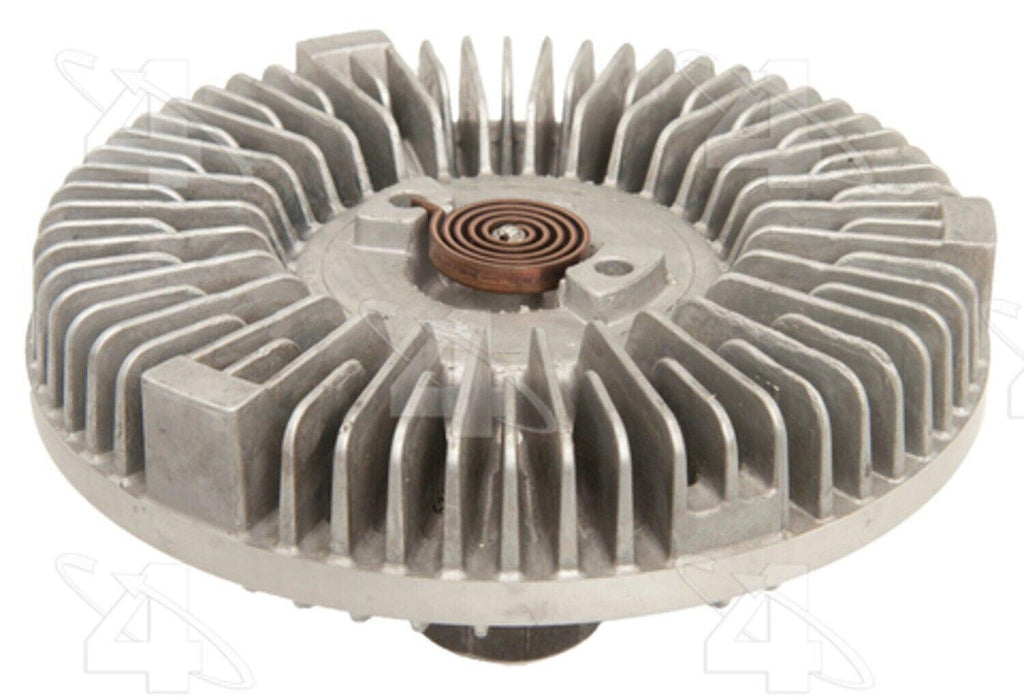

Engine Cooling Fan Clutch for Explorer, Explorer Sport Trac, Aviator+More 36782

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2002-2003	Ford	Explorer Sport	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
2003-2005	Lincoln	Aviator	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2005	Ford	Explorer	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2005	Ford	Explorer Sport Trac	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
2002-2005	Mercury	Mountaineer	L	Reverse Rotation; Severe Duty Thermal Fan Clutch
2001	Ford	Explorer	4.0L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch; From 11/13/00
2001	Ford	Explorer Sport	L	Reverse Rotation; Severe Duty Thermal Fan Clutch; From 11/13/00
2001	Ford	Explorer Sport Trac	L	Reverse Rotation; Severe Duty Thermal Fan Clutch; From 11/13/00
2001	Mercury	Mountaineer	4.0L	V6	Reverse Rotation; Severe Duty Thermal Fan Clutch; From 11/13/00

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 36782
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Severe
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Terminal Type: N/a
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.25
Clutch Maximum Diameter: 6.45
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: D - severe duty & truck fan drive
Description: Fan clutches
Dia. IN: 6.45
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.25
Fan Bolt Circle MM: 82.6
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 163.8
Overall Height IN: 3.27
Overall Height MM: 82.9
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Pilot Dia. IN: 1.18
Interchange Part Number: 11136782 140158 1540083 19144711 19189636 215124 22139 271358
Replaces Part Numbers: 2776 2911350 2C5Z8A616BA 2C5Z8A616BB 36782 4L248A616AA 922115
Replacement Part Numbers: 4L2Z8A616AA 9252130 A71358 AU2Z8A616F CWK922115 FFC5776T KG2776
Replace Part Numbers: YB3152 YB623 YB631
Brand Label: Fan Clutch
