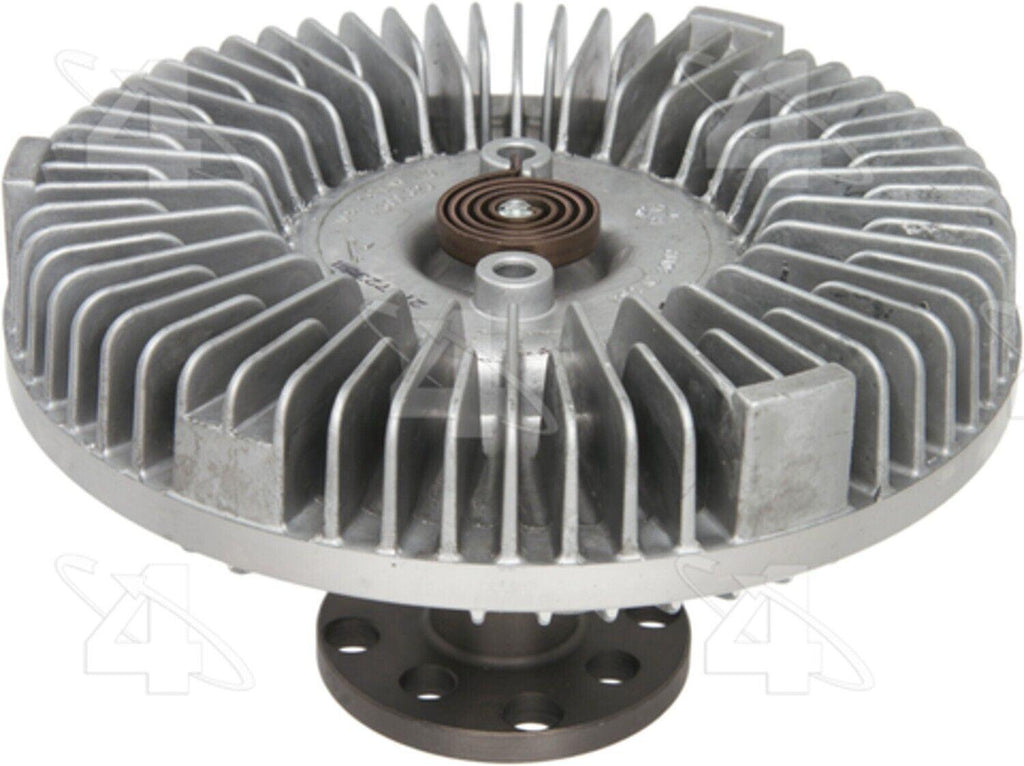

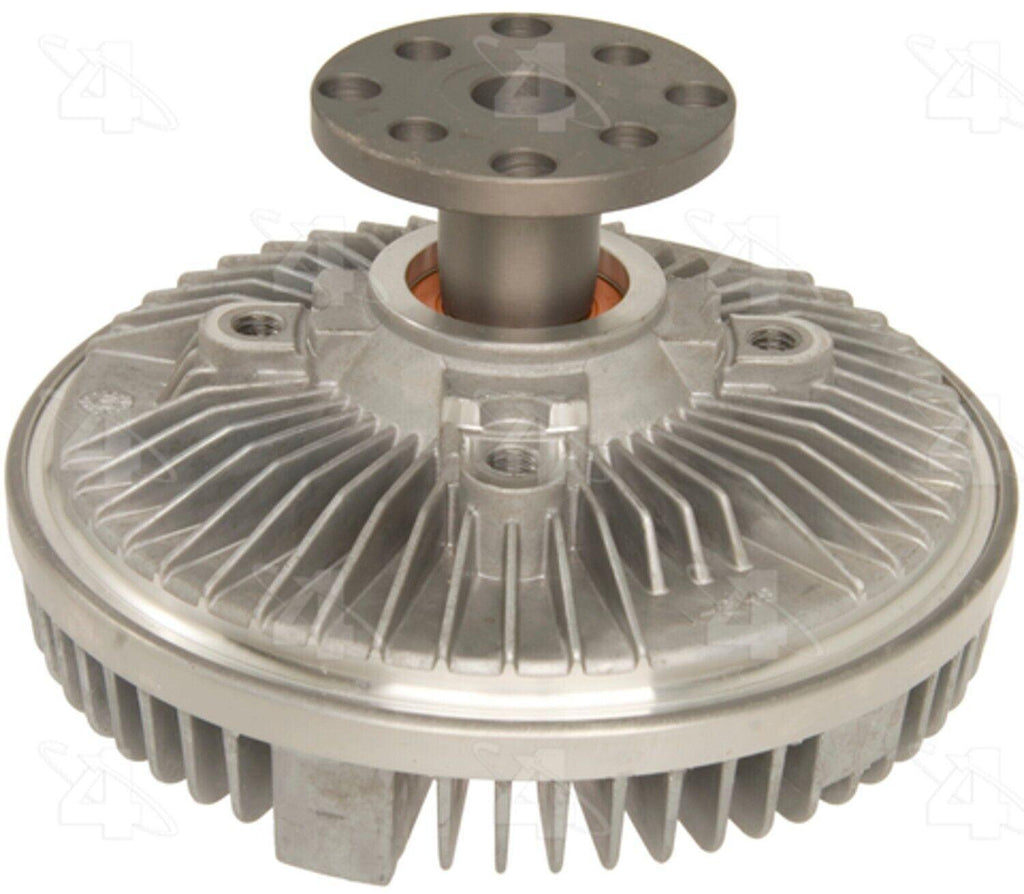

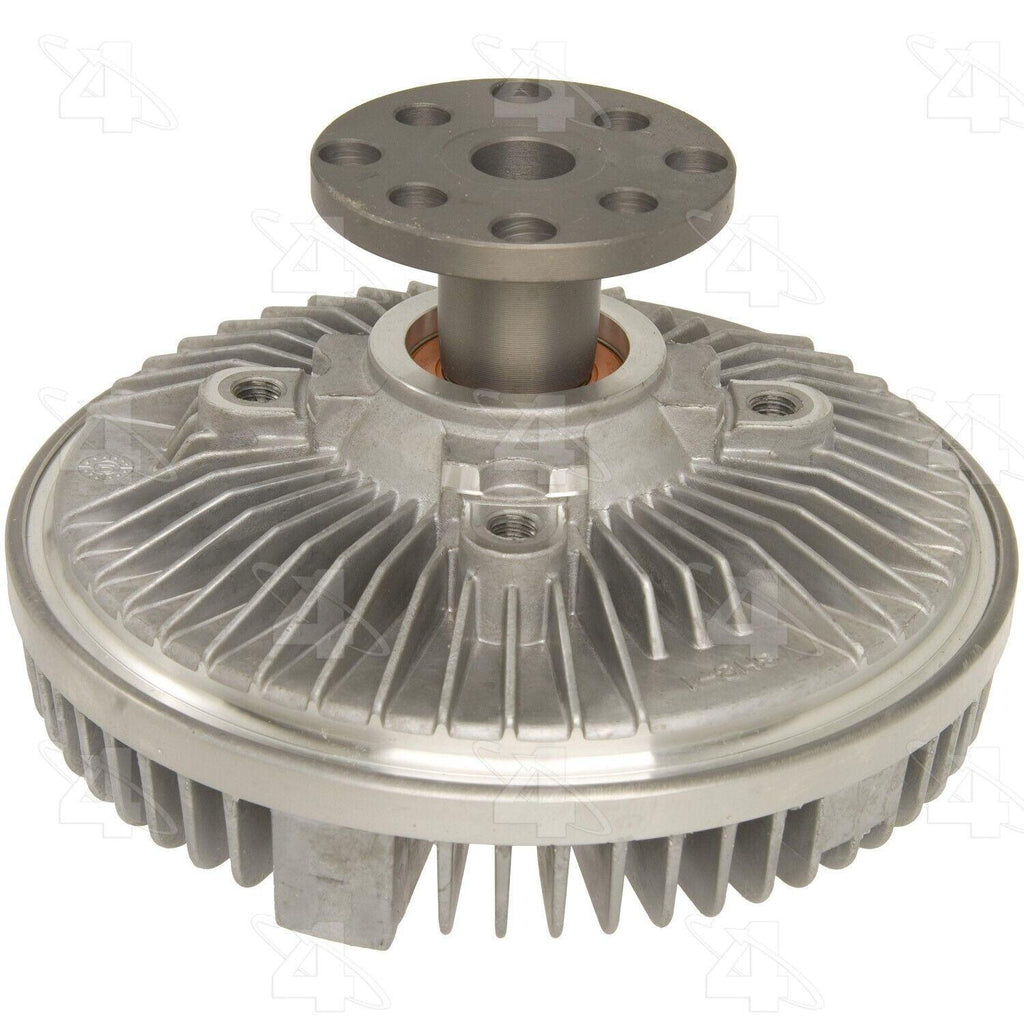

Engine Cooling Fan Clutch for Commercial Chassis, Roadmaster+More 2797

Fitment Chart:

Years	Make	Model	Submodel	Body Type	Liters	Cylinders	Notes
1995-1996	Cadillac	Commercial Chassis	Brougham	L	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Cooling
1968-1996	Cadillac	Fleetwood	Base	L	Standard Rotation; Severe Duty Thermal Fan Clutch
1995-1996	Cadillac	Fleetwood	Brougham	L	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Cooling
1994-1996	Buick	Commercial Chassis	Cab & Chassis	5.7L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch
1994-1996	Buick	Roadmaster	Sedan	5.7L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch
1994-1996	Buick	Roadmaster	Wagon	5.7L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch
1994-1996	Cadillac	Commercial Chassis	Base	L	Standard Rotation; Severe Duty Thermal Fan Clutch
1994	Cadillac	Commercial Chassis	Brougham	L	Standard Rotation; Severe Duty Thermal Fan Clutch
1994	Cadillac	Fleetwood	L	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Cooling
1994-1996	Chevrolet	Caprice	L	Standard Rotation; Severe Duty Thermal Fan Clutch
1994	Chevrolet	Commercial Chassis	L	Standard Rotation; Severe Duty Thermal Fan Clutch
1994-1996	Chevrolet	Impala	L	Standard Rotation; Severe Duty Thermal Fan Clutch
1992-1993	Dodge	B250	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1992-1993	Dodge	B350	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1991	Chevrolet	C2500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1991	Chevrolet	K2500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1991	GMC	C2500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1991	GMC	K2500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1988-1991	Chevrolet	C1500	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1990-1991	Chevrolet	C1500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1988-1991	Chevrolet	Suburban	L	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1990	Chevrolet	V2500 Suburban	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1990-1991	Dodge	D150	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1990-1992	Dodge	D250	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1990-1992	Dodge	D350	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1990-1992	Dodge	Ramcharger	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1990-1991	Dodge	W150	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1990-1992	Dodge	W250	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1990-1992	Dodge	W350	5.9L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ Heavy Duty Tow Pkg.
1988-1991	Chevrolet	Blazer	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989-1991	Chevrolet	R1500 Suburban	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989	Chevrolet	R2500	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989	Chevrolet	R2500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1989-1991	Chevrolet	R2500 Suburban	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989-1991	Chevrolet	R2500 Suburban	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1989-1991	Chevrolet	R3500	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989-1991	Chevrolet	R3500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1989-1991	Chevrolet	V1500 Suburban	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989-1991	Chevrolet	V2500 Suburban	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989-1991	Chevrolet	V3500	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1989-1991	Chevrolet	V3500	7.4L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; Fan Mounting Holes are 5/16"
1988	Chevrolet	C1500	5.0L	V8	Standard Rotation; Optional Duty Thermal Fan Clutch; w/ 3.42 Or Lower Rear Axle Ratio, Fan Mounting Holes are 5/16"; w/o AC
1988	Chevrolet	C1500	5.0L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ 3.73 Or Higher Rear Axle Ratio, Fan Mounting Holes are 5/16"
1988	Chevrolet	C1500	4.3L	V6	Standard Rotation; Optional Duty Thermal Fan Clutch; w/ 3.42 Or Lower Rear Axle Ratio, Fan Mounting Holes are 5/16"; w/ AC
1988	Chevrolet	C1500	4.3L	V6	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ 3.73 Or Higher Rear Axle Ratio, Fan Mounting Holes are 5/16"
1988-1991	Chevrolet	C2500	5.7L	V8	Standard Rotation; Non-Thermal Fan Clutch; Optional Non-Thermal Fan Clutch; w/o AC
1988	Chevrolet	C2500	5.0L	V8	Standard Rotation; Optional Duty Thermal Fan Clutch; w/ 3.42 Or Lower Rear Axle Ratio, Fan Mounting Holes are 5/16"; w/o AC
1988	Chevrolet	C2500	5.0L	V8	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ 3.73 Or Higher Rear Axle Ratio, Fan Mounting Holes are 5/16"
1988	Chevrolet	C2500	4.3L	V6	Standard Rotation; Optional Duty Thermal Fan Clutch; w/ 3.42 Or Lower Rear Axle Ratio, Fan Mounting Holes are 5/16"; w/ AC
1988	Chevrolet	C2500	4.3L	V6	Standard Rotation; Severe Duty Thermal Fan Clutch; w/ 3.73 Or Higher Rear Axle Ratio, Fan Mounting Holes are 5/16"

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2797
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Severe
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.63
Clutch Maximum Diameter: 6.45
Rotation: Std
Mounting Type: Flange
Bolt Quantity: 4
Bolt Thread: 5/16-18 hole
Clutch Type: D - severe duty & truck fan drive
Description: Fan clutches
Dia. IN: 6.45
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.25
Fan Bolt Circle MM: 82.6
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 2.58
Mount Dia. MM: 66
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 163.8
Overall Height IN: 3.66
Overall Height MM: 92.9
Performance Rated?: Yes
Pilot Depth IN: 0.63
Pilot Depth MM: 16
Pilot Dia. IN: 0.63
Style: Severe duty
Interchange Part Number: 067103 10014251 10197605 11136704 12529772 12529774 14006728
Replaces Part Numbers: 14006729 14006730 14007832 14007833 14010296 140129 14015569 2797
Replacement Part Numbers: 14020668 154226 154298 154320 154415 154416 154434 154436 154437
Replace Part Numbers: 154445 154487 154545 154546 154549 154593 154594 154606 154644
Replaces Parts: 154646 154949 15625457 15625458 15629472 15629473 15629474 156432
Brand Label: Fan Clutch
