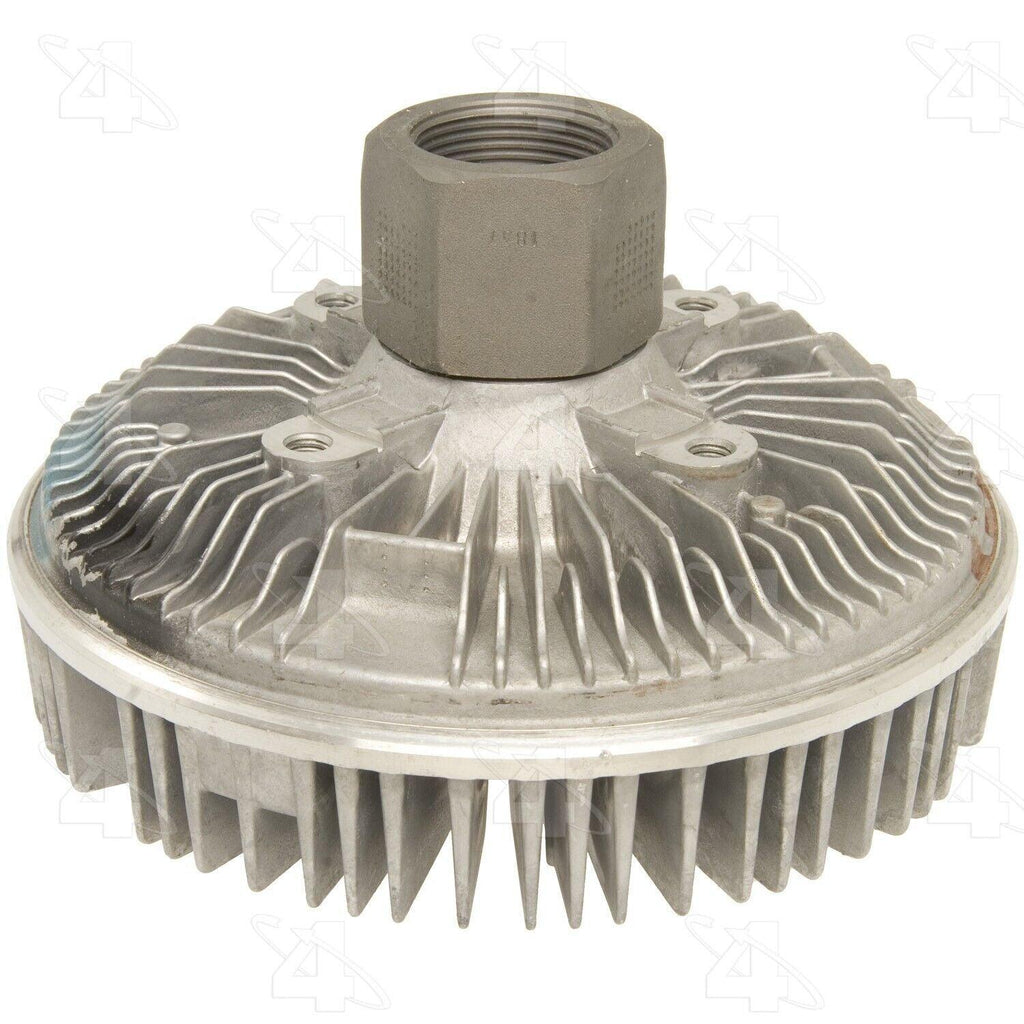

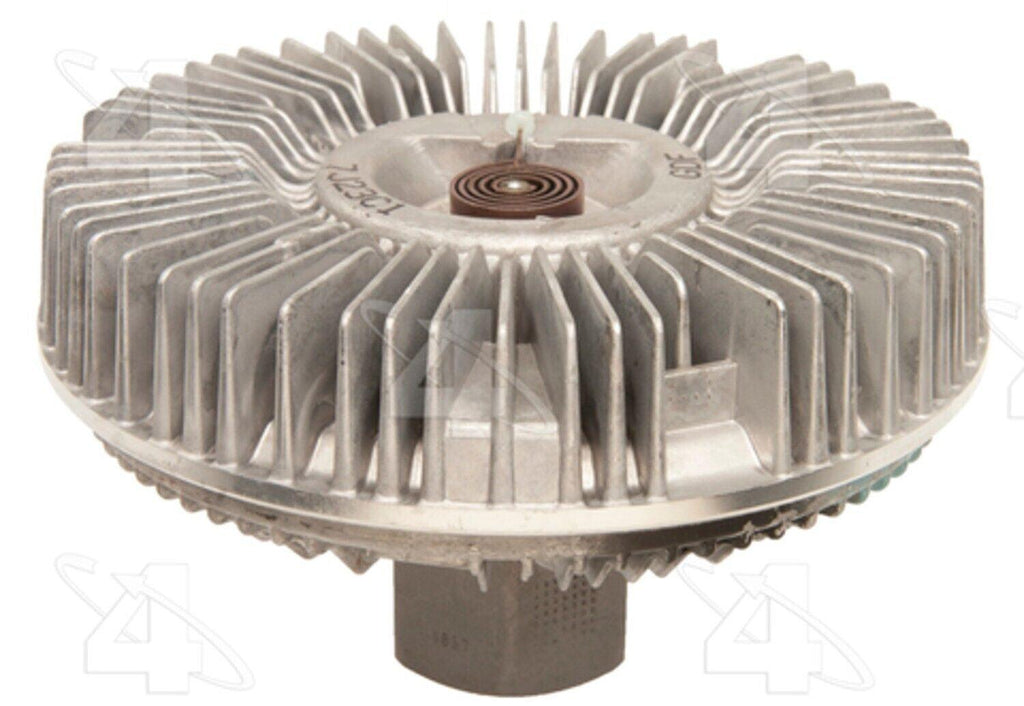

Engine Cooling Fan Clutch for C2500, C3500, K2500, K3500+More 2840

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
2000	Chevrolet	C2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2000	Chevrolet	C3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2000	Chevrolet	K2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2000	Chevrolet	K3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2000	GMC	C2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2000	GMC	C3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2000	GMC	K2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
2000	GMC	K3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch
1999	Chevrolet	C1500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	C2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	C2500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	C3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	K1500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	K2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	K2500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	K3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	Chevrolet	Tahoe	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	C1500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	C2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	C2500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	C3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	K1500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	K2500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	K2500 Suburban	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type
1999	GMC	K3500	6.5L	V8	Reverse Rotation; Severe Duty Thermal Fan Clutch; Marked GDF; Threaded Type

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Hayden
Manufacturer Part Number: 2840
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Material: Aluminum
Use Type: Severe
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 1.75
Clutch Maximum Diameter: 7.4
Rotation: Rev
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M8 x 1.25 hole
Clutch Type: D - severe duty & truck fan drive
Description: Fan clutches
Dia. IN: 7.4
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.81
Fan Bolt Circle MM: 96.8
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.86
Mount Dia. MM: 47
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 188
Overall Height IN: 4.27
Overall Height MM: 108.3
Performance Rated?: Yes
Pilot Depth IN: 0.78
Pilot Depth MM: 20.1
Pilot Dia. IN: 1.42
Pilot Dia. MM: 36
Interchange Part Number: 11136755 15029405 154691 216014 22614 271340 2840 2840TA 36755
Replaces Part Numbers: 4808R 77315 922840 9302150 A71340 CWK922840 FC167 FFC5840T KG2840
Brand Label: Fan Clutch
