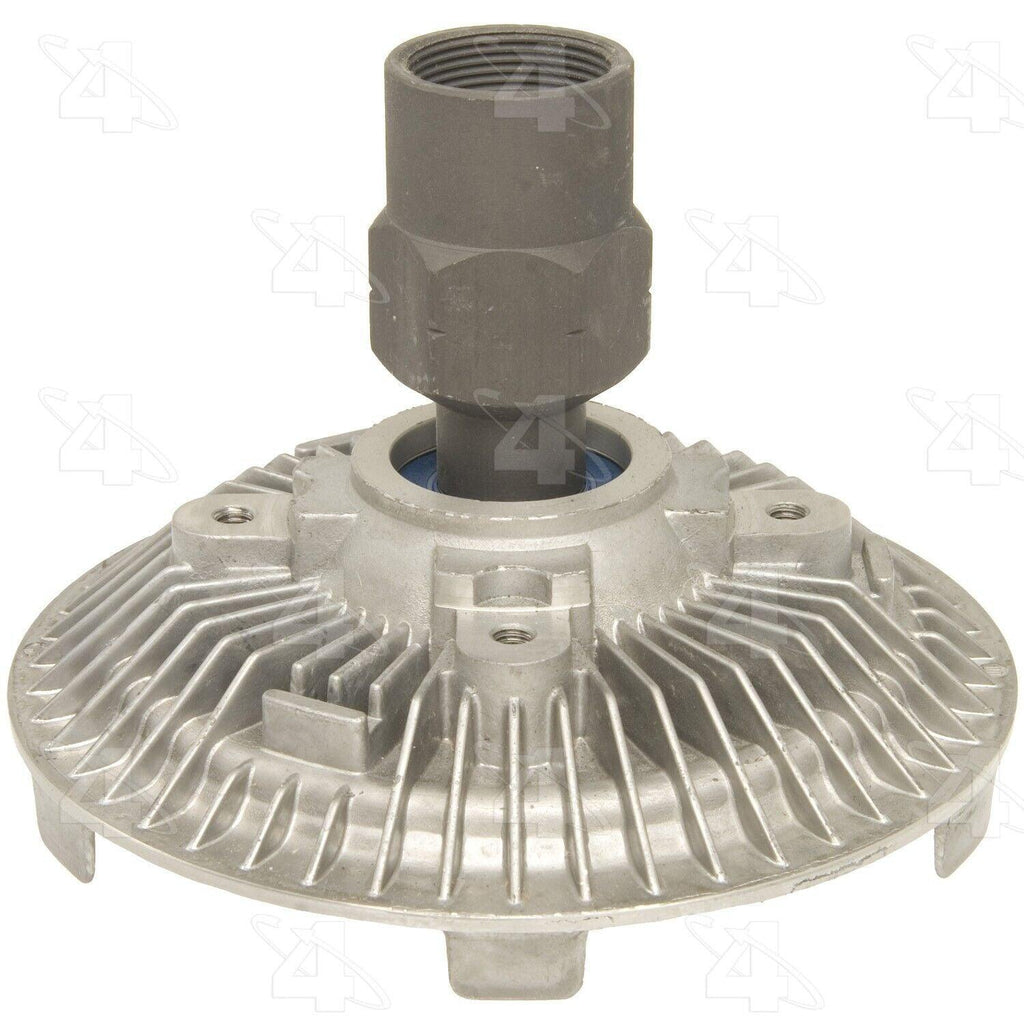

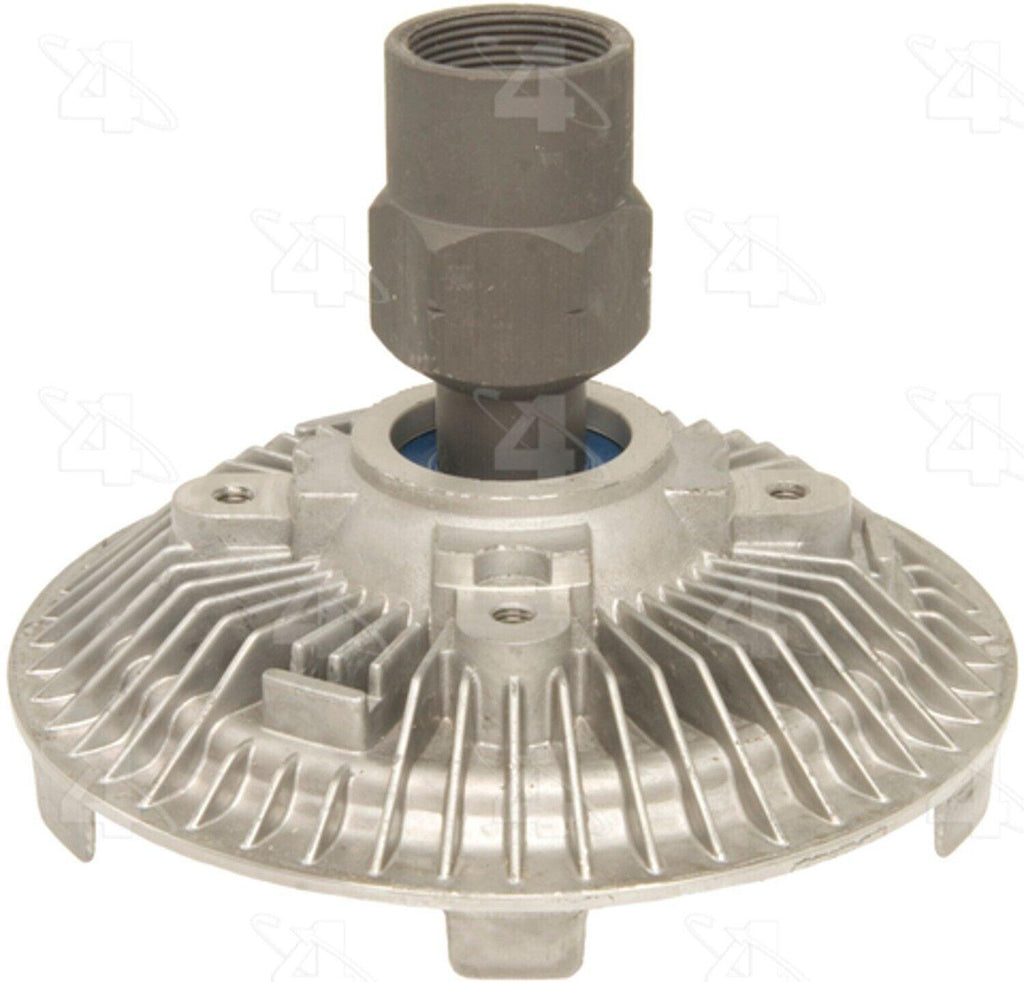

Engine Cooling Fan Clutch for B3000, Aerostar, F-100 Ranger, Ranger 36972

Fitment Chart:

Years	Make	Model	Liters	Cylinders	Notes
1994-2008	Mazda	B3000	L	Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Std Cooling
1996-1997	Ford	F-100 Ranger	3.0L	V6	Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Std Cooling
1991-1997	Ford	Ranger	3.0L	V6	Standard Rotation; Standard Duty Thermal Fan Clutch; w/ Std Cooling
1988-1989	Ford	Aerostar	L	Standard Rotation; Standard Duty Thermal Fan Clutch
1986-1997	Ford	Aerostar	3.0L	V6	Standard Rotation; Standard Duty Thermal Fan Clutch

Specifications:

Part Category: Engine Cooling Fan Clutch
Brand: Four Seasons
Manufacturer Part Number: 36972
Label: Fan Clutch
Product Type: Factory Replacement
Type: Engine Cooling Fan Clutch
Number of Pieces: 1
Material: Aluminum
Use Type: Standard
Color: Raw aluminum in color
Bolt Hole Quantity: 4
Mounting Hole Quantity: 4
Distance From Clutch To Mounting Flange: 2.76
Distance From Clutch To Mounting Flange: 2.765625
Clutch Maximum Diameter: 5.99
Rotation: Std
Mounting Type: Hex
Bolt Quantity: 4
Bolt Thread: M6 x 1.0 hole
Clutch Type: B - non-thermal & std thermal
Description: Fan clutches
Dia. IN: 5.99
Electronic Clutch?: Non electronic
Fan Bolt Circle IN: 3.25
Fan Bolt Circle MM: 82.6
Meets / Exceeds OEM?: Yes
Mount Dia. IN: 1.44
Mount Dia. MM: 36
Mounting Hardware?: Not included
New or Reman: New
Overall Dia. MM: 152.1
Overall Height IN: 4.34
Overall Height MM: 110.5
Performance Rated?: Yes
Pilot Depth IN: 0.7
Pilot Depth MM: 17.8
Pilot Dia. IN: 1.18
Interchange Part Number: 067011 11136972V 115064 140028 1580261 19189691 21064 215064
Replaces Part Numbers: 22064 22709 230211 2618 2618TA 2705P 273362 36972 402211 402618
Replacement Part Numbers: 47217 4864 5064TA 55564 5593 7136972 77217 773362 7782 89000146
Replace Part Numbers: 922618 9252250 A5560 A73359 CWK922618 E69Z8A616D E69Z8A616E FC67
Replaces Parts: E99Z8A616A E99Z8A616B F1TZ8A616A F1TZ8A616B F1TZ8A616H F1TZ8A616J
Brand Label: Fan Clutch
