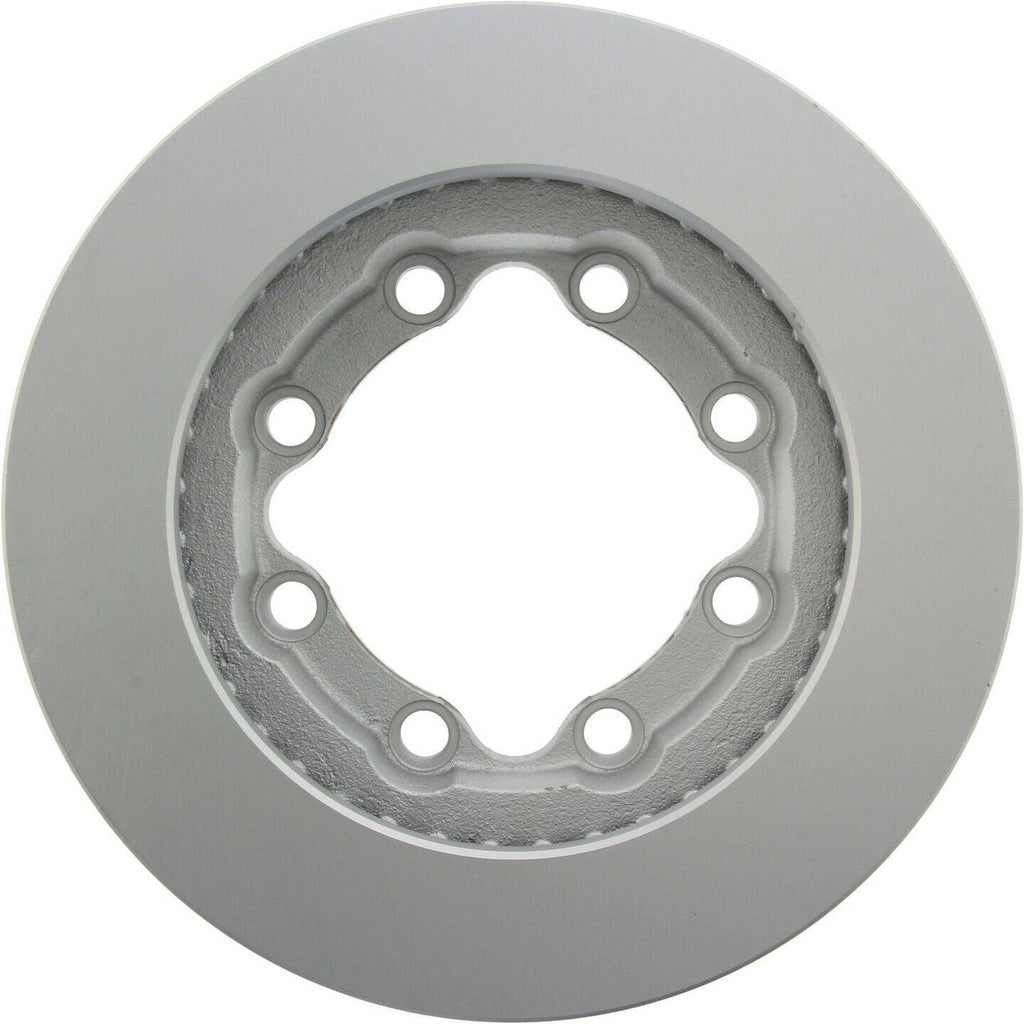

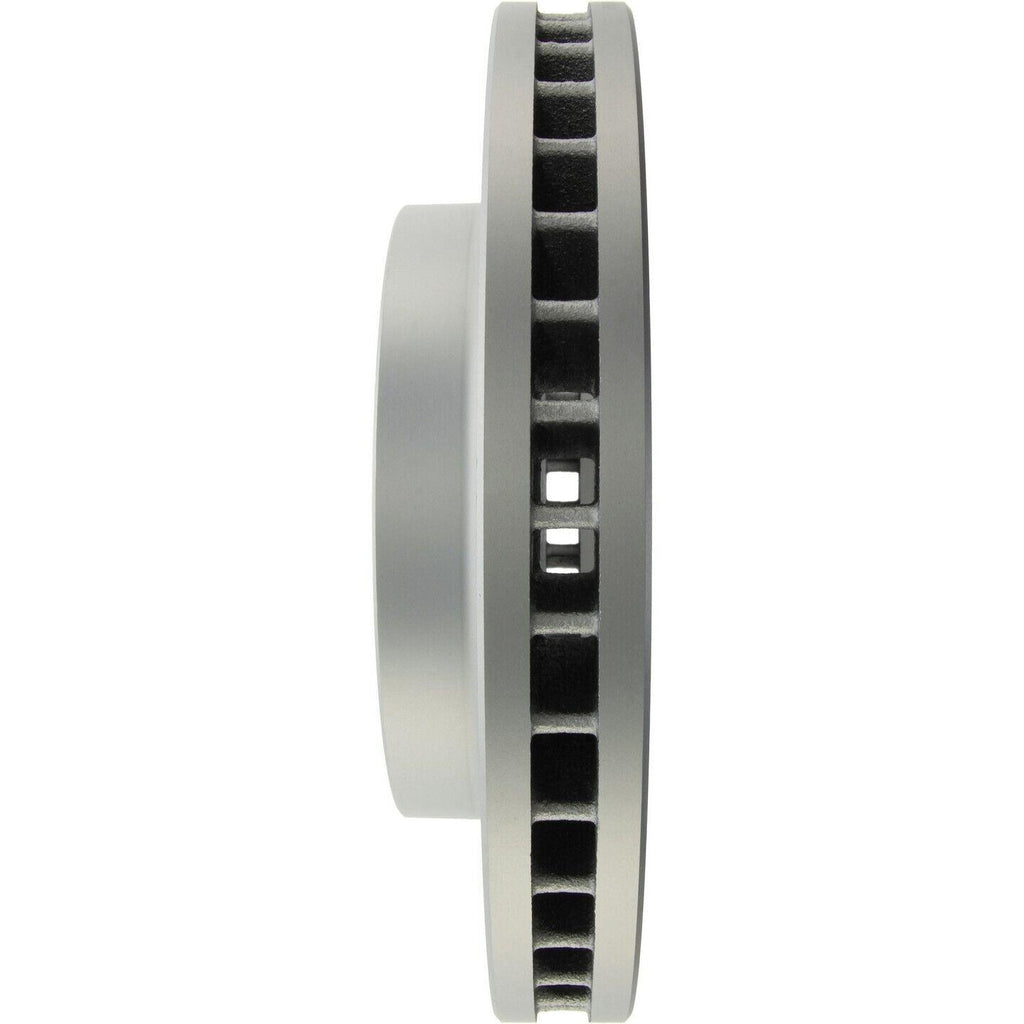

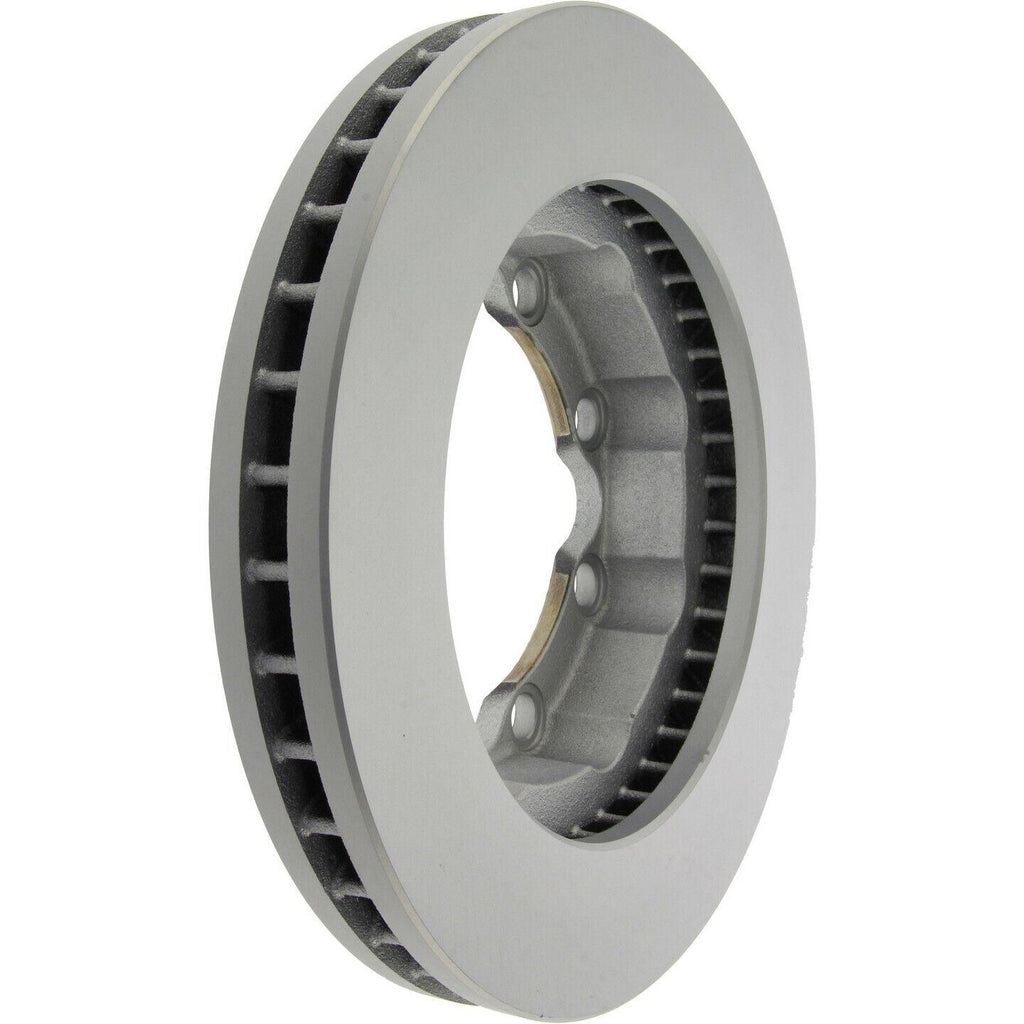

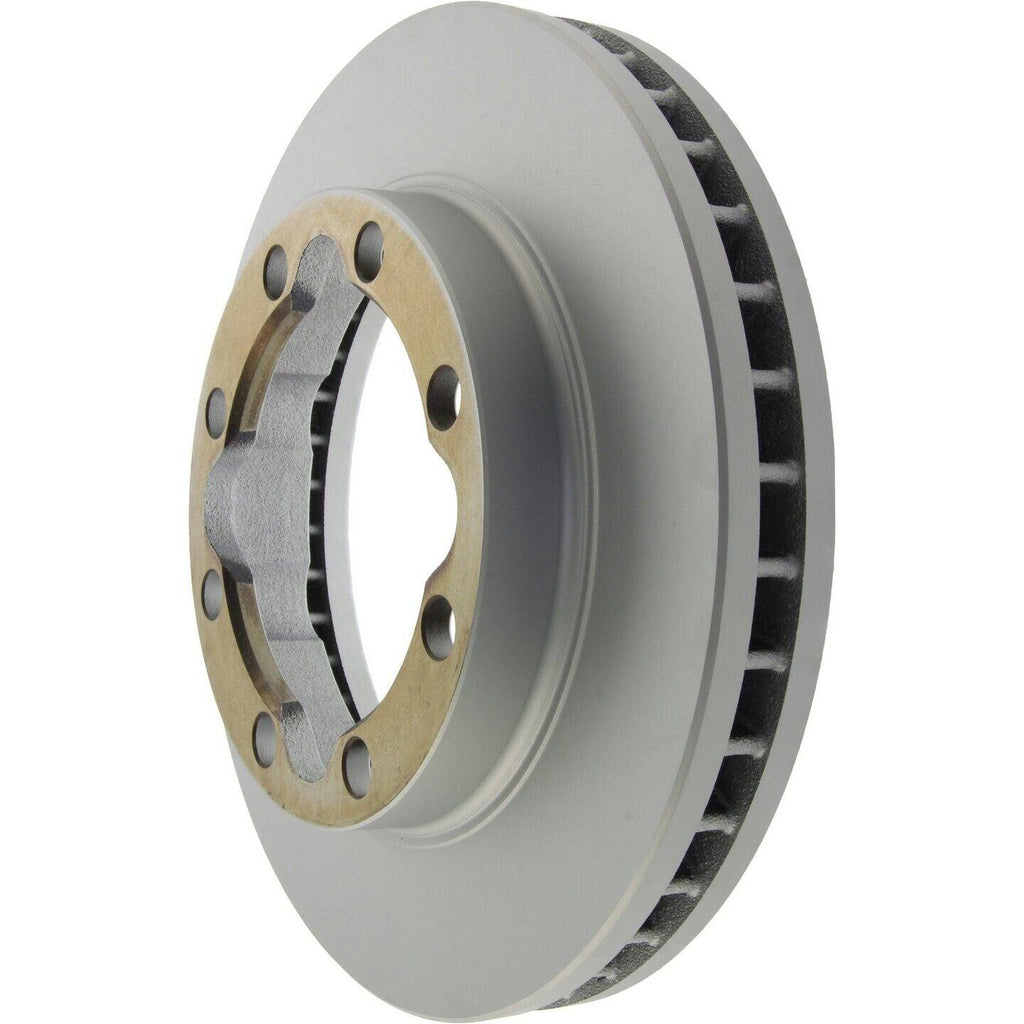

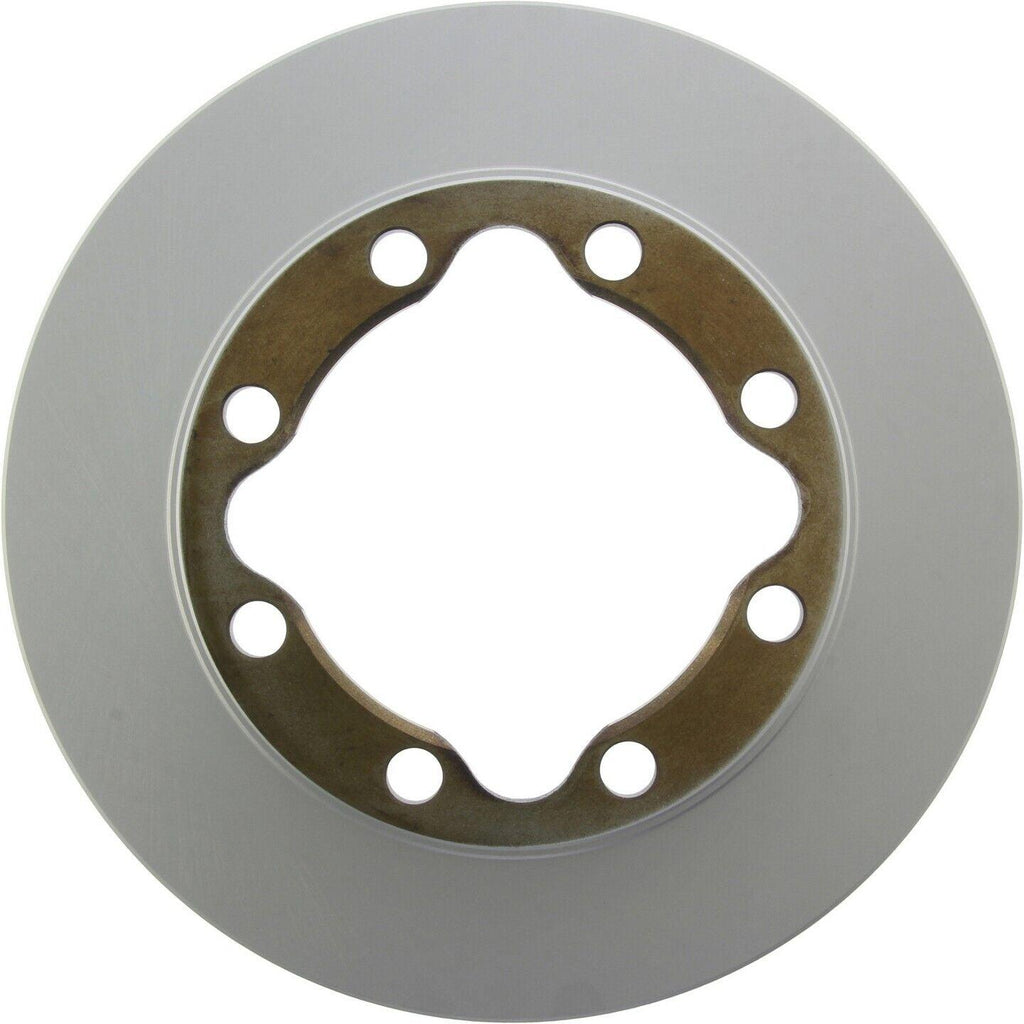

Centric Front Disc Brake Rotor for K3500, Ram 2500, Ram 3500 (320.66026F)

Fitment Chart:

Years	Make	Model	Body Type	Drive Type	Notes
1998-1999	Dodge	Ram 2500	4WD
1997-2000	Chevrolet	K3500	Cab & Chassis	317mm Front Disc; DRW
1997-2000	Chevrolet	K3500	Crew Cab Pickup	317mm Front Disc; DRW
1997-2000	Chevrolet	K3500	Extended Cab Pickup	317mm Front Disc; DRW
1997-2000	Chevrolet	K3500	Standard Cab Pickup	317mm Front Disc; DRW
1997	Dodge	Ram 2500	4WD	8800lb GVW; Dana 60 FA
1992-1996	Chevrolet	K3500	317mm dia; DRW
1994-1996	Dodge	Ram 2500	4WD	Dana 60 FA
1994-1999	Dodge	Ram 3500	4WD
1994-1999	Dodge	Ram 3500	RWD	Solid Axle
1992-1996	GMC	K3500	317mm dia; DRW

Specifications:

Part Category: Disc Brake Rotor
Brand: Centric
Manufacturer Part Number: 320.66026F
Vehicle Position: Front
Placement on Vehicle: Front
Label: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating
Product Type: Factory Replacement
Type: Disc Brake Rotor
Number of Pieces: 1
Discard Thickness: 1.465
Discard Thickness: 37.210
Nominal Thickness: 1.539
Nominal Thickness: 39.100
Disc Finish: Fully coated
Hat Finish: Coated
Overall Height: 2.756
Overall Height: 70.000
Outside Diameter: 12.492
Outside Diameter: 317.300
Mounting Bolt Hole Quantity: 8
ABS Tone Ring Included: No
Surface Type: Smooth
Solid Or Vented Type Rotor: Vented
Bearings Included: No
Center Hole Diameter: 137.400
Center Hole Diameter: 5.409
Mounting Bolt Hole Circle Diameter: 165.100
Mounting Bolt Hole Circle Diameter: 6.500
Mounting Bolt Hole Diameter: 0.646
Mounting Bolt Hole Diameter: 16.400
Disc Mounting [cntrc]: Behind the hub
Misc Holes [cntrc]: 0
Vane Style [cntrc]: Straight
Weight [cntrc] kgs: 11.140
Weight [cntrc] lbs: 24.500
